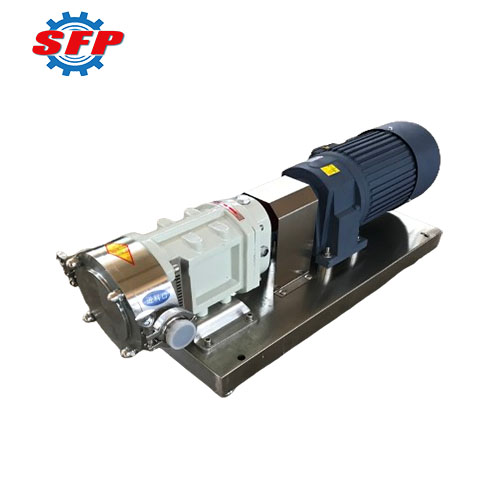

3RP Series Daily Chemical Lobe Pump
3RP Series Daily Chemical Lobe Pump
3RP Shampoo Lobe Pumps
3RP series daily chemicals lobe pump can be used in the chemical industry for conveying media such as toothpaste, skin creams, laundry detergent slurries, etc. Also their reliable low shear flow characteristics make them ideal for conveying high viscosity, high solids and high temperature liquid products. The temperature range of the conveyed medium is from -30°C to + 180°C and the viscosity range is from 30 CST to 100,000 CST. It is characterised by excellent self-priming, high efficiency and long service life.
Flow Rate: ≤60 m3/h
Motor Power: 0.75-22kw
Discharge Pressure: 0-1.2Mpa
Product Description
Summarize:

3RP series high viscosity lobe pump is a volumetric pump with the advantages of good self-priming performance, high efficiency and long service life. It is suitable for conveying suspensions containing soft solid particles, corrosive media and suspensions, and the parts in contact with the media are made of stainless steel, and the rotational speed can be adjusted according to the physical properties of the conveying medium. This machine is suitable for many industries, food industry, pharmac industry, and construction industry and many other industrie. The machine consists of two synchronized rotors/cams, which are driven by a pair of timing gears in a gearbox. Driven by the main and secondary shafts, the two rotors rotate in opposite directions, causing the pump volume to change, resulting in a higher vacuum and discharge pressure.
Application:
1. Dairy Products: Yoghurt, cream, ice cream, cheese and whey.
2. Beverages: Beer, wort, yeast, soft drinks, fruit juice concentrates, fruit drinks.
3. Foodstuffs: ketchup, vegetable pastes, sauces, sweeteners, yeast pastes, salads, meat emulsions, cooking oils.
4. Confectionery: Syrups, cream fillings, purees, fruit fillings, puddings, jams, jellies, chocolates.
5. Cosmetics: Creams and lotions, hairsprays, hair dyes, essential oils.
6. Pharmaceuticals: Pills, extracts, emulsions, creams.
7. Chemicals: Fats, solvents, resins and polymers, dyes.
Feature:
1. There is a certain gap between rotor and  rotor, no friction coefficient,so pump have a long service life time.
2. It is easy to install and disassemble,and it is convenient to maintain, clean. There is less wearing parts.
3. High efficiency and energy saving, stable transportation, low failure rate, no leak sealing and low noise.
4. The viscosity of the transportable medium is ≤2000000 cp, and the pump can transfer slurry containing 70% solids.
5. It can transport gas, liquid and solid three-phase mixture materials.
6. With VFD, the flow can be adjusted at will, and the pump can be used as a general metering pump.
7. If need,we can do the pump with heating jacket.
The core components and sealing devices of the pump are designed according to different characteristics of different fluid, using different materials and sealing types, which improves the professional conveying performance of the product.
Advantage:
1. Since the pump's lobes do not come into contact with each other, lobe pumps can move solids suspended in slurries (such as cherries or olives in food processing applications) without product damage.
2. The gentle pump action further minimizes product degradation.
3. Can handle larger sized particles than may be pumped with other types of positive displacement pumps.
4. May be easily cleaned using either clean-in-place (CIP) or steam-in-place (SIP) methods, making them ideal for hygienic processing applications.
5. Highly efficient for pumping very viscous liquids.
6. Offer accurate and consistent fluid output that is unaffected by changes in head pressure, assuming sufficient fluid viscosity.
7. The fluid flow can be increased or decreased by controlling the drive speed.
8. If wetted, rotary lobe pumps are also self-priming, and can run dry for long periods of time (assuming the pump’s seals are lubricated).

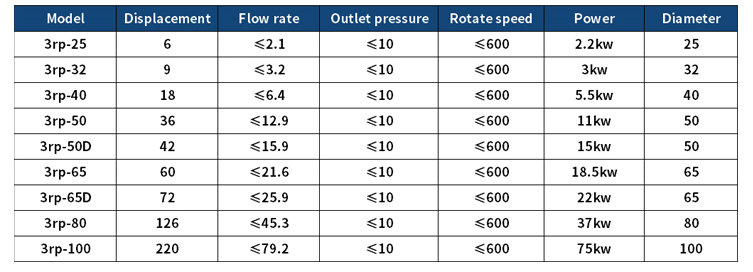

Performance Data:
Model Flow Discharge Pressure
(Mpa)
Rev
(rpm)
Motor Power
(kw)
Inlet/outlet
(mm)
L/100r m3/h
3RP-25 6 ≤1.8 0-1.0 10-400 0.75 25
3RP-32 9 ≤2.7 1.1 32
3RP-40 18 ≤4.3 1.5 40
3RP-50 36 ≤8.6 2.2 50
3RP-65 60 ≤14.4 4 65
3RP-80 105 ≤25.2 11 80
3RP-100A 125 ≤30 15 100
3RP-100 150 ≤36 18.5 100
3RP-125 250 ≤60 22 125
