Product Description

Summarize:

3RP series stainless steel lobe pump is a multi-purpose two-way positive displacement pump produced by our company by introducing advanced technology from Germany, which has the advantages of good self-absorption performance, high effective transportation rate, food-grade materials, long service life and so on. This product is generally used for conveying suspensions containing soft solid particles, corrosive media and suspensions, which can meet the conveying requirements of food, pharmaceutical, construction, petroleum, daily-use chemical and other industries.

Product Details:

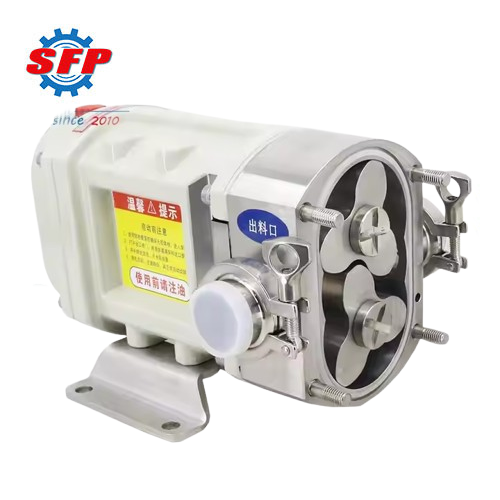

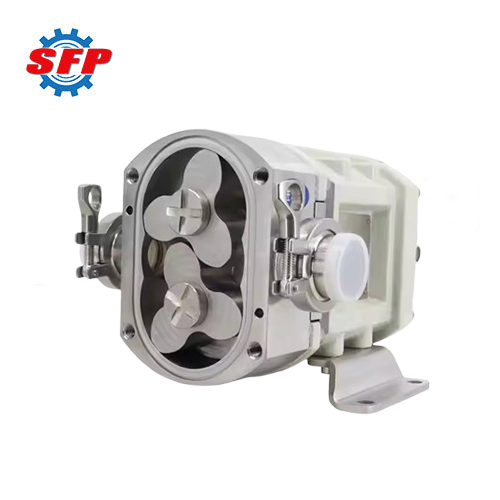

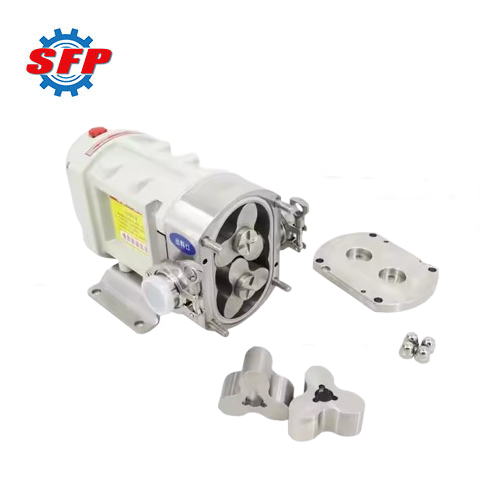

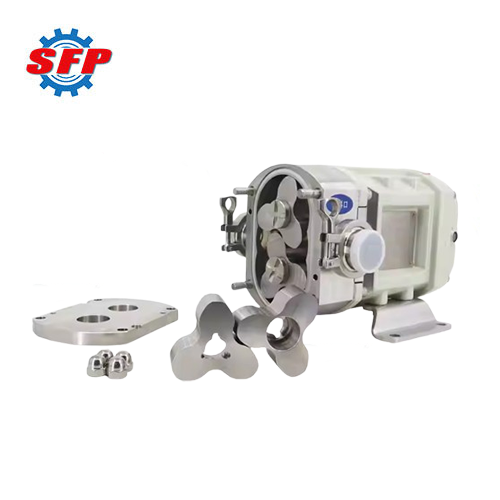

3RP series lobe rotor pump is mainly composed of rotor, shaft seal, gear box, and a pair of synchronous meshing active gear. The product adopts the gear drive mode, the main shaft and auxiliary shaft drive the rotor synchronous reverse rotation, so that the pump volume changes, thus forming a higher vacuum and discharge pressure. Therefore, it is especially suitable for conveying sanitary medium and strong corrosive and high viscosity medium.

Application:

1. Foodstuffs: Ketchup, vegetable pastes, sauces, sweeteners, yeast pastes, salads, meat emulsions, cooking oils.
2. Confectionery: Syrups, cream fillings, purees, fruit fillings, puddings, jams, jellies, chocolates.
3. Beverages: Beer, wort, yeast, soft drinks, fruit juice concentrates, fruit drinks.
4. Cosmetics: Creams and lotions, hairsprays, hair dyes, essential oils.
5. Dairy Products: Yoghurt, cream, ice cream, cheese and whey.
6. Chemicals: Fats, solvents, resins and polymers, dyes.
7. Pharmaceuticals: Pills, extracts, emulsions, creams.

Feature:

1. It can transfer materials with poor fluidity such as high viscosity and high concentration. It can also convey gas, liquid and solid three-phase mixture materials, with a wide range of conveying.
2. Adopting high-quality sealing materials and advanced sealing technology to ensure the sealing of the pump when conveying various media.
3. By adjusting the spindle speed, the output flow rate of the pump can be changed, and it can be used as a general metering pump.
4. The simple structure, stable operation and low failure rate can reduce the maintenance cost and downtime.

Performance Data:

Model	Flow		Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
Model	L/100r	m3/h	Discharge Pressure (Mpa)	Rev (rpm)	Motor Power (kw)	Inlet/outlet (mm)
3RP-25	6	≤1.8	0-1.0	10-400	0.75	25
3RP-32	9	≤2.7			1.1	32
3RP-40	18	≤4.3			1.5	40
3RP-50	36	≤8.6			2.2	50
3RP-65	60	≤14.4			4	65
3RP-80	105	≤25.2			11	80
3RP-100A	125	≤30			15	100
3RP-100	150	≤36			18.5	100
3RP-125	250	≤60			22	125
