Product Description

Summarize:

YCB series hot cooking oil gear pump adopts double arc sinusoidal curve tooth design, which brings the design, production and use of gear pumps into a new realm, and its outstanding advantage is that there is no relative sliding on the surface of the tooth profile when meshing. Therefore, when conveying non-corrosive lubricating oil or equivalent liquid with temperature below 300°C, viscosity 5-1500 cSt, no solid particles and fibers, there is no trapping phenomenon, stable conveying, no wear on the tooth surface and high efficiency.

Product Details:

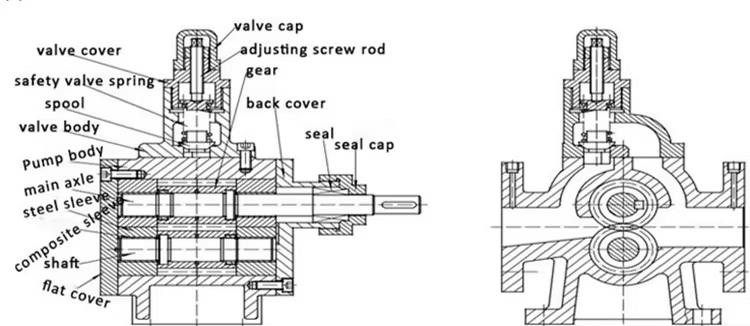

YCB series gear oil pumps deliver liquid through the change of working volume between pump casing and meshing gears. When two gears mesh, the pump casing and front and rear covers form two closed cavities. When the gears rotate in a specific direction, the volume of the cavity on the side of the meshing gears changes from small to large, forming a vacuum to inhale the liquid, and the volume of the cavity on the side of the meshing gears changes from large to small, squeezing the liquid into the discharge pipe.

Application:

1. This machine can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.
2. It can used as hydraulic pump supplying hydraulic power in hydraulic system.
3. It can give performance as transfer pump or booster in oil deliver system.
4. In all industry fields it can be as lubricating pump.

Feature:

1. The use of YCB type gear pumps, which are compact and made of durable materials, reduces downtime and maintenance costs throughout the life of the machine.
2. This machine is made of reliable materials and sophisticated technology, ensuring high machine performance even under harsh operating conditions.
3. Its circular design allows for smooth and efficient oil delivery, thus increasing overall productivity.
4. It is of the double-rotating type, which makes it possible to replace the discharge end.

Performance Data:

Model	Flow (m3/h)	Presure (Mpa)	Rev (r/min)	Npshr (m)	Frequency (hz)
Model	Flow (m3/h)	Presure (Mpa)	Rev (r/min)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6	0.6	910	5.5	50
	1		1390		50
	0.7		1130		60
	1.2		1710		60
YCB0.6-1.6	0.6	1.6	910	7	50
	1		1400		50
	0.7		1130		60
	1.2		1710		60
YCB1.6-0.6	1.6	0.6	910	5.5	50
	2.5		1400		50
	1.9		1130		60
	3		1710		60
YCB1.6-1.6	1.6	1.6	940	7	50
	2.5		1440		50
	1.9		1150		60
	3		1750		60
YCB3.3-0.6	3.3	0.6	940	5	50
	5		1420		50
	4		1150		60
	6		1730		60
YCB3.3-1.6	3.3	1.6	960	7	50
	5		1440		50
	4		1170		60
	6		1750		60
YCB4-0.6	4	0.6	940	5	50
	6		1420		50
	4.8		1150		60
	6		1730		60
YCB4-1.6	4	1.6	960	7	50
	6		1440		50
	4.8		1170		60
	7.2		1750		60
YCB8-0.6	8	0.6	960	5	50
	12		1440		50
	9.6		1170		60
	14.4		1750		60
YCB8-1.6	8	1.6	970	7	50
	12		1460		50
	9.6		1170		60
	14.4		1760		60
YCB10-0.6	10	0.6	960	5	50
	15		1440		50
	12		1170		60
	18		1750		60
YCB10-1.6	10	.1.6	970	7	50
	15		1470		50
	12		1170		60
	18		1770		60
