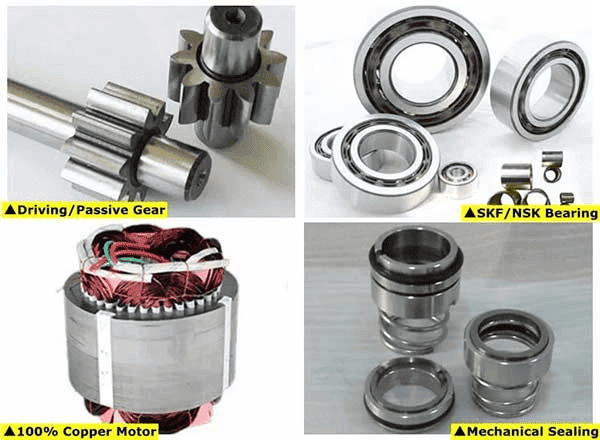

KCB series vegetable oil transfer pump has safety valve as protection of overload. Safety valve's return flow pressure is 1.5 times higher than pump's rated exhaust pressure. Also can adjust within the allowance according to actual requirement. But please note the safety valve can not be used as pressure reducing valve working for long time. Can separately install pressure reducing valve if it is needed. All the parts in the pump will automatic reach lubrication by transferring medium when pump working. There are properly designed unloading groove and return chute in pump, which makes the gear bear the least torque force and therefor reduce the load of bearings and wear, pump's efficiency raised.
.png)
| Model Number | KCB |
| Temperature | <300 |
| Power | 1.5-400kW |
| Motor | AC electric motor |
| Medium Temperature | Less than 300CD |
| Viscosity | 5cSt--1500cSt |
| Max Flow Rate | 1600L/min |
| Seal | Mechanical Seal |
| Model | Flow (L/min) |
Presure (Mpa) |
Port Size (mm) |
NPSHr (m) |
Motor Power (kw) |
| KCB18.3 | 18.3 | 1.45 | 20 | 5 | 1.5 |
| KCB33.3 | 33.3 | 1.45 | 20 | 5 | 2.2 |
| KCB55 | 55 | 0.33 | 25 | 7 | 1.5 |
| KCB83.3 | 83.3 | 0.33 | 40 | 7 | 2.2 |
| KCB135 | 135 | 0.33 | 50 | 5 | 2.2 |
| KCB200 | 200 | 0.33 | 50 | 5 | 4 |
| KCB300 | 300 | 0.36 | 70 | 5 | 5.5 |
| KCB483.3 | 483.3 | 0.36 | 70 | 5.5 | 7.5 |
| KCB633 | 633 | 0.28 | 100 | 6 | 11 |
| KCB960 | 960 | 0.28 | 100 | 5.5 | 18.5 |
| KCB1200 | 1200 | 0.6 | 150 | 7 | 37 |
| KCB1600 | 1600 | 0.6 | 150 | 7 | 45 |
| KCB1800 | 1800 | 0.6 | 150 | 7.5 | 55 |
| KCB2500 | 2500 | 0.6 | 200 | 7.5 | 75 |
| KCB2850 | 2850 | 0.6 | 250 | 8 | 90 |
| KCB3800 | 3800 | 0.6 | 250 | 8 | 110 |
| KCB4100 | 4100 | 0.6 | .. | 8 | 132 |
| KCB5400 | 5400 | 0.6 | 8 | 160 | |
| KCB5600 | 5600 | 0.6 | 8 | 160 | |
| KCB7600 | 7600 | 0.6 | 8 | 200 | |
| KCB7000 | 7000 | 0.6 | 8 | 185 | |
| KCB9600 | 9600 | 0.6 | 8 | 250 | |
| KCB13000 | 13000 | 0.6 | 8 | 315 | |
| KCB16000 | 16000 | 0.6 | 8 | 400 |
