Product Description

Summarize:

2BV vacuum pump is designed for the extraction of gases and water vapor with a pumping pressure of up to 33 mbar and a vacuum level of 97%. It is widely used in sugar, food, machinery, petrochemicals, electronics, pharmaceuticals and other industries that require high-capacity dewatering. Because the gas compression process is equal during the working process, it is not easy to explode when compressing and extracting flammable and explosive gases, so it is more widely used. The machine is characterized by simple structure, smooth operation, easy installation, oil-free, safe and reliable.

Product Details:

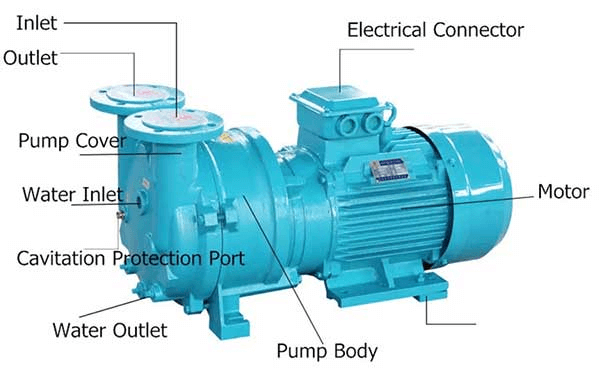

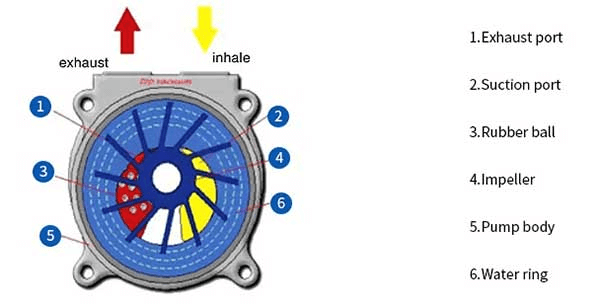

2BV vacuum pump forms a water ring in the pump body through the centrifugal force generated by the rotation of the impeller, thus realizing the pumping and compression of gases. When the pump is operated for long periods at suction pressures below 80 mbar, the pump should be protected by connecting a cavitation protection tube. If equipped with an atmospheric ejector that can be mounted directly on the vacuum pump cylinder, suction pressures of up to 10 mbar are possible. When used as a compressor, absolute pressures of up to 0.26 MPa can be achieved.

Application:

1. Food industry: It can be used for vacuum packaging, vacuum sterilization, liquid degassing in food processing, etc., such as milk factory, food processing factory, etc.
2. Pharmaceutical industry: It is suitable for vacuum distillation, drying, pharmaceutical/laboratory vacuum, etc., such as pharmaceutical factories, hospitals, laboratories and so on.
3. Chemical industry: This machine is used in vacuum filtration, distillation, drying and other processes, such as chemical products filtration plant, chemical products treatment plant, etc.
4. Other industries: Also widely used in iron and steel, paper making, plastics, rubber, wood treatment, soil purification and other industries.

Feature:

1. The unique design of the exhaust port can protect the pump from overpressure and ensure that the pump performs optimally within the working range.
2. The motors are of the YE2 series. Protection class is IP54 or IP55 (normal IP44), insulation class F.
3. Bearings are imported, NTN or NSK.
4. 2BV series water ring vacuum pumps all adopt PTFE material for flexible sealing parts, which can greatly extend the service life of the pumps under severe working conditions.
5. When the pump is working in conditions close to limited vacuum, the cavitation protection port opens (or is connected with a separator) to discharge the squeal to protect the pump.

Performance Data:

Model	Max Pumping Speed (m3/h)	Motor		Rpm(r/min)	Working Fluid Flow Rate (L/min)	dB (A)	Weight (kg)
Model	Max Pumping Speed (m3/h)	Power (kW)	Protection grade	Rpm(r/min)	Working Fluid Flow Rate (L/min)	dB (A)	Weight (kg)
2BV2 060	27	0.81	IP54	2840	2	62	31
2BV2 061	52	1.45		2840	2	65	35
2BV2 070	80	2.35		2860	2.5	66	56
2BV2 071	110	3.85		2880	4.2	72	65
2BV2 060-Ex	27	1.1	IP55	2840	2	62	39
2BV2 061-Ex	52	1.5		2840	2	65	45
2BV2 070-Ex	80	3		2860	2.5	66	66
2BV2 071-Ex	110	4		2880	4.2	72	77
2BV5 110	165	4	IP54	1440	6.7	63	103
2BV5 111	230	5.5		1440	8.3	68	117
2BV5 121	280	7.5		1440	10	69	149
2BV5 131	400	11		1460	15	73	205
2BV5 161	500	15		970	20	74	331
2BV5 110	165	4	IP55	1440	6.7	63	153
2BV5 111	230	5.5		1440	8.3	68	208
2BV5 121	280	7.5		1440	10	69	240
2BV5 131	400	11		1460	15	73	320
2BV5 161	500	15		970	20	74	446
