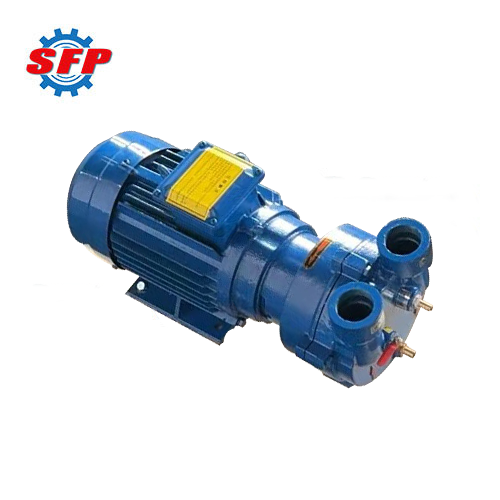

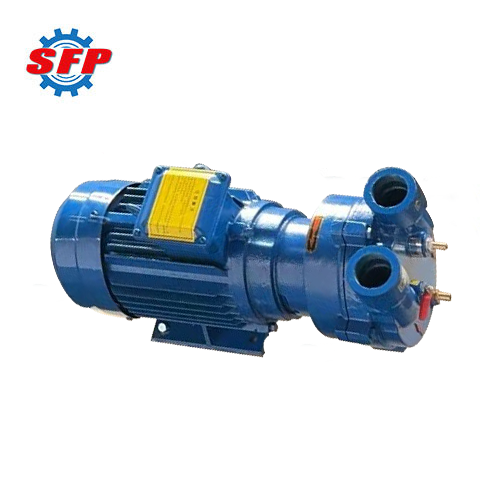

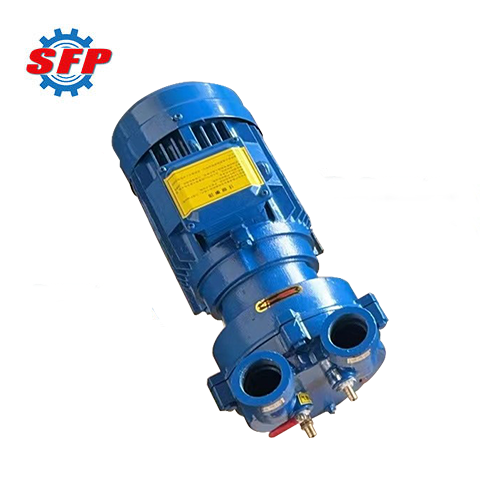

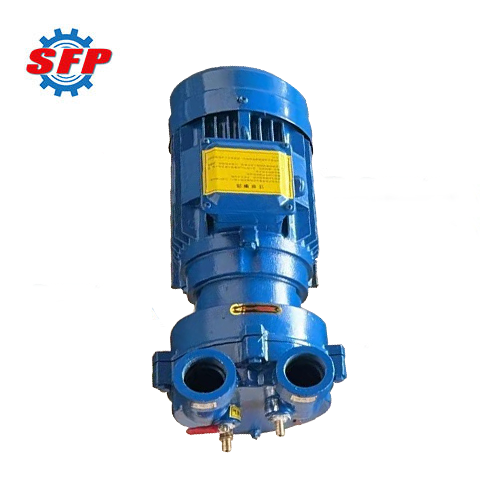

2BV Series Vacuum Pump
2BV Series Vacuum Pump
2BV Series Single Stage Vacuum Pump
2BV series single stage vacuum pump achieves pumping pressures as low as 33 mbar or a vacuum level of 97%, making it suitable for vacuum processes in high-capacity industries such as pharmaceuticals, food processing, electronics, and chemicals. To safely extract explosive gases in flammable and explosive environments, the unit can be equipped with explosion-proof motors for secure operation.
Power: 0.81-15kW
Flow Rate: 27-500m³/h
Inlet & Outlet Size: 25-80mm
Product Description
Summarize:


2BV single-stage vacuum pump is capable of performing both vacuum suction and gas compression operations within a single unit. This machine not only achieves an exceptionally high ultimate vacuum level of 97% but also employs an isothermal compression design to safely evacuate flammable and explosive gases without generating hot spots. Consequently, it is progressively replacing outdated vacuum equipment in industries such as electronics, chemicals, pharmaceuticals, and metallurgy.

Product Details:
2BV series liquid ring vacuum pump utilizes centrifugal force generated by the rotating impeller to form a water ring within the pump body, thereby achieving gas suction and compression. When the pump operates continuously at suction pressures below 80 mbar, a cavitation protection pipe must be connected to ensure safety.
Application:
2BV series vacuum pump is available for industries such as chemical, pharmaceutical, food, and electronics, and can be used in various processes including vacuum filtration, steam recovery, and vacuum distillation. It can be equipped with explosion-proof motors to meet the requirements for safely extracting explosive gases in flammable and explosive environments.
Feature:
1. Equipped with a cavitation protection port, this device eliminates sharp noises during operation near ultimate vacuum conditions to safeguard the pump body.
2. The unique discharge port design prevents overpressure on the pump body, ensuring optimal performance within the operating range.
3. It utilize high-performance seals, significantly extending the vacuum pump's service life under harsh operating conditions.
Performance Data:
Model Max Pumping Speed
(m³/h)
Motor Rpm
(r/min)
Working Fluid
Flow Rate

(L/min)
dB
(A)
Weight
(kg)
Power
(kW)
Protection
grade
2BV2  060 27 0.81 IP54 2840 2 62 31
2BV2  061 52 1.45 2840 2 65 35
2BV2  070 80 2.35 2860 2.5 66 56
2BV2  071 110 3.85 2880 4.2 72 65
2BV2  060-Ex 27 1.1 IP55 2840 2 62 39
2BV2  061-Ex 52 1.5 2840 2 65 45
2BV2  070-Ex 80 3 2860 2.5 66 66
2BV2  071-Ex 110 4 2880 4.2 72 77
2BV5  110 165 4 IP54 1440 6.7 63 103
2BV5  111 230 5.5 1440 8.3 68 117
2BV5  121 280 7.5 1440 10 69 149
2BV5  131 400 11 1460 15 73 205
2BV5  161 500 15 970 20 74 331
2BV5  110 165 4 IP55 1440 6.7 63 153
2BV5  111 230 5.5 1440 8.3 68 208
2BV5  121 280 7.5 1440 10 69 240
2BV5  131 400 11 1460 15 73 320
2BV5  161 500 15 970 20 74 446
