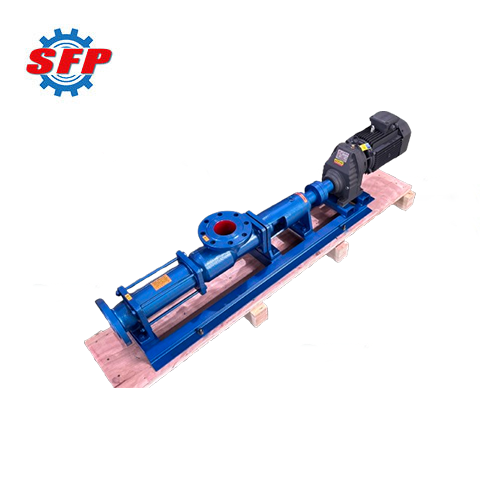

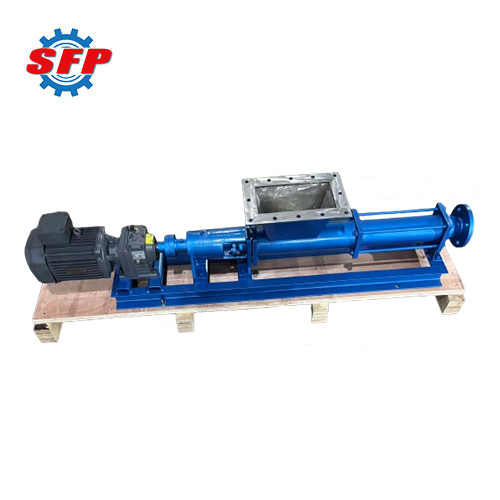

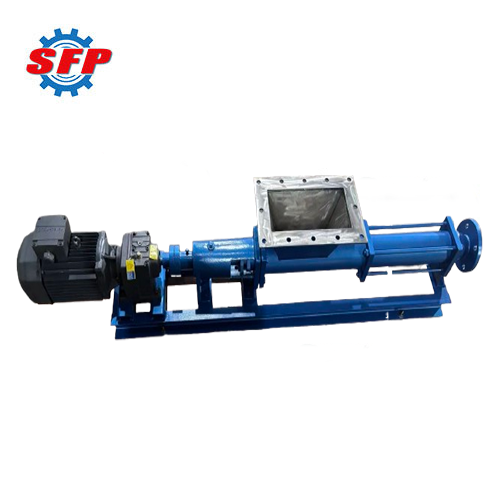

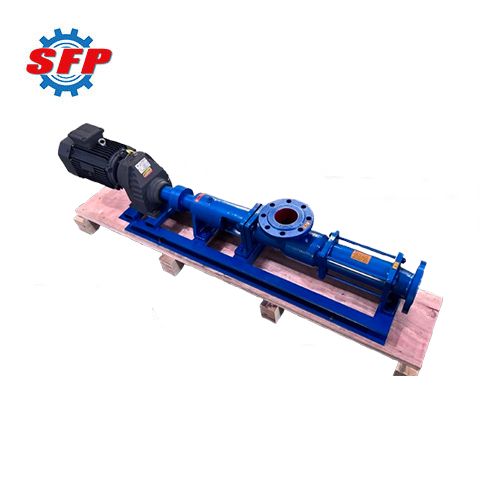

G-series screw slurry pumps are capable of handling liquid media of various viscosities, including those containing solid particles and fibers, featuring stable flow rates, minimal pulsation, and strong suction capacity. Thanks to their broad compatibility with various media and their highly efficient, energy-saving operation, this series can meet the pumping requirements under complex operating conditions in a wide range of industries, including food processing, wastewater treatment, brewing, construction, mining, papermaking, and more.
Product Details:
When conveying a medium, the G screw pump pushes it uniformly in the axial direction, resulting in a more continuous and stable flow, effectively reducing the impact of pressure fluctuations on the medium. It is therefore particularly suitable for media susceptible to shear forces and high-viscosity fluids, helping to preserve their original properties and texture. Moreover, it can be configured with different materials, motors, and variable-frequency speed control devices to meet the demands of various operating conditions, making it better suited for handling corrosive media and special process requirements.
Application:
G-type screw pumps have a wide range of applications and can be used to transport everything from low-viscosity liquids to high-viscosity, poorly flowing media. Whether it’s jam, syrup, cream, and honey in the food industry, or industrial wastewater, domestic water, and sludge-laden water containing solid particles and short fibers in the environmental protection sector, these pumps can efficiently and reliably complete the pumping tasks.
Feature:
1. This series of equipment features a compact design, occupies a small footprint, and is easy to maintain, disassemble, and reassemble, helping to reduce maintenance costs and downtime.
2. Throughout the entire conveying process, the flow remains continuous and stable, minimizing the impact of pressure fluctuations on the medium.
3. The equipment operates with low noise and minimal vibration, meeting the requirements of modern industrial production for high efficiency, energy savings, and stable operation.
Performance Data:
| Model |
Flow
(m³/h) |
Pressure
(Mpa) |
Speed
(r/min) |
Power
(kw) |
NPSH
(m) |
Inlet
(mm) |
Outlet
(mm) |
Grain Diameter
(mm) |
Fiber Length
(mm) |
| G20-1 |
0.8 |
0.6 |
960 |
0.75 |
4 |
25 |
25 |
1.5 |
25 |
| G20-2 |
1.2 |
1.5 |
| G25-1 |
2 |
0.6 |
960 |
1.5 |
32 |
25 |
2 |
30 |
| G25-2 |
1.2 |
2.2 |
| G30-1 |
5 |
0.6 |
960 |
2.2 |
50 |
40 |
2.5 |
35 |
| G30-2 |
1.2 |
3 |
| G35-1 |
8 |
0.6 |
960 |
3 |
65 |
50 |
3 |
40 |
| G35-2 |
1.2 |
4 |
| G40-1 |
12 |
0.6 |
960 |
4 |
80 |
65 |
3.8 |
45 |
| G40-2 |
1.2 |
5.5 |
| G50-1 |
20 |
0.6 |
960 |
5.5 |
4.5 |
100 |
80 |
5 |
50 |
| G50-2 |
1.2 |
7.5 |
| G60-1 |
30 |
0.6 |
960 |
11 |
5 |
125 |
100 |
6 |
60 |
| G60-2 |
1.2 |
15 |
| G70-1 |
45 |
0.6 |
720 |
11 |
150 |
125 |
8 |
70 |
| G70-2 |
1.2 |
15 |
| G85-1 |
60 |
0.6 |
720 |
15 |
150 |
150 |
10 |
80 |
| G85-2 |
1.2 |
450 |
22 |
| G105-1 |
80 |
0.6 |
400 |
22 |
200 |
200 |
15 |
110 |
| G105-2 |
1.2 |
350 |
30 |
| G135-1 |
120 |
0.6 |
350 |
37 |
250 |
250 |
20 |
150 |
