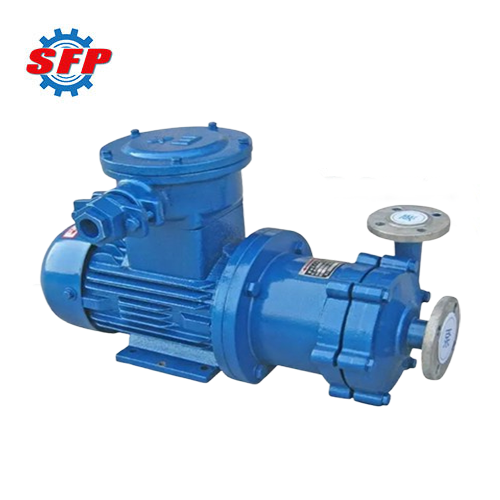

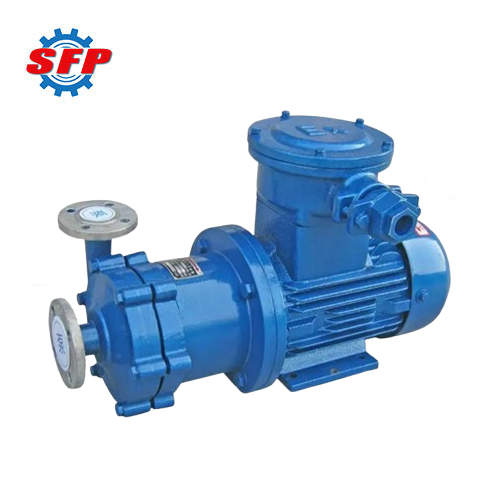

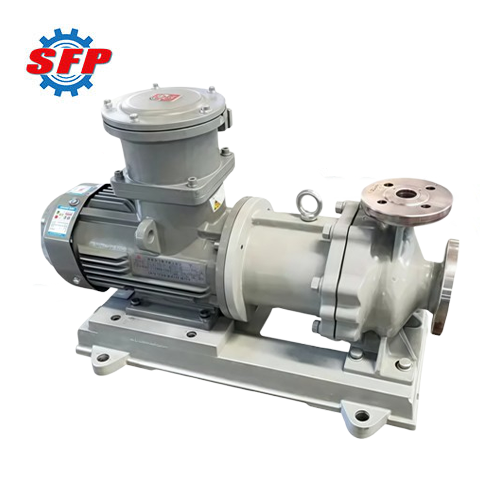

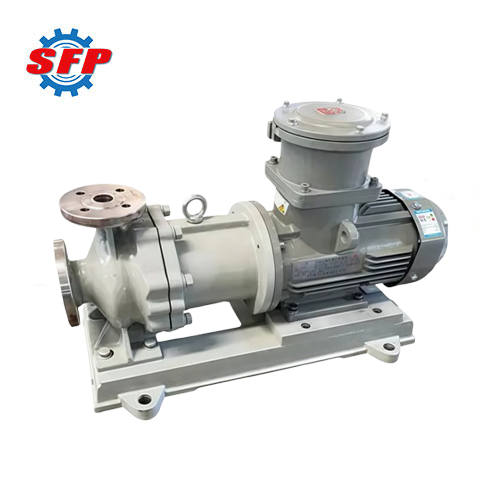

New Model CQ Series Chemical Magnetic Drive Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

G Series Sludge Screw Pump

Mineral Water Bottle Filling Machine

ISW Series Horizontal Magnetic Pump Wholesale

ISW Series Inline Centrifugal Pump

LPG Gas Transfer Pump for Sale

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

CQ series magnetic drive centrifugal pumps provide leak-free delivery of flammable, explosive, toxic, valuable, and highly corrosive liquids, serving as environmentally safe pumps for industries including chemical, pharmaceutical, electronics, hydrogen energy, and defense. Utilizing advanced magnetic drive technology, these pumps replace dynamic seals with static seals to ensure complete sealing of all fluid-contacting components, thereby eliminating the inherent leakage issues associated with mechanical seals.

Product Details:

CQ series horizontal magnetic pumps consist of three core components: the pump head, magnetic drive unit, and electric motor. When the motor drives the outer magnetic rotor to rotate via the coupling, the magnetic field traverses the air gap and non-magnetic isolation sleeve, causing the inner magnetic rotor connected to the impeller to rotate synchronously so as to achieve non-contact synchronous transmission.

Application:

CQ series magnetic centrifugal pump is suitable for industries such as chemical, pharmaceutical, petroleum, electroplating, food, film processing, research institutions, and defense industries. It is used for conveying dilute acids, dilute alkalis, dilute oils, toxic liquids, and volatile liquids. This pump can also serve as auxiliary components for water circulation equipment and filtration systems, particularly suitable for conveying liquids prone to leakage, flammability, or explosiveness.

Feature:

1. The relative sliding mechanism between the inner and outer magnetic rotors protects the motor and pump body during pump overload conditions.
2. This pump effectively reduces energy consumption through its design that eliminates the need for independent lubrication or cooling water.
3. Its shaft sealing method has been upgraded from dynamic seals to enclosed static seals, completely eliminating medium leakage.

Performance Data:

Type	Lift Head (m)	Flow (L/min)	Motor Power (kW)	Vltage (V)
BCQ-1.2	1.2	16	0.025	220
10CQ-3	3	19	0.025	220
16CQ-8	8	25	0.12	380/220
20CQ-12	12	50	0.37	380/220
25CQ-15	15	110	1.1	380
32CQ-15	15	110	1.1	380
32CQ-25	25	110	1.5	380
40CQ-20	20	180	2.2	380
50CQ-25	25	240	4	380
16CQ-8	8	25	0.18	380/220
20CQ-12	12	50	0.37	380/220
25CQ-15	15	110	1.1	380
32CQ-15	15	110	1.1	380
32CQ-25	25	110	1.5	380
40CQ-20	20	180	2.2	380
40CQ-40	40	200	4	380
50CQ-25	25	240	4	380
50CQ-40	40	200	4	380
50CQ-50	45	220	5.5	380
65CQ-25	25	280	5.5	380
65CQ-35	35	450	7.5	380
80CQ-35	35	850	11	380
80CQ-50	50	850	15	380
100CQ-32	32		22	380
100CQ-50	50		37	380
