Product Description

Summarize:

CQ series magnetic drive hot oil pump is a new product that applies the magnetic coupling principle to centrifugal pumps with reasonable design, advanced technology, full seal, no leakage, corrosion resistance and so on. This pump can be used to pump acid, alkali, oil, rare and precious liquids, volatile liquids, as well as circulating water equipment, filters and so on. Especially the effect of pumping easy to leak, flammable and explosive liquids is more ideal. Therefore, it can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film and television printing, scientific research institutions, defense industry and other industries.

Product Details:

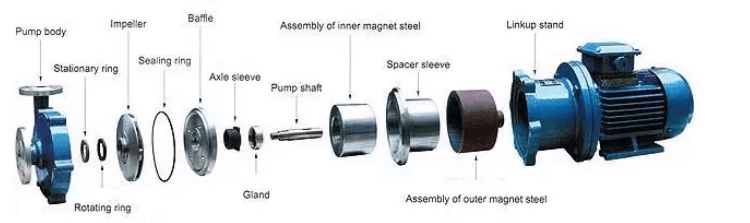

CQ series magnetic pump through the magnetic field to transmit power to the magnet according to the regular arrangement of the magnet assembled in the magnetic actuator of the inner and outer magnetic rotor, so that the magnet part of each other to form a complete coupling of the magnetic system. When the inner and outer two magnetic poles are in anisotropic relative to each other, the magnetic energy of the magnetic system is the lowest; when the magnetic poles rotate to the same pole relative to each other, the magnetic energy of the magnetic system is the largest. After removing the external force, due to the mutual exclusion of the magnetic poles of the magnetic system, the magnetic force will restore the magnet to the state with the lowest magnetic energy, thus driving the magnetic rotor to rotate, realizing the contactless transmission of power, and transforming the dynamic seal into static seal.

Application:

CQ series magnetic pump is suitable for chemical engineering, pharmaceuticals, petroleum, electroplating, foodstuffs, developing and printing of films and photographs, scientific research institutes and the defense industry for pumping dilute acids, dilute alkalis, dilute oily liquids, toxic liquids and volatile liquids, as well as as as fittings for water-circulation equipment and filters, and are particularly suitable for pumping liquids that are prone to leakage, flammability and explosiveness. It is especially suitable for conveying liquids and toxins that are easy to leak, flammable and explosive.

Feature:

1. Energy Saving: no need for independent lubrication and cooling water, reducing energy consumption. By coupling drive into synchronous drag, there is no contact and friction, small power consumption, high efficiency, and damping and vibration damping, reducing the impact of motor vibration on the pump and the impact on the motor when the pump undergoes cavitation vibration.
2. Overload Protection: when overloaded, the inner and outer magnetic rotor slips relatively, which has a protective effect on the motor and pump.
3. No Leakage: the pump shaft is turned into a closed static seal from the dynamic seal, completely avoiding the leakage of the medium, which can effectively prevent the flammable, explosive, toxic and harmful medium in the oil refining and chemical industry from leaking through the pump seal, and protect the safe production and the physical and mental health of the workers.

Performance Data:

Type	Lift Head (m)	Flow (L/min)	Motor Power (kW)	Vltage (V)
BCQ-1.2	1.2	16	0.025	220
10CQ-3	3	19	0.025	220
16CQ-8	8	25	0.12	380/220
20CQ-12	12	50	0.37	380/220
25CQ-15	15	110	1.1	380
32CQ-15	15	110	1.1	380
32CQ-25	25	110	1.5	380
40CQ-20	20	180	2.2	380
50CQ-25	25	240	4	380
16CQ-8	8	25	0.18	380/220
20CQ-12	12	50	0.37	380/220
25CQ-15	15	110	1.1	380
32CQ-15	15	110	1.1	380
32CQ-25	25	110	1.5	380
40CQ-20	20	180	2.2	380
40CQ-40	40	200	4	380
50CQ-25	25	240	4	380
50CQ-40	40	200	4	380
50CQ-50	45	220	5.5	380
65CQ-25	25	280	5.5	380
65CQ-35	35	450	7.5	380
80CQ-35	35	850	11	380
80CQ-50	50	850	15	380
100CQ-32	32		22	380
100CQ-50	50		37	380
