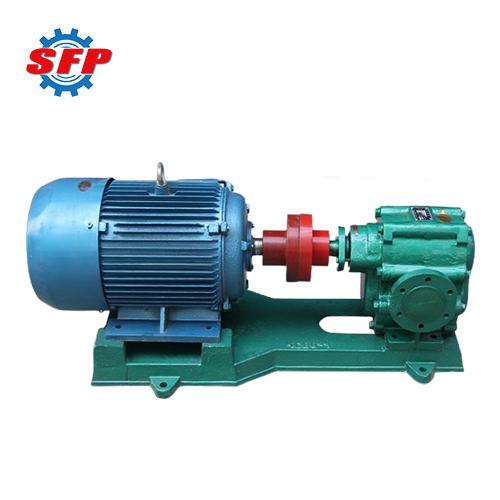

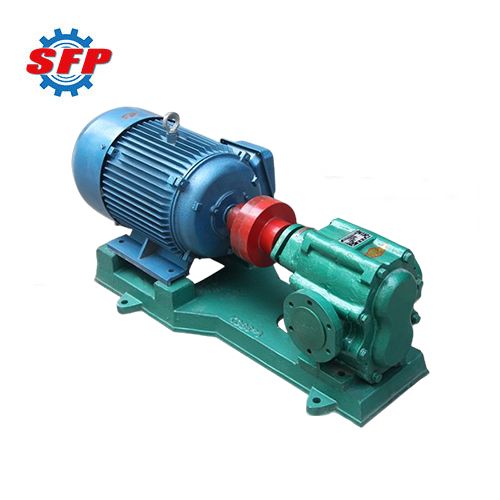

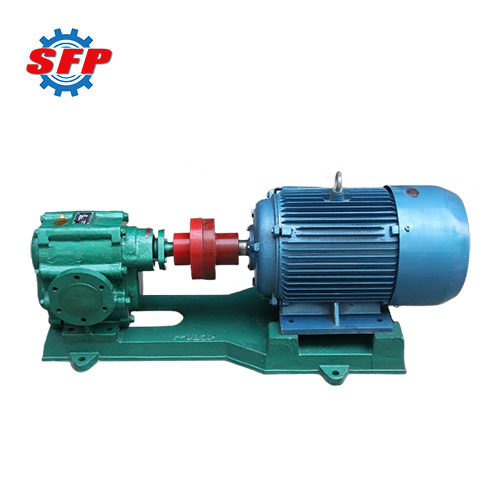

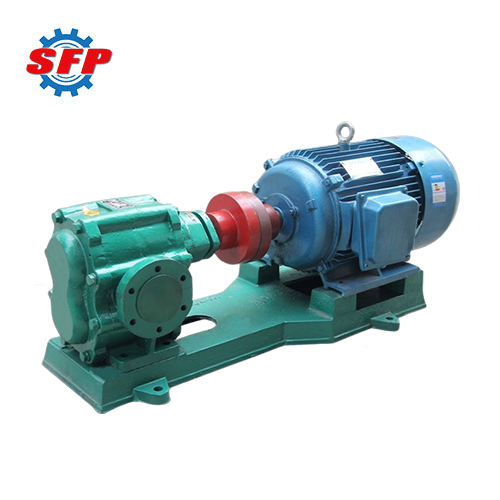

ZYB Series Gear Oil Transfer Pump
ZYB Series Gear Oil Transfer Pump
ZYB Series High Pressure Gear Pump
ZYB series high pressure gear pumps are capable of handling diesel fuel, heavy oil, residual oil, coal tar, and other low-grade, poor-quality combustion oils containing non-metallic impurities at medium temperatures not exceeding 260°C. As such, they are particularly suitable for fuel injection applications in industries such as chemicals, petroleum, construction materials, daily chemicals, grain and oil, power generation, and asphalt mixing plants. Moreover, this pump employs hydraulic balancing technology, ensuring high efficiency, minimal pulsation, low noise levels, and extended pressure retention time even under high-pressure operating conditions.
Power: 3.0-22KW
Pressure: 0.4-4.0 MPa
Voltage: 220V/380V/440V
Product Description
Summarize:


ZYB series high pressure gear pumps are designed for conveying liquid media containing non-metallic impurities, such as diesel fuel, coal tar, heavy oil, and residual oil. They can also be used in applications requiring stable pressure and long-term continuous operation, including burners, asphalt mixing plants, and heavy-duty lubrication systems. These pumps feature self-sealing lubrication and automatic pressure regulation, enabling them to automatically restore pressure without disassembly after wear, thereby extending their service life to five times that of ordinary gear pumps.

Product Details:
ZYB series oil gear pump primarily consists of components such as the pump body, pump cover, gears, shaft seal, and packing gland. The pump is equipped with two sets of identical-sized drive gears and driven gears. I outer edges of the gears fit tightly against the pump housing to form a sealed working chamber. When the drive gears of the gear pump are driven by an electric motor to rotate, the gears mesh, and the volume between the teeth gradually decreases, thereby forcing the oil to be squeezed out through the discharge port.

Application:
ZYB series gear oil pump can be used to transport non-metallic impurity liquid media with temperatures below 260°C and viscosities of 150 mm²/s, such as kerosene, heavy oil, residual oil, and fuel oil. This pump can be used in petroleum, chemical, grain and oil, building materials, daily chemicals, road construction, electric power, and asphalt mixing plant applications.
Feature:
1. Its exterior design, installation dimensions, and flanges are fully compatible with those of the KCB series standard gear pumps, ensuring high interchangeability.
2. The gears of this pump experience relatively low torque during operation, resulting in reduced bearing loads and wear, thereby effectively improving pump efficiency.
3. This pump employs hydraulic balancing technology, maintaining high efficiency, low noise, minimal pulsation, and extended pressure retention time even under high-pressure conditions.
Performance Data:
Type Inlet and Outlet Flow Pressure Speed Suction Height Power
mm m³/h L/min MPa r/min m kw
ZYB4/0.6 25 4 66 0.6 960 5 1.5
ZYB7/0.6 40 7 116 0.6 960 5 3
ZYB13/0.6 50 13 216 0.6 960 5 4
ZYB13/1.0 50 13 216 1.0 960 5 5.5
ZYB18/0.6 70 18 300 0.6 960 5 7.5
ZYB18/1.0 70 18 300 1.0 960 5 11
ZYB30/0.6 80 30 500 0.6 960 5 7.5
ZYB38/0.4 100 38 633 0.4 960 5 15
ZYB45/0.6 100 45 750 0.4 960 5 18.5
ZYB60/0.6 100 60 1000 0.4 960 5 22
