Product Description

Summarize:

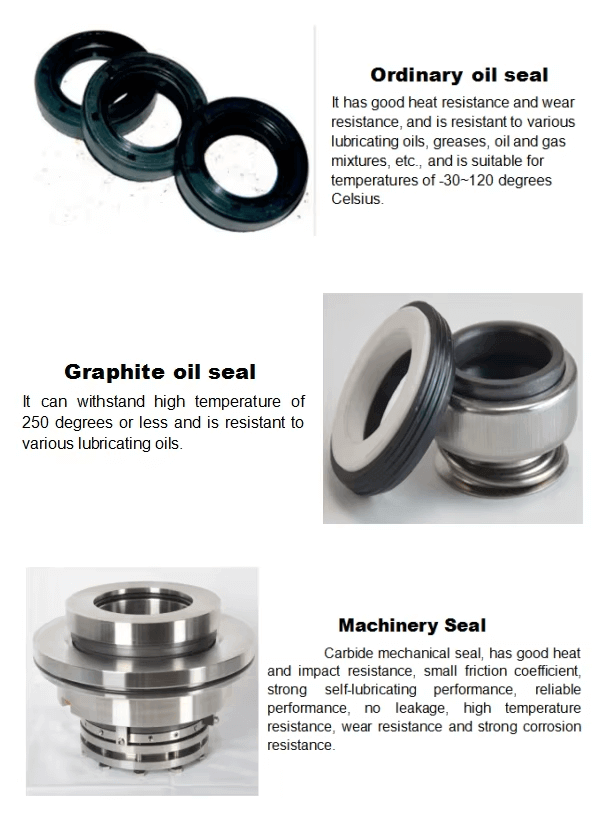

Horizontal YCB gear transfer pump is applicable for conveying lubricating oil or liquids with a similar viscosity that are used in hydraulic transmission systems have a viscosity of 5–1500 cst, including diesel, gasoline, kerosene and more. There are two types of shaft end seals, including packing seals and mechanical seals, which can be selected according to specific applications and users.

Product Details:

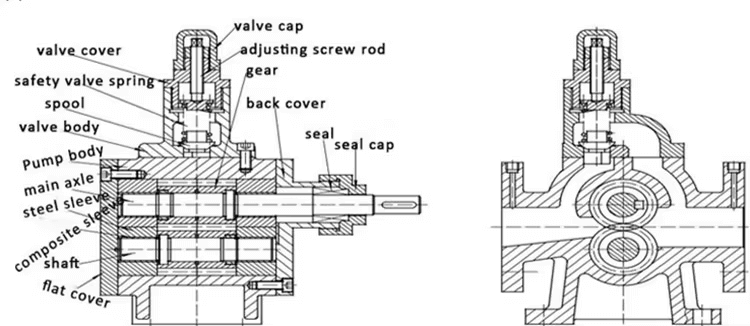

This series of gear pumps is external meshing method, double gear structure. A pair of gears meshes perfectly with the pump barrel, dividing the gear pump into two vacuum chambers, one sucking in liquid and one discharging liquid. When the gear starts to rotate, the volume of suction chamber becomes larger, the pressure becomes lower, the liquid enters into the suction chamber under the influence of pressure difference, as the gear continues to rotate, the liquid is transported to the discharge chamber, the volume of the discharge chamber becomes smaller, the pressure becomes higher, and the liquid is finally discharged.

Application:

1. It can be used as a transfer pump or booster in the oil delivery system.
2. It can also be used as fuel pump for pressurization and injection in oil transmission system and oil supply system. 3. it can also be used as hydraulic pump for providing hydraulic power in hydraulic system.
3. Can also be used as hydraulic pumps to provide hydraulic power in hydraulic systems.
4. Can be used as lubrication pumps in all industrial fields.

Feature:

1. The circular arc design of this machine allows for smooth and efficient oil delivery to improve overall productivity.
2. With the YCB type gear pump of compact construction and durable materials, which reduces downtime and maintenance costs throughout the life of the unit.
3. The pumps are use reliable materials and precision technology to ensure the high performance of the machine even under harsh working conditions.
4. They are bi-rotational so the discharge end can be changed.

Performance Data:

Model	Flow (m3/h)	Pressure (Mpa)	Rev (rpm)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6 1.0 0.7 1.2	0.6	910 1390 1130 1710	5.5	50 50 60 60
YCB0.6-1.6	0.6 1.0 0.7 1.2	1.6	910 1400 1130 1710	7.0	50 50 60 60
YCB1.6-0.6	1.6 2.5 1.9 3.0	0.6	910 1400 1130 1710	5.5	50 50 60 60
YCB1.6-1.6	1.6 2.5 1.9 3.0	1.6	940 1440 1150 1750	7.0	50 50 60 60
YCB3.3-0.6	3.3 5.0 4.0 6.0	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB3.3-1.6	3.3 5.0 4.0 6.0	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB4-0.6	4.0 6.0 4.8 7.2	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB4-1.6	4.0 6.0 4.8 7.2	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB8-0.6	8.0 12.0 9.6 14.4	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB8-1.6	8.0 12.0 9.6 14.4	1.6	970 1460 1170 1760	7.0	50 50 60 60
YCB10-0.6	10.0 15.0 12.0 18.0	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB10-1.6	10.0 15.0 12.0 18.0	1.6	970 1470 1170 1770	7.0	50 50 60 60
