ZYB Series Oil Transfer Gear Pump
ZYB Series Oil Transfer Gear Pump
ZYB Gear Oil Transfer Pump
The ZYB gear oil transfer gear pump is suitable for transferring heavy oil, diesel, coal tar, vegetable oil, and other media containing non-metallic impurities with temperatures not exceeding 260°C and viscosities not exceeding 150 mm²/s. This equipment features a forward-thinking design, wear-resistant materials, strong interchangeability, smooth operation, low noise, and high efficiency, making it a preferred choice for industries such as chemicals, petroleum, construction, shipping, daily chemicals, and food.
Power: 3.0-22KW
Pressure: 0.4-4.0 MPa
Outlet Size: 25-100mm
Product Description
Summarize:

ZYB series oil transfer gear pump adopts self-sealing lubrication design and automatic adjustment structure, and the parts are made of high wear-resistant materials, featuring compact structure, strong scrutinizing ability, high applicability and high efficiency. This product can be used to deal with media not higher than 260 ℃, viscosity not greater than 150 mm2/S and containing non-metallic impurities, such as diesel oil, heavy oil, coal tar, motor oil and other media. It is especially appropriate for the occasions that need stable working pressure and long-term continuous transmission.

Product Details:

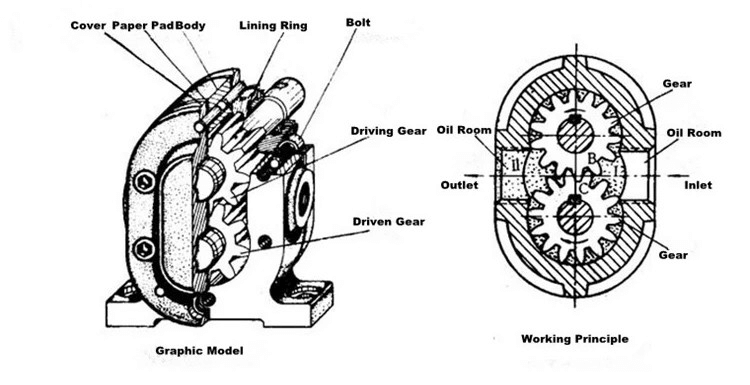

ZYB series gear oil pump is mainly composed of pump body, gears, shafts, seals and so on. Inside the pump body there are two gears meshing with each other, one is the active gear, the other is the driven gear. The active gear is driven to rotate by the motor and other power sources, and the driven gear rotates under the drive of the active gear.


Application:
ZYB series heavy oil transfer pump is suitable for conveying heavy oil, diesel oil, coal tar and other impurities containing non-metallic impurities at a temperature not higher than 260 °C and a viscosity not greater than 150 mm²/s. It is suitable for conveying heavy oil, diesel oil, coal tar and other impurities containing non-metallic impurities. It can be applied to the fields of food, petroleum, chemical, building materials and daily chemical products. It can also be used in powerful lubrication system, fuel delivery and injection in fuel combustion system. It should be noted that it is not suitable for conveying corrosive, metal-containing impurities, sand and gravel impurities with a particle diameter of more than 3 mm and highly volatile impurities.
Feature:
1. The design of this series of pumps has fully considered the interchangeability with KCB series of ordinary gear pumps, the shape and installation dimensions as well as technical parameters are exactly the same as those of KCB series gear pumps.
2. In the occasion of conveying liquid containing impurities, the working life of ZYB gear pumps is 2-10 times longer than that of general gear pumps, showing high efficiency and stability.
3. This pump adopts self-sealing lubrication and gap automatic adjustment structure, compact design, easy to install and maintain.
4. It has good self-priming, and there is no need to fill the pump with liquid before each start.
Performance Data:
Type Inlet and Outlet Flow Pressure Speed Suction Height Power
mm m³/h L/min MPa r/min m kw
ZYB4/0.6 25 4 66 0.6 960 5 1.5
ZYB7/0.6 40 7 116 0.6 960 5 3
ZYB13/0.6 50 13 216 0.6 960 5 4
ZYB13/1.0 50 13 216 1.0 960 5 5.5
ZYB18/0.6 70 18 300 0.6 960 5 7.5
ZYB18/1.0 70 18 300 1.0 960 5 11
ZYB30/0.6 80 30 500 0.6 960 5 7.5
ZYB38/0.4 100 38 633 0.4 960 5 15
ZYB45/0.6 100 45 750 0.4 960 5 18.5
ZYB60/0.6 100 60 1000 0.4 960 5 22
