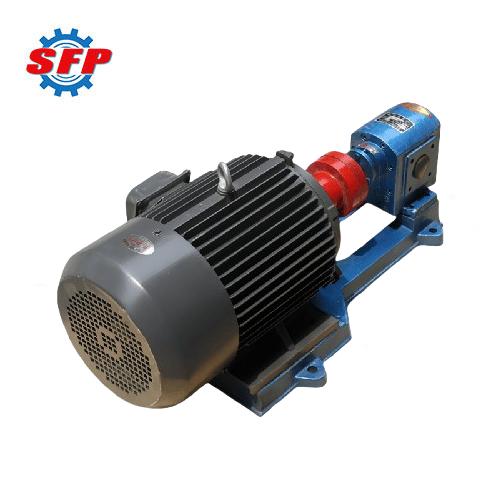

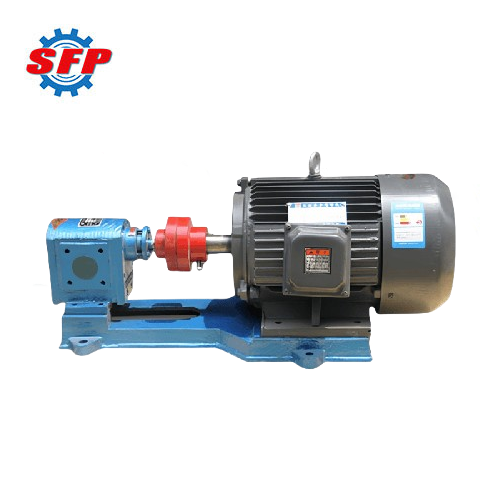

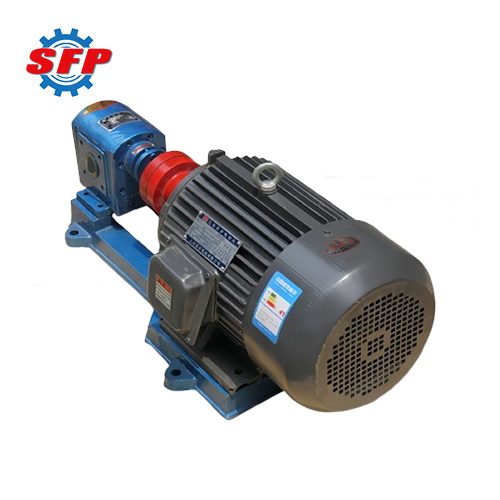

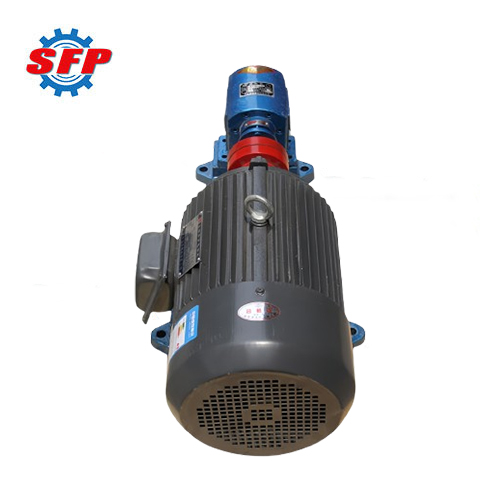

ZYB series gear oil transfer pumps are suitable for handling media such as diesel, heavy oil, coal tar, and engine oil with temperatures not exceeding 260°C, viscosities not exceeding 150 mm²/s, and containing non-metallic impurities. This equipment features a compact structure, high wear resistance, low noise, and a long service life, with characteristics including leak-free operation and high tolerance for impurities, making it particularly suitable for applications requiring stable working pressure and long-term continuous transfer.
Product Details:
ZYB series horizontal gear pump primarily consists of a pump body, pump cover, gears, and shaft seal. Two sets of identical-sized drive gears and driven gears are installed within the pump body, and its outer edges of these gears form a tightly sealed working chamber with the pump casing. When the motor drives the drive gears to rotate, the driven gears rotate accordingly. As the gears mesh, the volume between the teeth progressively decreases, forcing the fluid to be squeezed and discharged through the outlet.
Application:
ZYB series diesel oil gear pumps are suitable for conveying media containing non-metallic impurities with temperatures not exceeding 260°C and viscosities not exceeding 150 mm²/s, such as heavy oil, diesel, coal tar, asphalt, and wood tar. Therefore, they can be widely applied in the food, petroleum, chemical, building materials, and daily chemical industries, as well as in fuel combustion systems, fuel delivery and injection systems, and heavy-duty lubrication systems.
Feature:
1. This pump features excellent self-priming capability, enabling it to automatically draw in liquid to a certain extent without requiring additional auxiliary devices.
2. Its optimized internal structure effectively reduces gear torque during operation, alleviates bearing load, and minimizes wear, thereby enhancing pump efficiency.
3. It incorporates a self-sealing lubrication system with automatic clearance adjustment, featuring a rational design. Its external dimensions and mounting specifications are fully compatible with the KCB series gear pumps, ensuring interchangeability.
Performance Data:
| Type |
Inlet & Outlet |
Flow |
Pressure |
Speed |
Suction Height |
Power |
| mm |
m³/h |
L/min |
MPa |
r/min |
m |
kw |
| ZYB4/0.6 |
25 |
4 |
66 |
0.6 |
960 |
5 |
1.5 |
| ZYB7/0.6 |
40 |
7 |
116 |
0.6 |
960 |
5 |
3 |
| ZYB13/0.6 |
50 |
13 |
216 |
0.6 |
960 |
5 |
4 |
| ZYB13/1.0 |
50 |
13 |
216 |
1.0 |
960 |
5 |
5.5 |
| ZYB18/0.6 |
70 |
18 |
300 |
0.6 |
960 |
5 |
7.5 |
| ZYB18/1.0 |
70 |
18 |
300 |
1.0 |
960 |
5 |
11 |
| ZYB30/0.6 |
80 |
30 |
500 |
0.6 |
960 |
5 |
7.5 |
| ZYB38/0.4 |
100 |
38 |
633 |
0.4 |
960 |
5 |
15 |
| ZYB45/0.6 |
100 |
45 |
750 |
0.4 |
960 |
5 |
18.5 |
| ZYB60/0.6 |
100 |
60 |
1000 |
0.4 |
960 |
5 |
22 |
