Product Description

Summarize:

YHCB series gear oil pump is a kind of high efficient and energy-saving special gear pump, adopting double circular arc gear structure, suitable for conveying all kinds of liquids with viscosity of 5-1500cSt, temperature not exceeding 80℃, no solid particles and non-corrosive. In addition, the pump can also be used to select the main parts made of different materials according to the needs of users to meet the needs of conveying acid, alkali, benzene, xylene, toluene, alcohols, ketones, esters and a variety of chemical media with suitable concentration. This equipment has the advantages of large flow, high head, small volume, low noise, low rotational speed, strong self-absorption ability, etc., and has gradually become the ideal choice for the tanker truck conversion industry and the petroleum industry.

Product Details:

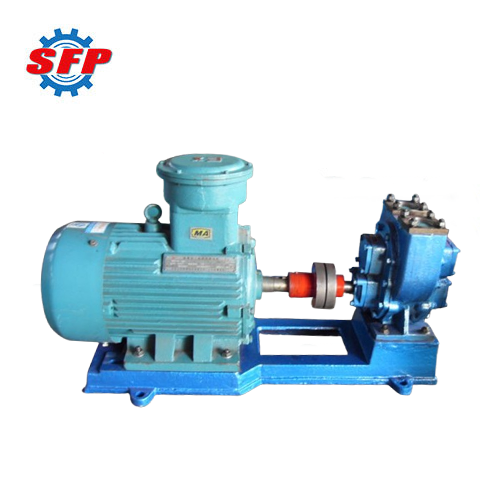

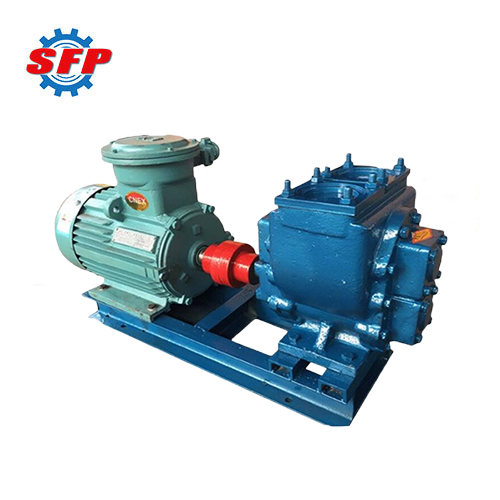

YHCB series circular arc gear pump is composed of two gears, pump body and front and rear covers, forming two closed spaces. When the gears rotate, the volume of the space on the disengaged side changes from large to small, forming a vacuum and the liquid is sucked in. At the same time, the volume of the space on the meshing side of the gears changes from large to small, so that the liquid is squeezed into the pipeline. The suction and discharge chambers of the pump are separated by the meshing lines of the two gears, and the meshing lines are made of a special material that is explosion-proof.

Application:

YHCB series horizontal gear pumps are mainly suitable for conveying viscosity of 5-1500cst, temperature below 80 ℃, no solid particles, non-corrosive oil media, including gasoline, kerosene, diesel oil lubricating oil, liquefied petroleum gas, acetate diamine, acetic acid, three amine, acetic acid, hexamethylamine, and so on.

Feature:

1. With double arc wheel structure, applying advanced gear tooth new technology, new technology, the performance is significantly improved compared with the traditional arc gear pump.
2. It is suitable for conveying various liquids without solid particles and corrosive, such as gasoline, kerosene, diesel oil, mechanical lubricating oil, etc.
3. The gears can be made of cast iron, cast copper, nylon and other materials to meet the needs of different media transportation.

Performance Data:

Model	Capacity(m3/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Motor
Model	Capacity(m3/h)	Pressure (Mpa)	Speed (r/min)	Efficiency (%)	Npshr (m)	Type	Power(kw)
50YHCB-15	15	0.6	960	70	5	YB132S-6	3
50YHCB-20	20	0.2	1100	70	5	YB132S-6	3
65YHCB-30B	30	0.4	970	70	5	YB132M2-6	5.5
65YHCB-35	35	0.6	1440	70	5	YB132M-4	7.5
65YHCB-35A	35	0.6	960	70	5	YB160M-6	7.5
76YHCB-40	40	0.6	1440	70	5	YB132M-4	7.5
76YHCB-40A	40	0.6	970	70	5	YB160M-6	7.5
76YHCB-40B	40	0.4	970	70	5	YB160M-6	7.5
76YHCB-50	50	0.6	970	70	5	YB160L-6	11
80YHCB-60	60	0.6	970	70	5	YB160L-6	11
80YHCB-60A	60	0.6	970	70	5	YB160L-6	11
80YHCB-60B	60	0.4	970	70	5	YB160L-6	11
80YHCB-80	80	0.6	970	70	5	YB160L-5	15
100YHCB-100	100	0.4	970	70	5	YB200L1-6	18.5
150YHCB-150	150	0.4	980	70	5	YB225M-4	30
200YHCB-200	200	0.4	740	70	5	YB280M-6	45
