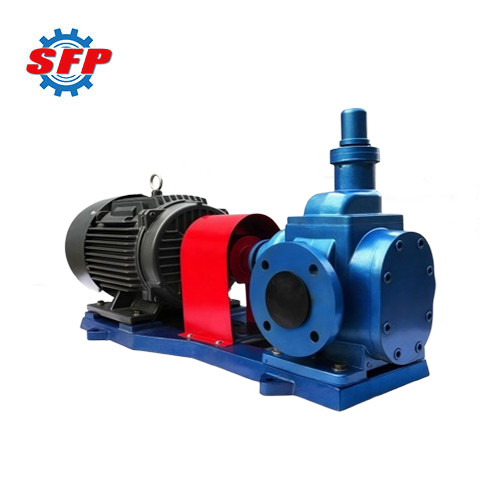

YCB series gear pump belongs to external circular arc gear pump, which is designed for conveying and transporting lubricating oil or other liquids of similar nature to lubricating oil which do not contain solid particles and fibers. It can be applied to industries such as petroleum, chemicals, coatings, oils and fats, shipping, pharmaceuticals, machinery manufacturing, and construction. In addition, the pump features a dual-arc plus sine curve composite tooth profile design, which not only elevates the design, manufacturing, and application of gear pumps to a new level but also reduces wear on the gear surfaces, thereby enabling smoother rotation and lower noise levels.
Product Details:

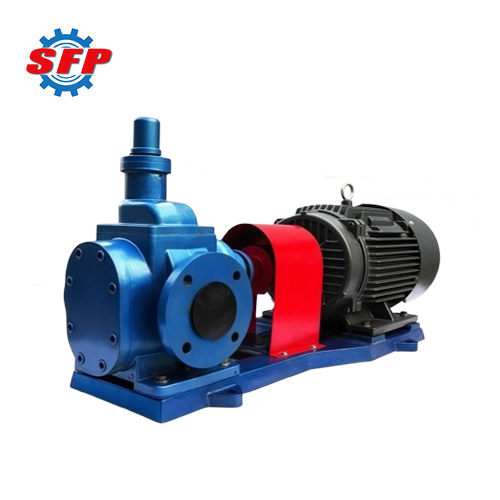

YCB series gear pump primarily consists of an active gear, a driven gear, a pump body, front and rear cover plates, and seals. When the motor drives the active gear to rotate, the active gear engages with the driven gear, causing it to rotate as well. During the meshing process of the gears, the tooth tips and sides of the gears form sealed working chambers with the pump housing. As the gears rotate, the volume of the working chambers changes, thereby achieving the suction and discharge of the fluid.
.png)
Application:
1. Edible Oil and Lubricant Industry: For the transportation of vegetable oils, animal fats, and lubricating oils during the production, processing, and storage of edible oils and industrial lubricants.
2. Petroleum Industry: It is used for the transportation and loading/unloading of petroleum products such as crude oil, gasoline, and diesel fuel, in facilities such as oil depots, gas stations, and petroleum terminals.
3. Chemical Industry: For the transportation of various chemical raw materials, intermediates, and finished products during chemical production processes, such as acids, alkalis, salt solutions, and organic solvents.
4. Shipping Industry: As fuel pumps, lubricating oil pumps, and hydraulic oil pumps on ships, used for fuel supply to ship engines, oil circulation in lubrication systems, and power transmission in hydraulic systems.
5. Machinery Manufacturing Industry: In the lubrication systems of machine tools and mechanical processing equipment, providing lubricating oil to ensure proper lubrication and normal operation of mechanical components.
Feature:
1. Optimized gear meshing clearance and internal pump body structure reduce mechanical vibration and noise generated during pump operation.
2. The unique pump body structure and gear configuration enable the pump to quickly form a vacuum upon startup, thereby achieving excellent self-priming performance.
3. Critical components such as gears and the pump body are manufactured using high-quality materials and undergo special heat treatment processes to enhance material hardness and wear resistance.
4. The pump features a simple and compact design with a relatively small number of components, allowing users to easily perform routine maintenance and repairs, such as replacing gears, bearings, seals, and other wear-prone parts, significantly reducing maintenance costs and downtime.
Performance Data:
| Model |
Flow
(m³/h) |
Pressure
(Mpa) |
Rev
(rpm) |
Npshr
(m) |
Frequency
(hz) |
| YCB0.6-0.6 |
0.6
1.0
0.7
1.2 |
0.6 |
910
1390
1130
1710 |
5.5 |
50
50
60
60 |
| YCB0.6-1.6 |
0.6
1.0
0.7
1.2 |
1.6 |
910
1400
1130
1710 |
7.0 |
50
50
60
60 |
| YCB1.6-0.6 |
1.6
2.5
1.9
3.0 |
0.6 |
910
1400
1130
1710 |
5.5 |
50
50
60
60 |
| YCB1.6-1.6 |
1.6
2.5
1.9
3.0 |
1.6 |
940
1440
1150
1750 |
7.0 |
50
50
60
60 |
| YCB3.3-0.6 |
3.3
5.0
4.0
6.0 |
0.6 |
940
1420
1150
1730 |
5.0 |
50
50
60
60 |
| YCB3.3-1.6 |
3.3
5.0
4.0
6.0 |
1.6 |
960
1440
1170
1750 |
7.0 |
50
50
60
60 |
| YCB4-0.6 |
4.0
6.0
4.8
7.2 |
0.6 |
940
1420
1150
1730
|
5.0 |
50
50
60
60 |
| YCB4-1.6 |
4.0
6.0
4.8
7.2 |
1.6 |
960
1440
1170
1750 |
7.0 |
50
50
60
60 |
| YCB8-0.6 |
8.0
12.0
9.6
14.4 |
0.6 |
960
1440
1170
1750 |
5.0 |
50
50
60
60 |
| YCB8-1.6 |
8.0
12.0
9.6
14.4 |
1.6 |
970
1460
1170
1760 |
7.0 |
50
50
60
60 |
| YCB10-0.6 |
10.0
15.0
12.0
18.0 |
0.6 |
960
1440
1170
1750 |
5.0 |
50
50
60
60 |
| YCB10-1.6 |
10.0
15.0
12.0
18.0 |
1.6 |
970
1470
1170
1770 |
7.0 |
50
50
60
60 |
