Summarize:
.jpg)
WBC series oil gear pumps are suitable for handling lubricating oils and other similar liquid media with lubricating properties that do not contain solid particles or fibers. They are commonly used in industries such as power plants, substations, refineries, and machine tools for the transportation of lubricating oil, fuel oil, edible oil, and chemical liquids. Additionally, the gears of this pump are made of alloy steel and undergo special heat treatment, resulting in a surface hardness of HRB60 or higher, effectively extending the service life of the equipment.
Product Details:

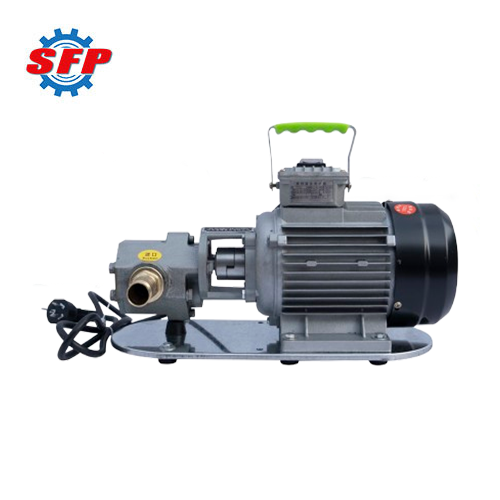

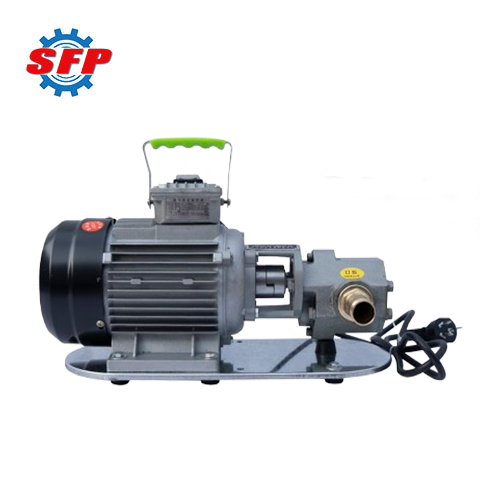

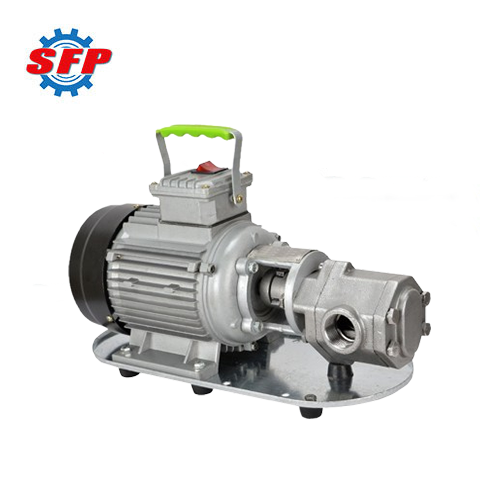

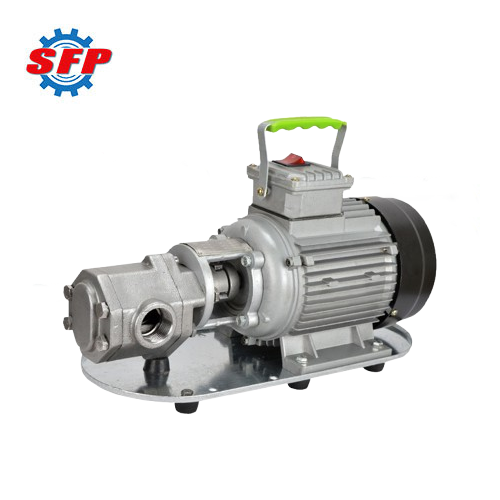

WCB series portable oil gear pump mainly consists of gears, shafts, pump bodies, shaft end seals, and other parts. When the pump is started, the meshing and separation of the gears creates a vacuum area, causing the liquid to be sucked into the pump. Subsequently, the gear teeth convey the liquid along the pump wall to the outlet, and the gear teeth on the meshing side squeeze the liquid out.
Application:
1. In the industrial field, this pump can be used as a lubricating oil pump.
2. In fuel delivery systems, this device can also be used as a delivery pressurization pump.
3. As a fuel pump, it can meet the requirements of fuel delivery, pressurization, and injection in fuel systems.
4. This device can also be used as a hydraulic pump to provide hydraulic power in hydraulic transmission systems.
Feature:
1. This pump features a simple structure, compact size, and handle design, making it easier and more convenient to use and operate.
2. It is equipped with a safety valve that automatically returns oil in the event of blockage or overpressure, thereby protecting the motor and pipes.
3. With the advantage of one-button operation, the pump can be turned on and used immediately after connecting to a power source, without the need for installation.
4. The pump can be automatically lubricated, with the lubrication process automatically performed by the conveyed liquid, eliminating the need to add other lubricants during daily operation.
Performance Data:
| Type |
Flow L/min |
Conveying Height m |
Weight kg |
Driving Power w |
Use Power v |
Material |
| WCB30 |
30 |
30 |
17 |
370 |
220 |
Csat iron |
| WCB50 |
50 |
30 |
19 |
550 |
220 |
Csat iron |
| WCB75 |
75 |
30 |
21 |
750 |
220 |
Csat iron |
| WCB30P |
30 |
30 |
17 |
370 |
220 |
Stainless steel |
| WCB50P |
50 |
30 |
19 |
550 |
220 |
Stainless steel |
| WCB75P |
75 |
30 |
21 |
750 |
220 |
Stainless steel |
