Product Description

Summarize:

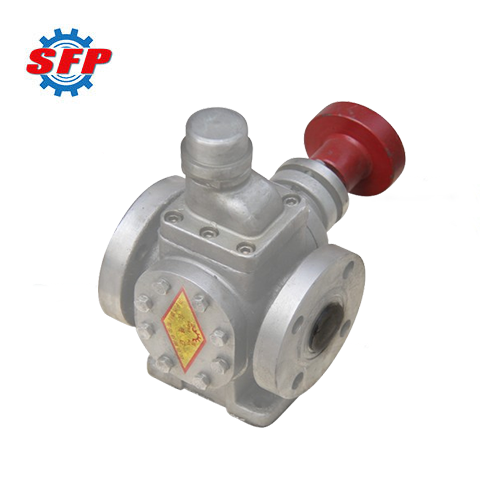

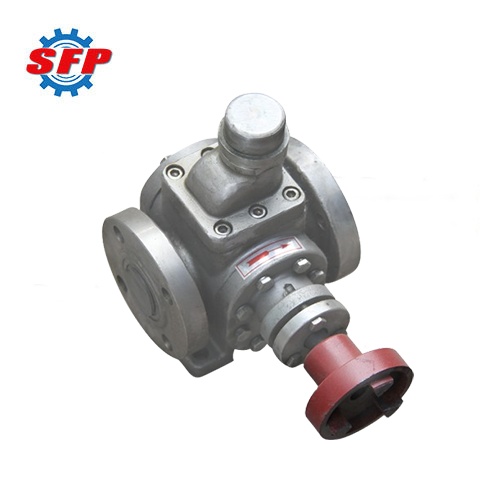

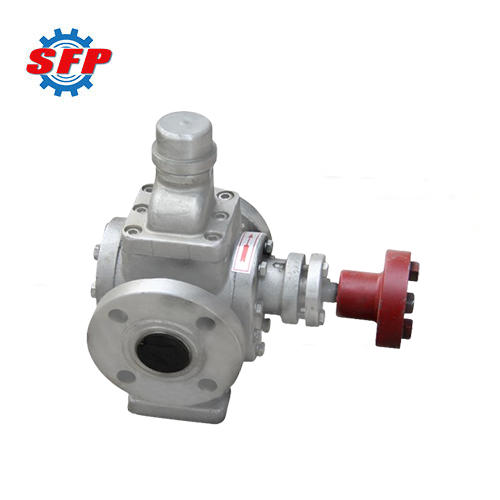

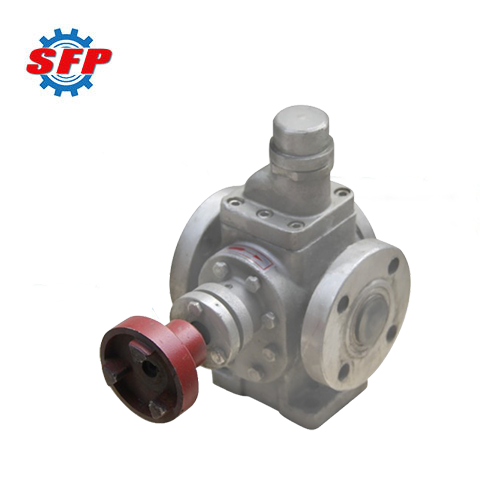

YCB series circular arc gear pump is a kind of external meshing circular arc gear pump, which breaks through the traditional design and brings the design, production and use of gear pump into a new realm. The pump adopts double arc plus sinusoidal curve composite into tooth shape, with high efficiency, low noise, long life and other characteristics. It is suitable for conveying and transporting lubricating oil or other liquids of similar nature to lubricating oil which do not contain solid particles and fibers, are non-corrosive, the temperature is not higher than 300℃, and the viscosity is 5-1500cSt.

Product Details:

YCB series circular gear oil pumps convey liquid through the change of working volume between the pump casing and meshing gears. When two gears mesh, the pump casing and front and rear covers form two closed chambers. When the gears rotate in a specific direction, the volume of the chamber on the gear-meshing side changes from small to large, creating a vacuum to draw in the liquid, and at the same time, the volume of the chamber on the gear-meshing side changes from large to small, thus squeezing the liquid into the discharge pipe.

Application:

1. The machine can be applied as a lubricating oil pump in all industrial fields.
2. It can be applied as transmission pump and pressurized pump in oil transmission system.
3. The pump is able to be used as transmission pump, pressurized pump and injection pump in fuel system.
4. It is available to be applied as hydraulic pump to provide hydraulic power in hydraulic transmission system.

Feature:

1. It is made of durable materials that ensure less downtime and maintenance costs during use.
2. The pump utilizes advanced technology to ensure high machine performance even under harsh working conditions.
3. The machine's circular design allows for smoother and more efficient oil delivery, thus increasing overall productivity.

Performance Data:

Model	Flow (m3/h)	Pressure (Mpa)	Rev (rpm)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6 1.0 0.7 1.2	0.6	910 1390 1130 1710	5.5	50 50 60 60
YCB0.6-1.6	0.6 1.0 0.7 1.2	1.6	910 1400 1130 1710	7.0	50 50 60 60
YCB1.6-0.6	1.6 2.5 1.9 3.0	0.6	910 1400 1130 1710	5.5	50 50 60 60
YCB1.6-1.6	1.6 2.5 1.9 3.0	1.6	940 1440 1150 1750	7.0	50 50 60 60
YCB3.3-0.6	3.3 5.0 4.0 6.0	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB3.3-1.6	3.3 5.0 4.0 6.0	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB4-0.6	4.0 6.0 4.8 7.2	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB4-1.6	4.0 6.0 4.8 7.2	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB8-0.6	8.0 12.0 9.6 14.4	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB8-1.6	8.0 12.0 9.6 14.4	1.6	970 1460 1170 1760	7.0	50 50 60 60
YCB10-0.6	10.0 15.0 12.0 18.0	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB10-1.6	10.0 15.0 12.0 18.0	1.6	970 1470 1170 1770	7.0	50 50 60 60
