YCB Series Gear Pump
YCB Series Gear Pump

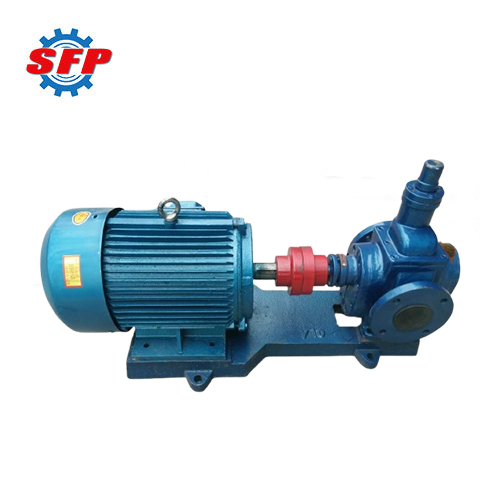

YCB Circular Arc Gear Pump
YCB circular arc gear pump is applicable for treating non-solid particles and fibers, non-corrosive lubricating oils or liquids with properties similar to lubricating oils. This pump utilizes an advanced circular arc gear design, which results in less wear on the gear surface, resulting in smoother rotation and lower noise. Its compact structure, smooth operation and high efficiency make it ideal for the chemical, petroleum and pharmaceutical industries.
Flow Rate: 0.6-97m3/h
Discharge Pressure: 0.6/1.6Mpa
Medium Temperature: Not higher than 300°.
Product Description
Summarize:

YCB circular arc gear pump breaks away from the traditional design and takes the design, production, and use of gear pumps into a new realm. This machine adopts a double arc sinusoidal curve tooth shape, thus reducing gear surface friction and improving rotational smoothness. The machine is suitable for pumping non-corrosive lubricating oils or equivalent liquids free of solid particles and fibers at temperatures below 300°C and viscosities of 5-1500 cSt. In addition, YCB series gear pump provides an efficient, reliable and low-maintenance solution for conveying work in the industrial, chemical and petroleum industries.
Product Details:




Application:
1. This machine can be used as lubricating oil pump in all industrial fields.
2. Can as hydraulic pump to provide hydraulic power for hydraulic transmission system.
3. It can be used as transmission pump, pressurized pump and injection pump in fuel system.
4. Using for transmission pump and pressurizing pump in oil transmission system.
Advantage:
1. High Efficiency and Energy Saving: Adopting advanced circular arc gear technology, it has the advantages of low noise, high efficiency and long service life.
2. Wide Application: It is suitable for conveying lubricating oil without solid particles and fibers, non-corrosive lubricating oil or other liquids with properties similar to lubricating oil.
3. Safe and Reliable: Equipped with a safety valve as overload protection, the full return pressure of the safety valve is 1.5 times the rated discharge pressure of the pump.
Performance Data:
Model Flow
(m3/h)
Pressure
(Mpa)
Rev
(rpm)
Npshr
(m)
Frequency
(hz)
YCB0.6-0.6 0.6
1.0
0.7
1.2
0.6 910
1390
1130
1710
5.5 50
50
60
60
YCB0.6-1.6 0.6
1.0
0.7
1.2
1.6 910
1400
1130
1710
7.0 50
50
60
60
YCB1.6-0.6 1.6
2.5
1.9
3.0
0.6 910
1400
1130
1710
5.5 50
50
60
60
YCB1.6-1.6 1.6
2.5
1.9
3.0
1.6 940
1440
1150
1750
7.0 50
50
60
60
YCB3.3-0.6 3.3
5.0
4.0
6.0
0.6 940
1420
1150
1730
5.0 50
50
60
60
YCB3.3-1.6 3.3
5.0
4.0
6.0
1.6 960
1440
1170
1750
7.0 50
50
60
60
YCB4-0.6 4.0
6.0
4.8
7.2
0.6 940
1420
1150
1730


5.0 50
50
60
60
YCB4-1.6 4.0
6.0
4.8
7.2
1.6 960
1440
1170
1750
7.0 50
50
60
60
YCB8-0.6 8.0
12.0
9.6
14.4
0.6 960
1440
1170
1750
5.0 50
50
60
60
YCB8-1.6 8.0
12.0
9.6
14.4
1.6 970
1460
1170
1760
7.0 50
50
60
60
YCB10-0.6 10.0
15.0
12.0
18.0
0.6 960
1440
1170
1750
5.0 50
50
60
60
YCB10-1.6 10.0
15.0
12.0
18.0
1.6 970
1470
1170
1770
7.0 50
50
60
60
