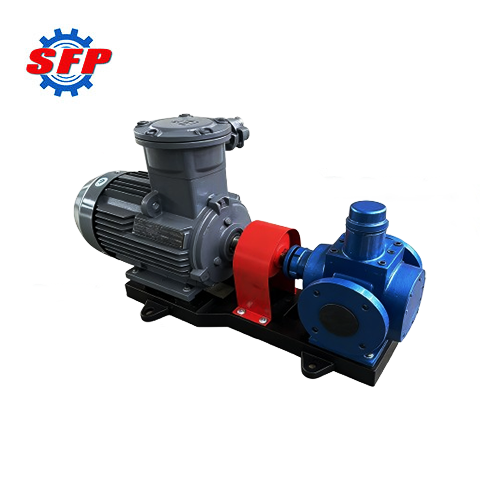

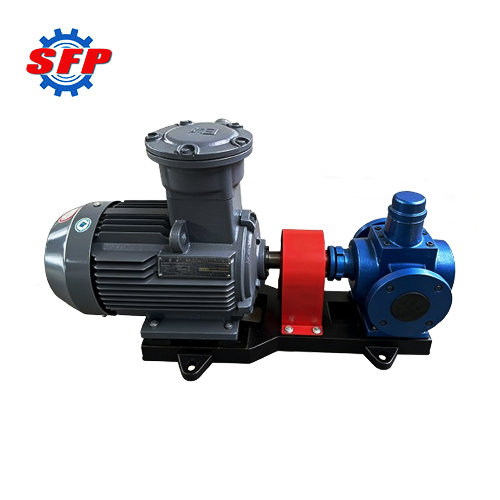

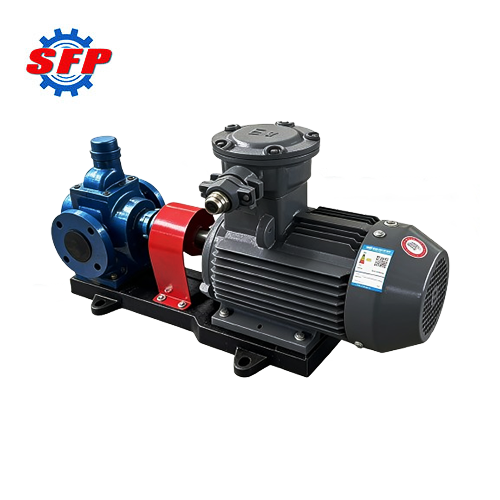

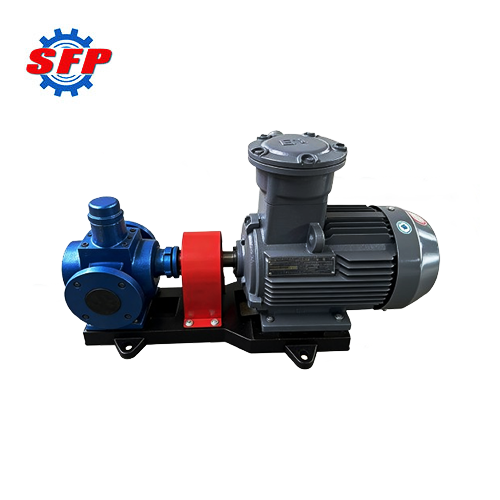

Pulsation Small YCB Cast Iron Marine Circular Arc Gear Oil Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

Mineral Water Bottle Filling Machine

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

G Series Sludge Screw Pump

ZX Self-Priming Centrifugal Pump

LPG Gas Transfer Pump for Sale

Product Description

Summarize:

YCB series circular arc gear oil pump is a transfer pump developed using double-arc sine curve tooth profile technology, which completely resolves issues such as pump body vibration, noise, and increased bearing load during operation compared to traditional involute gears. It finds primary application in fuel transfer, hydraulic systems, and sectors including power generation, marine engineering, petroleum, chemical processing, construction, and industrial production, delivering stable and efficient transfer solutions through its advantages of minimal pressure pulsation, smooth operation, and low noise levels.

Product Details:

YCB series arc gear pump operates based on a pair of intermeshing arc gears within the pump body. When driven by the motor, the meshing teeth on the suction side gradually disengage, causing the sealed chamber volume to increase progressively and creating a local vacuum. As the gears continue rotating, the liquid is carried along the pump housing wall toward the discharge port side, causing the volume of the sealing chamber on that side to decrease gradually. The liquid trapped between the teeth is compressed and forcibly expelled through the discharge port, thereby achieving continuous and stable medium delivery.

Application:

1. Oil Transfer System: Used as a transfer and booster pump.
2. Hydraulic System: Functions as a hydraulic pump to supply hydraulic power.
Fuel System: It can be serve as a fuel pump for delivery, pressurization, and injection.
4. Industrial Lubrication: This machine is suitable as a lubricating oil pump across all industrial sectors.
5. Special Media: Equipped with copper gears to convey low-flash-point liquids like gasoline and benzene, and the stainless steel construction enables transfer of corrosive liquids or food beverages.

Feature:

1. The pump's gears feature a dual-arc sine curve composite tooth profile, which completely resolves issues such as pump body vibration, noise, and increased bearing load caused by oil trapping.
2. During meshing, this tooth profile eliminates relative sliding between tooth surfaces, resulting in virtually no tooth wear, ensuring exceptionally smooth pump operation, significantly reduced noise, and minimal pressure pulsation.
3. With minimal gear wear and the inclusion of well-designed oil drainage and return channels within the pump, the torque force experienced by the gears during operation is minimized. This results in reduced bearing load and correspondingly lower wear rates.

Performance Data:

Model	Flow (m³/h)	Pressure (Mpa)	Rev (rpm)	Npshr (m)	Frequency (hz)
YCB0.6-0.6	0.6 1.0 0.7 1.2	0.6	910 1390 1130 1710	5.5	50 50 60 60
YCB0.6-1.6	0.6 1.0 0.7 1.2	1.6	910 1400 1130 1710	7.0	50 50 60 60
YCB1.6-0.6	1.6 2.5 1.9 3.0	0.6	910 1400 1130 1710	5.5	50 50 60 60
YCB1.6-1.6	1.6 2.5 1.9 3.0	1.6	940 1440 1150 1750	7.0	50 50 60 60
YCB3.3-0.6	3.3 5.0 4.0 6.0	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB3.3-1.6	3.3 5.0 4.0 6.0	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB4-0.6	4.0 6.0 4.8 7.2	0.6	940 1420 1150 1730	5.0	50 50 60 60
YCB4-1.6	4.0 6.0 4.8 7.2	1.6	960 1440 1170 1750	7.0	50 50 60 60
YCB8-0.6	8.0 12.0 9.6 14.4	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB8-1.6	8.0 12.0 9.6 14.4	1.6	970 1460 1170 1760	7.0	50 50 60 60
YCB10-0.6	10.0 15.0 12.0 18.0	0.6	960 1440 1170 1750	5.0	50 50 60 60
YCB10-1.6	10.0 15.0 12.0 18.0	1.6	970 1470 1170 1770	7.0	50 50 60 60
