LCB High Viscosity Oil Transfer Pump
LCB High Viscosity Oil Transfer Pump

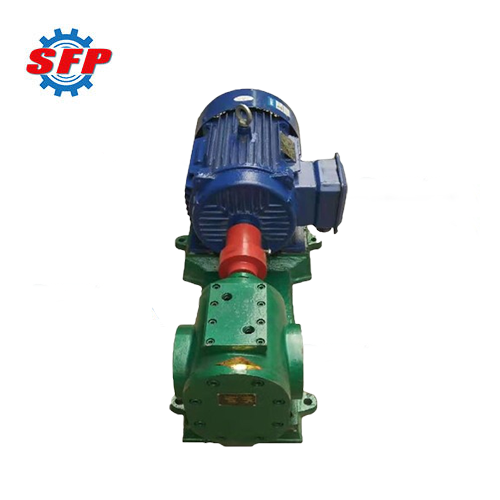

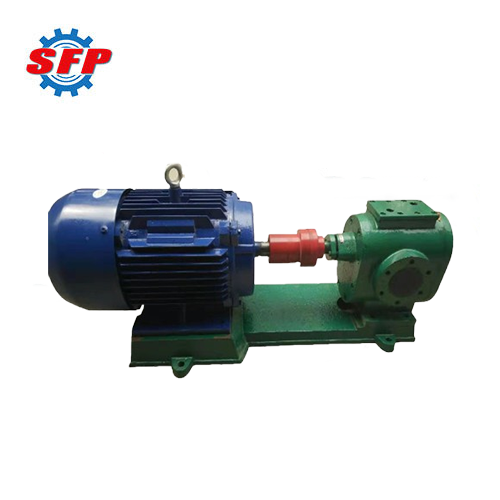

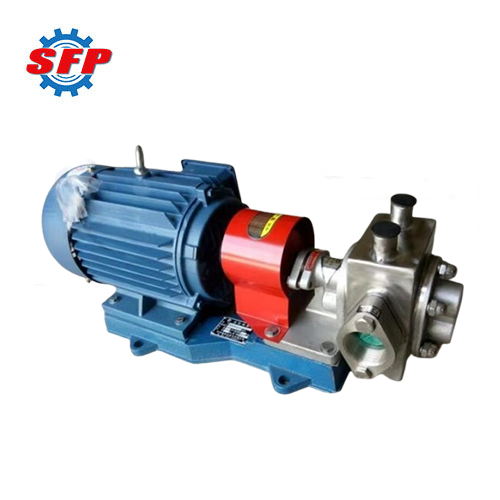

LCB Series Heavy Oil Gear Pump
LCB series heavy oil gear pump belongs to a kind of external meshing gear pump, which is mainly used for conveying all kinds of high-temperature, high-viscosity oils and corrosive media, such as asphalt, heavy oil, lubricating oil and so on. Therefore, they are usually used in the asphalt spraying operation of roads, squares and other construction projects, or in the industrial sectors of petroleum, chemical industry, machinery, metallurgy, food, agriculture, construction, papermaking, environmental protection, etc.
Flow Rate: 1-60m³/h
Presure:0.28Mpa/0.36Mpa/0.6Mpa/1.0Mpa
Presure:0.28Mpa/0.36Mpa/0.6Mpa/1.0Mpa
Product Description
Summarize:


LCB series gear pumps are suitable for conveying non-corrosive, solid particles and solidifiable media at room temperature. Usually, they can be used in petroleum, chemical, machinery, metallurgy, food, agriculture, construction, papermaking, environmental protection and other industries as well as widely used in road construction industry, oil refinery, linoleum factory, asphalt plant, oil unloading station and other places. Moreover, this series of pumps has an insulated jacket design, which can be heated and insulated by steam or thermal oil circulation to ensure that it can work normally even in low temperature environment.

Product Details:
LCB series gear oil pump has a hollow sandwich as the main overflow part, which can be used for conveying liquid and pump heating and heat preservation. The machine is made of cast steel, the service life is 5 times than cast iron, the material is class II Q235, it is suitable for conveying heavy oil/asphalt without corrosion and solid particles under 350℃. It is applicable to room temperature solidification and cold areas, and can use thermal oil, steam, hot water or thermal oil circulation to heat, convey and cool the pump body.

Application:
LCB series asphalt gear pumps can convey high temperature viscous asphalt and other viscous liquids, various oils and corrosive media. The pump body can be heated and kept warm by steam or heat-conducting oil circulation, which is an ideal product for refineries, linoleum factories, asphalt factories and unloading stations to transport thick oil. It can also be widely used in petroleum, chemical, machinery, metallurgy, food, agriculture, construction, paper making, environmental protection and other industrial sectors. In addition, it is especially suitable for outdoor installation in high-cold areas and occasions where the process medium needs heat preservation.
Feature:
1. It is equipped with a safety valve, and the full return pressure is 1.5 times of the rated discharge pressure, which can prevent overload.
2.  The product adopts double arc sine curve tooth shape, the design of the tooth profile in the meshing process without relative sliding, no wear on the tooth surface, smooth operation, low noise, long life.
3. There is an insulating jacket in the pump body, which utilizes steam or heat-conducting oil circulation for heat preservation, and is suitable for conveying high-temperature liquids in low-temperature environments.
Performance Data:
Model Rated Flow Rate Working Pressure MPA Vacuum Suction Height (mm) Diameter
(mm)
Motor Power
L/min m3/h
LCB1/0.36
LCB1/0.6
16.6 1 0.36
0.6
3 25 1.5
1.5
LCB2/0.36
LCB2/0.6
33.3 2 0.36
0.6
3 25 1.5
2.2
LCB3/0.36
LCB3/0.6
50 3 0.36
0.6
3 25 1.5
2.2
LCB4/0.6
LCB4/1.0
66.4 4 0.6
1.0
5 30 1.5
2.2
LCB5/0.36
LCB5/0.6
83.3 5 0.36
0.6
5 40 2.2
4.0
LCB6/0.36
LCB6/0.6
100 6 0.36
0.6
5 40 3.0
4.0
LCB7/0.6
LCB7/1.0
116 7 0.6
1.0
5 50 3.0
4.0
LCB10/0.6
LCB10/1.0
167 10 0.6
1.0
5 50 4.0
5.5
LCB12/0.36
LCB12/0.6
200 12 0.36
0.6
5 55 4.0
5.5
LCB18/0.36
LCB18/0.6
300 18 0.36
0.6
5 70 5.5
7.5
LCB25/0. 6 416 25 0.6 5 100 7.5
LCB29/0.36
LCB29/0.6
483.3 29 0.36
0.6
5 70 7.5
11.0
LCB38/0.36
LCB38/0.6
633 38 0.36
0.6
5 100 11.0
15.0
LCB58/0.36
LCB58/0.6
960 58 0.36
0.6
5 18.5
22
