Product Description

Summarize:

LCB series heat jacket gear pump is designed to transport non-corrosive, non-solid particles, and solidified medium at room temperature, such as lubricating oil, fuel oil, asphalt, resin, rubber and so on. The inlet and outlet of the equipment are equipped with hollow jackets and flanges, which can heat and cool the conveyed liquid and pump by means of thermal oil, steam and hot water. It is especially suitable for outdoor installation in alpine areas and occasions where the process medium requires heat preservation. The machinecan also be used for heavy oil conveying pipelines in refineries, linoleum factories, asphalt plants, unloading stations and other enterprises, as well as for asphalt spraying operations in construction projects such as roads and squares.

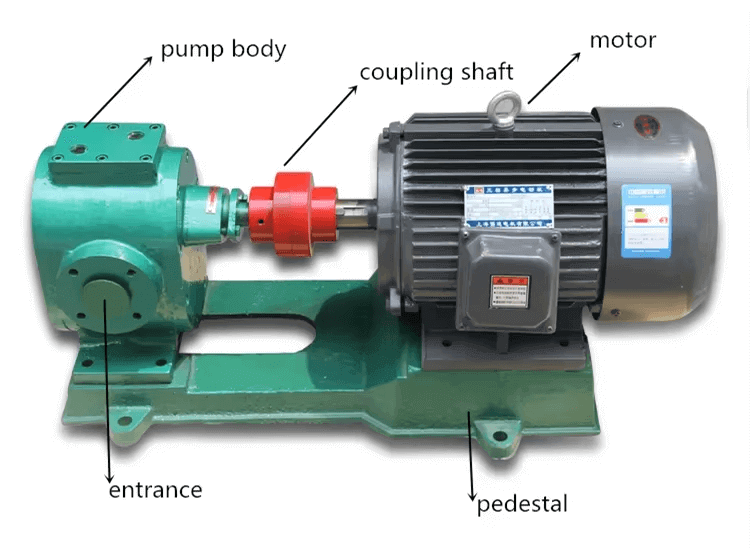

Product Details:

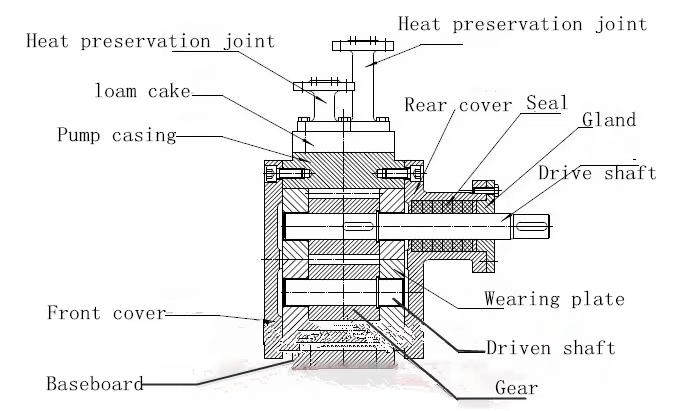

The entrance and exit of the machine are equipped with hollow jackets and flanges, which can be used to heat and cool the conveyed liquid and the pump by means of heat-conducting oil, steam and hot water. When the conveyed viscosity is large, the speed reducer, speed-regulating motor or pulley drive should be used to reduce the speed of the pump. The machine is made of cast steel, the service life is 5 times that of cast iron, and the material of class II, Q235, is suitable for conveying heavy oil/asphalt which is non-corrosive and without solid particles below 350℃.

Application:

LCB series heat jacket gear pumps convey non-corrosive, non-solid particles, solidifiable media at room temperature. It is particularly suitable for outdoor installation in cold areas and process media need heat preservation occasions, the medium temperature up to 300 ℃, viscosity of 5 ~ 1500 cst. The pump is designed for room temperature solidification, outdoor installation in cold areas and process media need heat preservation occasions, can be used in conjunction with heat conduction oil, steam, hot water, cold water and other media, the liquid to be transported and the pump conveys the media for heating, conveying and cooling.

Feature:

1. Good Heat Preservation Performance: The pump body adopts internal and external jacket structure, which can be insulated by steam, thermal oil circulation or electric heating, and can work normally in the environment below zero degree to ensure the smoothness of the oil pipeline.
2. Wide Applicability: It is suitable for conveying all kinds of high-viscosity and high-temperature media, such as asphalt, heavy oil, paraffin, etc. It can also be used for conveying media that thicken, solidify or crystallize at room temperature but flow easily at a certain temperature.
3. High Efficiency and Energy Saving: With high efficiency, it can realize larger flow rate and pressure under lower power, with remarkable energy-saving effect.
4. Smooth and Reliable Operation: With features of low noise, low vibration, long service life.

Performance Data:

Model	Rated Flow Rate		Working Pressure MPA	Vacuum Suction Height (mm)	Diameter (mm)	Motor Power
Model	L/min	m3/h	Working Pressure MPA	Vacuum Suction Height (mm)	Diameter (mm)	Motor Power
LCB1/0.36 LCB1/0.6	16.6	1	0.36 0.6	3	25	1.5 1.5
LCB2/0.36 LCB2/0.6	33.3	2	0.36 0.6	3	25	1.5 2.2
LCB3/0.36 LCB3/0.6	50	3	0.36 0.6	3	25	1.5 2.2
LCB4/0.6 LCB4/1.0	66.4	4	0.6 1.0	5	30	1.5 2.2
LCB5/0.36 LCB5/0.6	83.3	5	0.36 0.6	5	40	2.2 4.0
LCB6/0.36 LCB6/0.6	100	6	0.36 0.6	5	40	3.0 4.0
LCB7/0.6 LCB7/1.0	116	7	0.6 1.0	5	50	3.0 4.0
LCB10/0.6 LCB10/1.0	167	10	0.6 1.0	5	50	4.0 5.5
LCB12/0.36 LCB12/0.6	200	12	0.36 0.6	5	55	4.0 5.5
LCB18/0.36 LCB18/0.6	300	18	0.36 0.6	5	70	5.5 7.5
LCB25/0. 6	416	25	0.6	5	100	7.5
LCB29/0.36 LCB29/0.6	483.3	29	0.36 0.6	5	70	7.5 11.0
LCB38/0.36 LCB38/0.6	633	38	0.36 0.6	5	100	11.0 15.0
LCB58/0.36 LCB58/0.6	960	58	0.36 0.6	5		18.5 22
