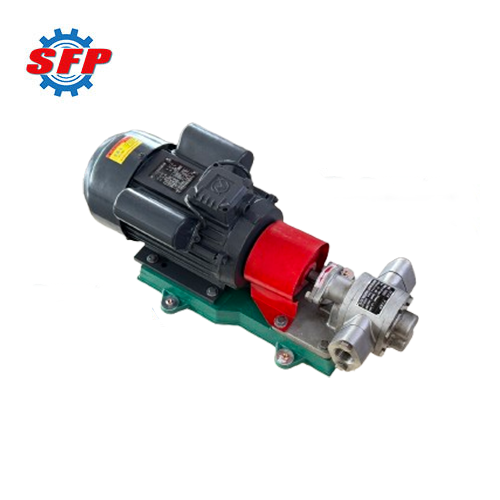

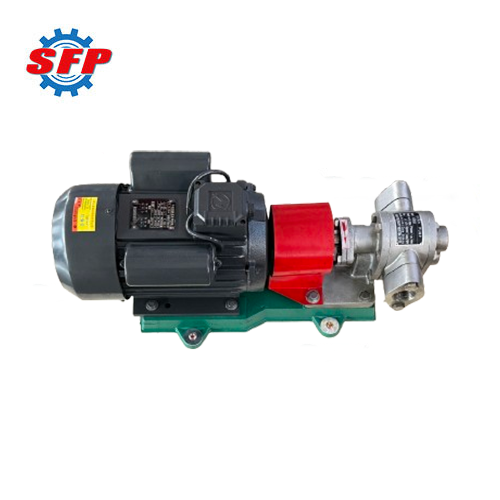

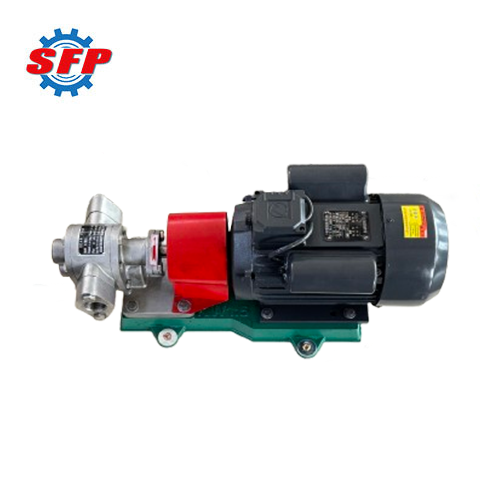

KCB series gear pump is a positive displacement pump suitable for conveying lubricating oils containing solid particles and non-corrosive liquids, as well as similar fluid media. This equipment features strong adaptability to various media, stable performance, and low failure rates, making it widely applicable across multiple industries including petroleum, chemical processing, machinery manufacturing, metallurgy and mining, power generation, and marine transportation. It incorporates advanced gear design and precision manufacturing processes, effectively reducing energy consumption during conveyance, significantly enhancing delivery efficiency, and extending equipment service life.
Product Details:
The internal cavity of the KCB series gear pump is divided into separate suction and discharge chambers by a pair of meshing drive and driven gears. When the motor drives the drive gear to rotate, causing the driven gear to rotate synchronously in the opposite direction, the gears gradually disengage on the suction side, expanding the inter-tooth volume and creating a local vacuum. On the discharge side, the gears re-engage, causing the inter-tooth volume to rapidly decrease. This forcefully compresses the liquid, generating high pressure before it is continuously discharged through the outlet pipe, completing the entire pumping cycle.
.png)
Application:
KCB series gear pumps safely convey lubricating liquids such as lubricating oil, diesel, engine oil, and heavy oil that are free of solid particles and fibers and non-corrosive. They are primarily applicable across multiple industries including petrochemicals, machinery manufacturing, metallurgy and mining, power stations, and marine transportation. Whether continuously supplying oil to large industrial equipment lubrication systems, transferring oil during chemical production, or conveying fuel in complex outdoor environments like ships and mines, this equipment delivers reliable fluid transfer solutions for industrial production.
Feature:
1. The pump incorporates well-designed drain and return oil channels, significantly reducing torque during gear operation while minimizing bearing load and wear, thereby extending equipment lifespan and enhancing operational efficiency.
2. It offers broad media compatibility, capable of conveying oils across multiple viscosity grades and viscous media. Whether handling low-viscosity lubricants or high-viscosity heavy oils, it ensures stable delivery performance.
3. This equipment features a reliable overload protection design with a built-in safety valve, effectively safeguarding the pump body and piping system when high-pressure sealing occurs within the pump or discharge pipeline.
Performance Data:
| Model |
Capacity Q |
Speed |
Exhaust Pressure |
Motor Power |
| m³/h |
l/min |
r/min |
Mpa |
Kw |
| KCB-18.3 |
1.1 |
18.3 |
1400 |
1.45 |
1.5 |
| KCB-33.3 |
2 |
33.3 |
1420 |
1.45 |
2.2 |
| KCB-55 |
3.3 |
55 |
1400 |
0.33 |
1.5 |
| KCB-83.3 |
5 |
83.3 |
1420 |
0.33 |
2.2 |
| KCB-135 |
8 |
135 |
940 |
0.33 |
2.2 |
| KCB-200 |
12 |
200 |
1440 |
0.33 |
4 |
| KCB-300 |
18 |
300 |
960 |
0.36 |
5.5 |
| KCB-483.3 |
29 |
483.3 |
1440 |
0.36 |
7.5 |
| KCB-633 |
38 |
633 |
970 |
0.28 |
11 |
| KCB-960 |
58 |
960 |
1470 |
0.28 |
11 |
| KCB-1200 |
72 |
1200 |
740 |
0.6 |
37 |
| KCB-1600 |
96 |
1600 |
980 |
45 |
| KCB-1800 |
110 |
1800 |
740 |
0.6 |
55 |
| KCB-2500 |
150 |
2500 |
985 |
75 |
| KCB-2850 |
170 |
2850 |
740 |
0.6 |
90 |
| KCB-3800 |
230 |
3800 |
989 |
110 |
| KCB-4100 |
245 |
4100 |
743 |
0.6 |
132 |
| KCB-5400 |
325 |
5400 |
989 |
160 |
| KCB-5600 |
330 |
5600 |
744 |
0.6 |
160 |
| KCB-7600 |
460 |
7600 |
989 |
200 |
| KCB-7000 |
420 |
7000 |
744 |
0.6 |
185 |
| KCB-9600 |
570 |
9600 |
989 |
250 |
| KCB-13000 |
800 |
13000 |
490 |
0.6 |
315 |
