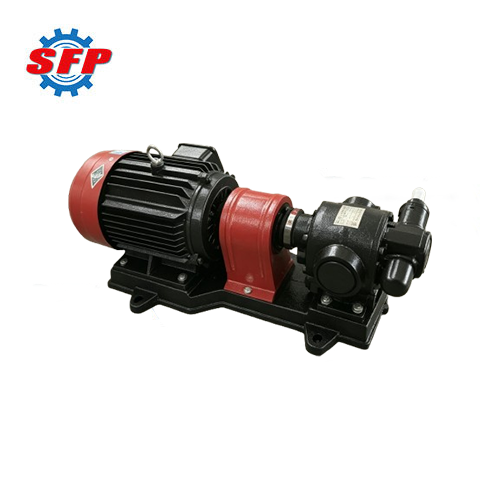

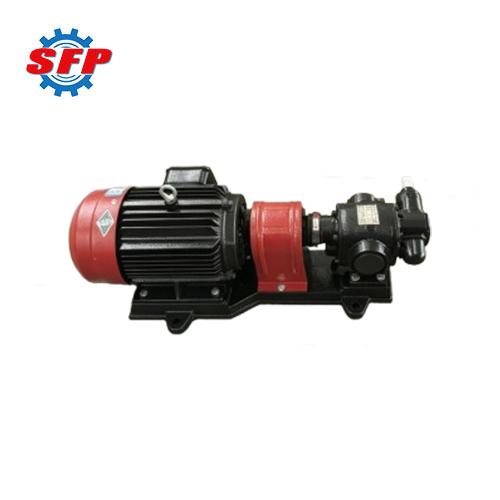

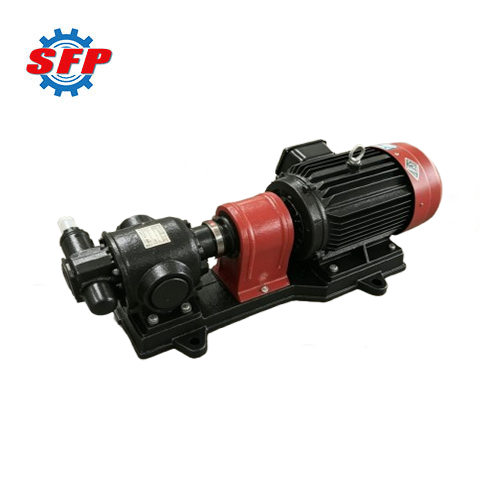

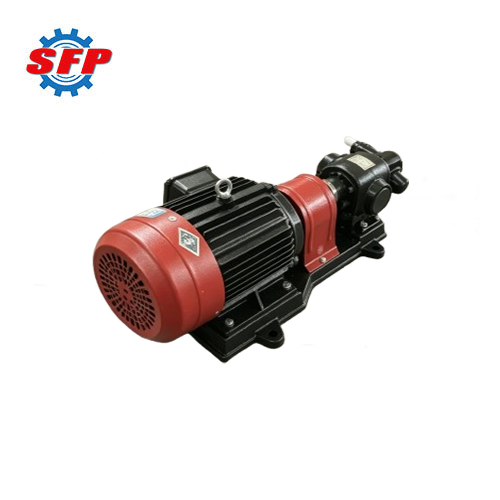

KCB gear pumps are generally applied in industries such as petroleum, machinery, chemicals, resins, and grain processing to handle oils and oil-like media that do not contain solid particles or fibers, effectively meeting the varying operational load requirements from fueling stations to large-scale oil unloading pump stations. This product series primarily consists of key components such as the pump body, drive and driven gears, shaft assembly, bearing housing, safety relief valve, and shaft end seal, forming a compact and rational overall structure that does not occupy excessive installation space, making it suitable for use even in confined areas.
Product Details:
KCB pump integrates key components such as the pump body, drive and driven gears, shaft assembly, bearing housing, safety relief valve, and shaft end seal. When the motor drives the drive gear to rotate, it causes the driven gear to rotate in the opposite direction against the gear mesh, creating an expanding gap that generates a vacuum, thereby drawing in the fluid. During continuous rotation, the volume between the gears gradually decreases, forcing the fluid out and thereby achieving stable, continuous positive displacement delivery.
Application:
KCB series horizontal gear pumps have steadily become a common choice for powering the transfer of oil-based media. Whether serving as the primary pump for long-distance crude oil transmission at oilfield sites or as the main unit for unloading oil at coastal ports and docks, these pumps ensure efficient fluid-handling operations. On the one hand, this series of pumps can serve as fuel supply booster pumps and injection pumps in fuel systems, while on the other hand, they can also be applied in thermal oil circulation systems for textile printing and dyeing, as well as in edible oil production lines at grain processing plants.
Feature:
1. This series of gears undergoes a rigorous heat treatment process, resulting in a surface with high hardness and strong wear resistance, which prevents excessive wear or pitting on the gear teeth even during prolonged continuous operation.
2. It is equipped with oil drainage and return functions, which effectively balance the hydraulic pressure on both sides of the gear face during operation, reducing the load on the bearings and ensuring smoother and quieter operation.
3. This pump can self-prime without external assistance, making it convenient to use and particularly suitable for certain specialized operating environments.
Performance Data:
| Model |
Capacity Q |
Speed |
Exhaust pressure P |
Motor |
| m³/h |
l/min |
r/min |
Mpa |
Power Kw |
| KCB-18.3 |
1.1 |
18.3 |
1400 |
1.45 |
1.5 |
| KCB-33.3 |
2 |
33.3 |
1420 |
1.45 |
2.2 |
| KCB-55 |
3.3 |
55 |
1400 |
0.33 |
1.5 |
| KCB-83.3 |
5 |
83.3 |
1420 |
0.33 |
2.2 |
| KCB-135 |
8 |
135 |
940 |
0.33 |
2.2 |
| KCB-200 |
12 |
200 |
1440 |
0.33 |
4 |
| KCB-300 |
18 |
300 |
960 |
0.36 |
5.5 |
| KCB-483.3 |
29 |
483.3 |
1440 |
0.36 |
7.5 |
| KCB-633 |
38 |
633 |
970 |
0.28 |
11 |
| KCB-960 |
58 |
960 |
1470 |
0.28 |
11 |
| KCB-1200 |
72 |
1200 |
740 |
0.6 |
37 |
| KCB-1600 |
96 |
1600 |
980 |
45 |
| KCB-1800 |
110 |
1800 |
740 |
0.6 |
55 |
| KCB-2500 |
150 |
2500 |
985 |
75 |
| KCB-2850 |
170 |
2850 |
740 |
0.6 |
90 |
| KCB-3800 |
230 |
3800 |
989 |
110 |
| KCB-4100 |
245 |
4100 |
743 |
0.6 |
132 |
| KCB-5400 |
325 |
5400 |
989 |
160 |
| KCB-5600 |
330 |
5600 |
744 |
0.6 |
160 |
| KCB-7600 |
460 |
7600 |
989 |
200 |
| KCB-7000 |
420 |
7000 |
744 |
0.6 |
185 |
| KCB-9600 |
570 |
9600 |
989 |
250 |
| KCB-13000 |
800 |
13000 |
490 |
0.6 |
315 |
