KCB Series Gear Pump for Oil
KCB Series Gear Pump for Oil
KCB Series Gear Oil Transfer Pump
KCB series gear oil transfer pump is a high-flow external gear pump, which is specially used for conveying all kinds of oil and high viscosity similar to oil at temperatures below 200°C. It is designed for fluid transportation in various industrial applications, including the petrochemical industry, machinery manufacturing industry, food processing industry and shipbuilding industry.
Power: 1.5-350Kw
Head Lift: 28-145m
Flow Rate: 1.1-900m3/h
Product Description
Summarize:

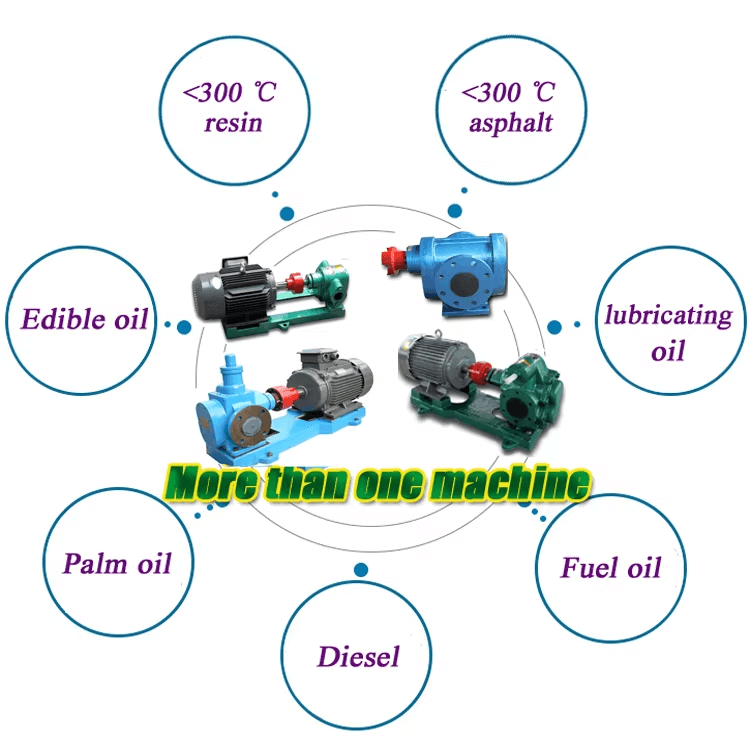

KCB series gear oil transfer pump is designed for handling all kinds of oil and high viscosity similar to oil at temperatures below 200°C, including crude oil, diesel oil, lubricating oil, animal and vegetable oils, and so on. Therefore, it is an ideal choice for fluid transfer in various industrial applications. This machine uses high-quality materials to manufacture gears and pump bodies to ensure stable performance during long-term operation and reduce the probability of failure. At the same time, the advanced gear design and precise manufacturing process make the pump more efficient and can effectively reduce energy consumption during the transportation process.


Product Details:

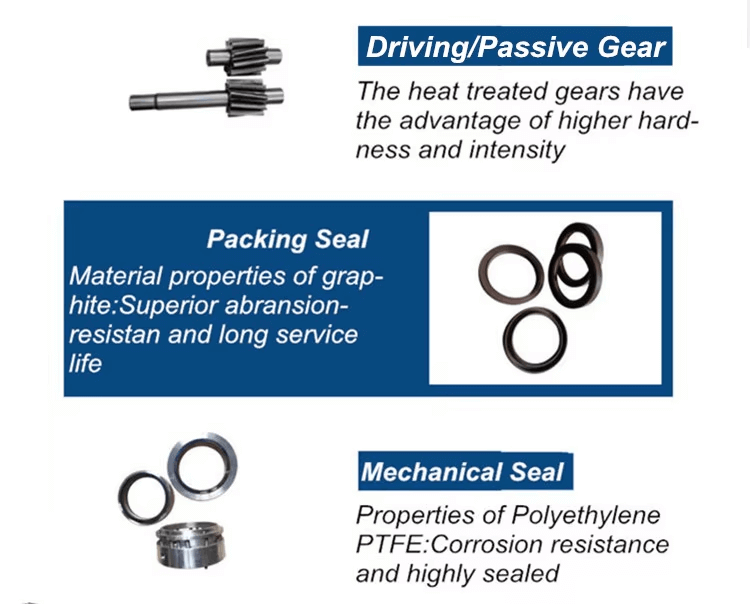

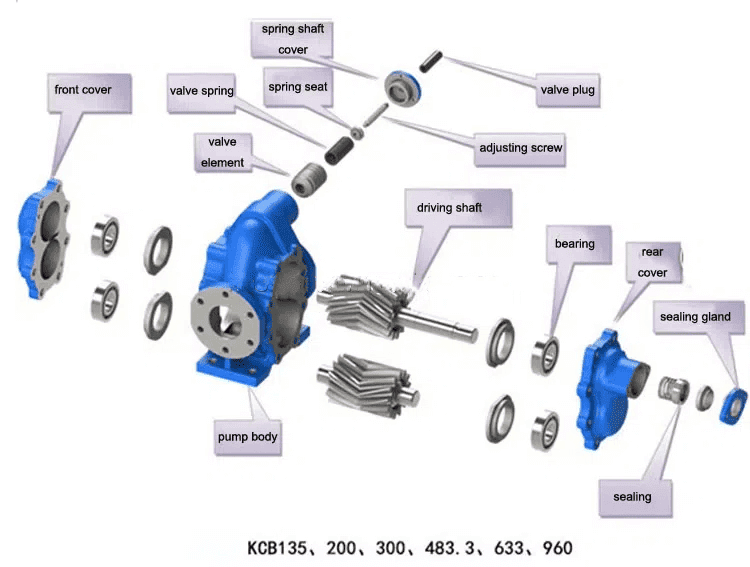

1. KCB series gear oil transfer pumps mainly include gear oil pump gears, shafts, pump bodies, valves and shaft end seals. The gears are heat-treated for high hardness and strength, and are installed together with the shaft to run in replaceable bushings. When the pump is working, the parts in the pump are automatically lubricated by the output medium.
2. This pump is designed with reasonable discharge and return grooves so that the gears are subjected to minimum torque during operation. Meanwhile, the pump is designed with a safety valve for overload protection, and the full return pressure of the safety valve is 1.5 times of the rated discharge pressure of the pump.


Application:
1. Machinery Industry: In machine tools, construction machinery and other equipment, to provide stable oil delivery for the lubrication system of the equipment.
2. Food Processing Industry: In some processing processes that require the use of edible oils and fats, such as the circulation of oils and fats in the production line of fried food.
3. Marine Industry: KCB gear pumps are often used in the fuel delivery and lubricating oil circulation systems on ships.
4. Petrochemical Industry: This machine is used in oil refineries, chemical plants and other places to transport crude oil, diesel oil, lubricating oil and other oils.
Advantage:
1. High efficiency: Advanced gear design and precise manufacturing process make the pump more efficient, which can effectively reduce energy consumption in the conveying process.
2. Stable performance: The use of high-quality materials to manufacture gears and pump body, to ensure stable performance over a long period of time, reducing the probability of failure.
3. Good self-priming ability: It can suck in the oil by itself without the aid of external force, which is convenient to use and especially suitable for some special working environments.
4. Wide applicability: It can convey many kinds of oils and viscous media with different viscosity, whether it is low-viscosity lubricating oil or high-viscosity heavy oil, all of them can be conveyed stably.
5. Low-noise operation: Optimized gear meshing structure and vibration-damping design produce low noise during operation, providing a quiet working environment.
Performance Data:
Model Capacity Q Speed Exhaust Pressure P Motor
M³/H L/Min R/Min Mpa Power Kw
KCB-18.3 1.1 18.3 1400 1.45 1.5
KCB-33.3 2 33.3 1420 1.45 2.2
KCB-55 3.3 55 1400 0.33 1.5
KCB-83.3 5 83.3 1420 0.33 2.2
KCB-135 8 135 940 0.33 2.2
KCB-200 12 200 1440 0.33 4
KCB-300 18 300 960 0.36 5.5
KCB-483.3 29 483.3 1440 0.36 7.5
KCB-633 38 633 970 0.28 11
KCB-960 58 960 1470 0.28 11
KCB-1200 72 1200 740 0.6 37
KCB-1600 96 1600 980 45
KCB-1800 110 1800 740 0.6 55
KCB-2500 150 2500 985 75
KCB-2850 170 2850 740 0.6 90
KCB-3800 230 3800 989 110
KCB-4100 245 4100 743 0.6 132
KCB-5400 325 5400 989 160
KCB-5600 330 5600 744 0.6 160
KCB-7600 460 7600 989 200
KCB-7000 420 7000 744 0.6 185
KCB-9600 570 9600 989 250
KCB-13000 800 13000 490 0.6 315
