CBN series small gear pumps, as the power element in the hydraulic system, are widely used in the fields of automobile, lifting and transportation machinery, construction machinery, mining machinery, agricultural machinery, light industrial machinery and so on. At the same time, because the pump parts are made of durable stainless steel acid and corrosion-resistant materials, it can be applied to food, beverage, daily chemical and pharmaceutical industries. The product adopts bridge-type external belt wheel drive and motor direct connection, featuring low rotational speed, large suction range, high efficiency and low noise.
Product Details:

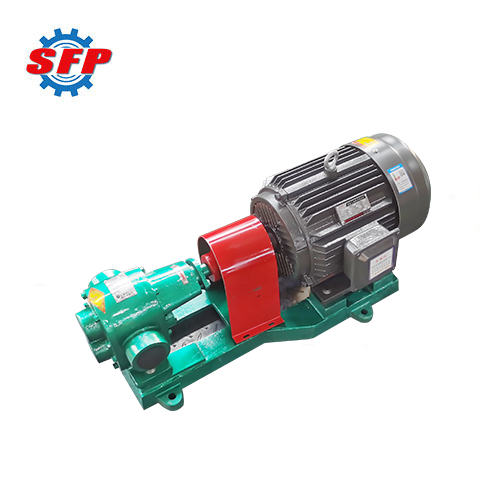

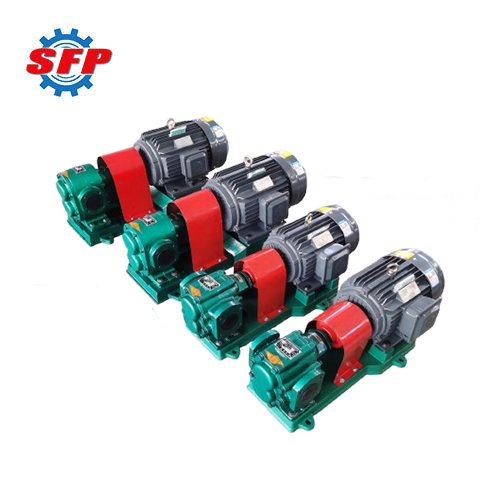

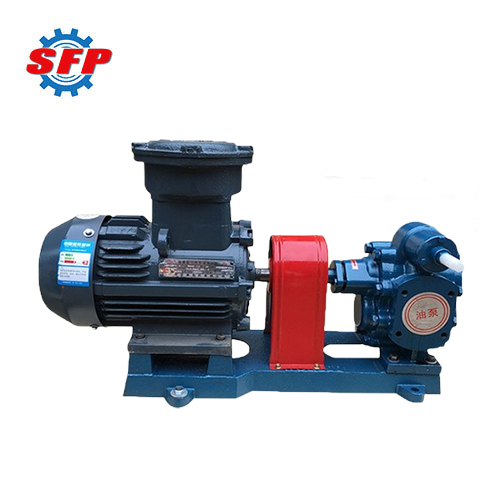

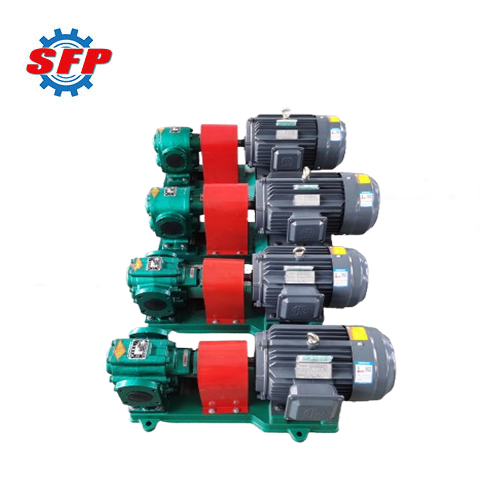

CBN series small gear oil pumps are consist of pump body, pump cover, gears, shaft end seal and other main components. The product features a bridge-type external belt pulley drive direction and a motor direct connection direction. The seal utilizes either a mechanical seal or an imported packing seal, allowing you to select the seal form according to the type of conveyed liquid.
Application:
CBN series gear oil pumps are specially designed for conveying all kinds of viscous liquids, which can be used under the conditions of temperature lower than 230℃ and viscosity about 2000mm²/s, such as paint, rosin, paraffin, soap, sludge, asphalt, high viscosity oil, butter, syrup, sauce products, grease, toothpaste, pharmaceutical raw materials and all kinds of liquid pasty products. It can be used in hydraulic systems for automobiles, construction machinery, lifting and transportation machinery, mining machinery, light industrial machinery, agricultural machinery and industrial automation.
Feature:
1. The use of advanced gear design and manufacturing process, low friction loss, high energy conversion rate, realizing efficient fluid transmission, can reduce the energy consumption of hydraulic system.
2. CBN gear pumps are compact in design, small in size and light in weight, easy to install and maintain, and applicable to a variety of hydraulic systems, especially for applications with limited space.
3. High flow rate and stable pressure can meet the needs of various hydraulic systems and maintain stable output even in high or low-temperature environments.
Performance Data:
| Model |
Inlet/Outlet
mm |
Flow |
Discharge Pressure
MPa |
Motor Power
KW |
|
|
m³/h |
L/min |
|
|
| CBN-4 |
32 |
4 |
66 |
0.75 |
1.5 |
| CBN-7 |
40 |
7 |
116 |
0.75 |
3 |
| CBN-13 |
50 |
13 |
216 |
0.75 |
5.5 |
| CBN-18 |
70 |
18 |
300 |
0.6 |
7.5 |
| CBN-30 |
80 |
30 |
500 |
0.6 |
11 |
| CBN-38 |
100 |
38 |
633 |
0.6 |
15 |
| CBN-45 |
100 |
45 |
750 |
0.6 |
18.5 |
| CBN-60 |
100 |
60 |
1000 |
0.4 |
22 |
