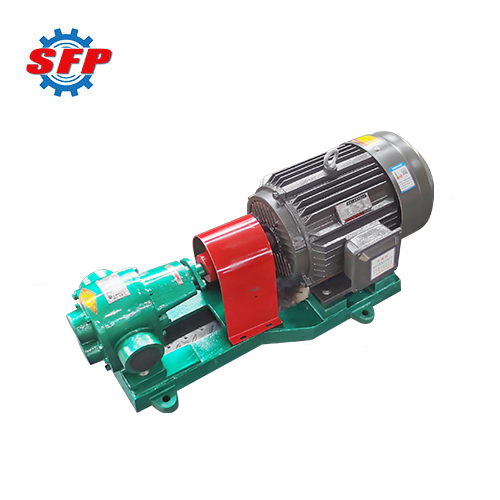

CBN series internal gear pump, as a power component in hydraulic systems, can be widely used in transportation, construction, mining, agriculture, and chemical industries. This pump is also capable of handling high-viscosity media such as rosin, lubricating oil, asphalt, and paraffin, provided that the temperature is below 230°C and the viscosity is less than 2000 mm²/s. This product features a bridge-type external pulley drive directly connected to the motor, and boasts characteristics such as low speed, wide suction range, high efficiency, and low noise, making it outstanding in both performance and reliability.
Product Details:
CBN series gear oil pump consists of a pump body, pump cover, gears, shaft end seals, and other major components. As the gears rotate, the volume of the working chamber gradually increases, creating a local vacuum. Under atmospheric pressure, the fluid is drawn into the working chamber. As the gears continue to rotate, the volume of the working chamber gradually decreases, causing the fluid to be compressed, and it is ultimately discharged through the outlet. Through the continuous rotation of the gears, the fluid is continuously drawn in and discharged, thereby achieving continuous and stable flow.
Application:
CBN series internal gear oil pumps are specifically designed for conveying various high-viscosity liquids, capable of handling media with temperatures below 230°C and viscosities of approximately 2000 mm²/s, such as paint, rosin, paraffin, soap, asphalt, high-viscosity oil, grease, syrup, sauce products, lubricating grease, toothpaste, pharmaceutical raw materials, and more. They are applicable to fields such as automotive hydraulic systems, construction machinery, lifting and transportation, mining, light industrial machinery, agriculture, and industrial automation.
Feature:
1. With advanced gear design and manufacturing technology, low friction loss, and high energy conversion efficiency, it achieves efficient fluid transmission and reduces the energy consumption of hydraulic systems.
2. CBN series gear pump is compact, small, and lightweight, making it easy to install and maintain. It is suitable for various hydraulic systems, especially those with limited space.
3. Its high flow and stable pressure meet the needs of various hydraulic systems and maintain stable output even in high-temperature or low-temperature environments.
Performance Data:
| Model |
Inlet/Outlet
mm |
Flow |
Discharge Pressure
MPa |
Motor Power
KW |
|
|
m³/h |
L/min |
|
|
| CBN-4 |
32 |
4 |
66 |
0.75 |
1.5 |
| CBN-7 |
40 |
7 |
116 |
0.75 |
3 |
| CBN-13 |
50 |
13 |
216 |
0.75 |
5.5 |
| CBN-18 |
70 |
18 |
300 |
0.6 |
7.5 |
| CBN-30 |
80 |
30 |
500 |
0.6 |
11 |
| CBN-38 |
100 |
38 |
633 |
0.6 |
15 |
| CBN-45 |
100 |
45 |
750 |
0.6 |
18.5 |
| CBN-60 |
100 |
60 |
1000 |
0.4 |
22 |
