2CY Series Gear Oil Transfer Pump
2CY Series Gear Oil Transfer Pump

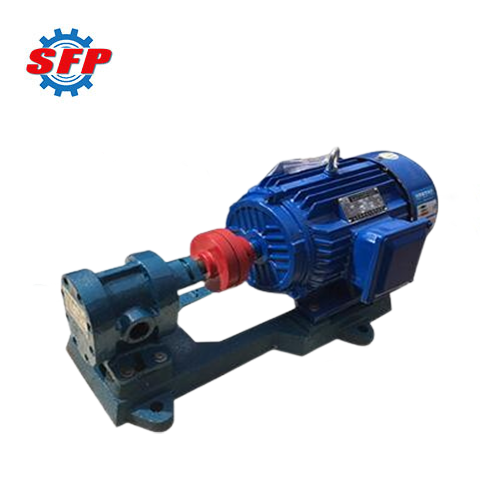

2CY Series Horizontal Gear Pump
2CY series horizontal gear pump applies to handle lubricating oil or other liquids of a similar nature to lubricating oil without solid particles and fibers, non-corrosive, temperature not higher than 200 ℃, viscosity of 5-1500 cSt. And it is an ideal choice for lubrication of conveyor systems, pressurization and injection of oil supply systems, and all types of industrial applications. This machine utilizes the principle of internal and external gear transmission, featuring simple structure, smooth operation and low noise.
Power: 1.1-75kW
Viscosity: 5-1500cSt
Discharge Pressure: 7.5/10/25bar
Product Description
Summarize:

2CY series horizontal gear pump is commonly used to convey non-corrosive lubricating oils or equivalent liquids at temperatures below 300°C, free of solid particles and fibers. It can be used in oil depots, docks, ships, factories, farms, mines and other industrial fields, and can also be used as ideal equipment in oil transmission systems, fuel systems, hydraulic transmission systems and other fields. This pump has a simple and compact structure, stable and reliable performance, good self-priming and so on.
Product Details:

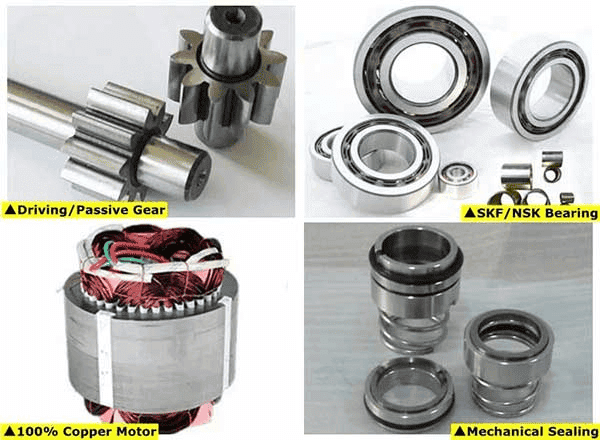

2CY series horizontal gear pump is mainly composed of gears, shafts, pump covers, bearing bushings, bearing seals and other components. The product is treated with special nitriding treatment, which has high hardness and wear resistance, and all the running parts inside the pump are lubricated with the medium it conveys. In addition, the four bearing bushings inside the pump can be floatingly installed inside the pump body, and the end gap can be automatically adjusted according to the working pressure. As a result, the pump pressure is stable, the output flow rate is less pulsating, and the volumetric efficiency is high.




Application:
1. Fuel System: It can be used as a fuel pump for conveying, pressurizing and injecting, which is applied in fuel supply system of automobiles, ships and so on.
2. Hydraulic Transmission System: It can provide power for hydraulic system and is widely used in various industrial equipments and machines which need hydraulic power.
3. Oil Transfer System: This machine can be used as transferring and pressurizing pumps, which are used for transferring all kinds of lubricating oils and fuel oils in petrochemical and oil refining industries.
4. Industrial Field: In metallurgy, mining, electric power, building materials and other industries, used as a lubricant pump, for a variety of mechanical equipment lubrication system to provide lubricating oil.
Feature:
1. Wide range of application: Including but not limited to water, oil, solvents, etc., strong adaptability.
2. Compact structure: The overall structure is compact, small footprint, easy to install and maintain.
3. High-efficiency conveying performance: The use of cutting-edge technology to ensure the uniform flow of liquid in the pump body, providing stable and reliable flow output.
4. Low-noise operation: The use of unique gear tooth design and high-precision processing technology, running noise is extremely low, the working environment is more quiet and comfortable.
5. Durable materials: The key components are made of high-quality alloy steel or cast iron, after special heat treatment to improve wear resistance and corrosion resistance, prolonging the service life.
Performance Data:
Model Capacity Q Pressure Power Speed

Inlet/Outlet Diameter
M3/h L/min M pa Kw r/min
2CY-0.6/2.5 0.6 10




2.5


61
940

G3/4”
2CY-1.08/2.5 1.08 18 1400
2CY-1.5/2.5 1.5 25


63
960



G1”
2CY-2.1/2.5 2.1 35 1420
2CY-3/2.5 3 50 1440
2CY-4 4 66 0.75


65
960
2CY-4.2/2.5 4.2 70


2.5
1440 G1 1/4”
2CY-5-2.5 5 83 960



G1 1/2”
2CY-6-2.5 6 100 67 1440
2CY-7 7 116 0.75 63 960
2CY-7.5/2.5 7.5 125




2.5
67 1440
2CY-8.5/2.5 8 135

69
960

G2’
2CY-12/2.5 12 200 1450
2CY-18/2.5 18 300


70
970


80mm
2CY-20/2.5 20 335 1470
2CY-30/2.5 30 500 1470
2CY-38/1.0 30 633 1.0 72 980 100mm
