Product Description

Summarize:

2CY series gear oil pumps are external gear pumps with compact structure, high conveying efficiency, stable operation and excellent performance. It is mainly used for conveying all kinds of lubricating oil, fuel oil, hydraulic oil and other non-corrosive lubricating oil liquids with temperature lower than 300°C and free of solid particles and fibers. The pumps can be used in many fields such as mechanical lubrication system, oil transmission system, hydraulic transmission system and other industries such as wharves, ships, oil depots, mines, factories and so on.

Product Details:

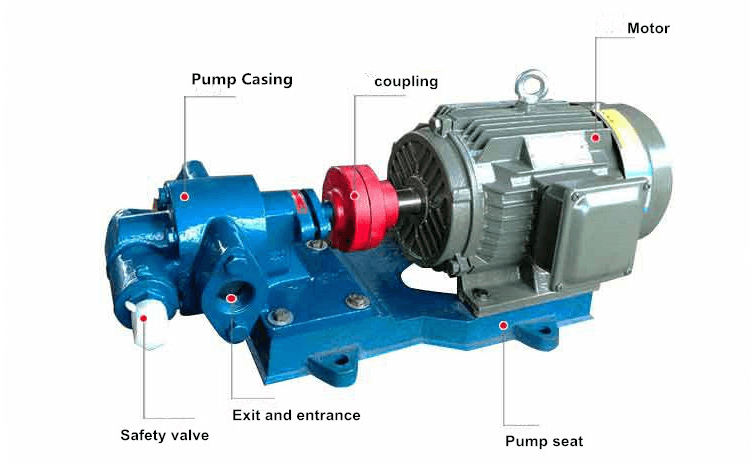

2CY series horizontal gear oil pumps are mainly made up of gears, shafts, pump covers, bearing bushings, bearing seals, etc. The gears are nitrided and have the advantages of high hardness and high strength, so the products have a long service life. The four bearing bushings in the pump can be mounted on the pump body floatingly, and the end face clearance is automatically adjusted with the size of the working pressure, so the pressure in the pump is stable, the output flow rate is small, and the volumetric efficiency is high.

Application:

1. It can provide power for hydraulic system, widely used in various industrial equipment and machines which need hydraulic power.
2. The equipment can be applied as transfer pumps, pressurized pumps and jet pumps, and applied to fuel supply systems of automobiles and ships.
3. This pump is able to be utilized as transfer pumps and pressurized pumps for transferring various lubricating oils and fuel oils in petrochemical and oil refining industries.
4. It is used as lubricating oil pump in metallurgy, mining, electric power, building materials and other industries to provide lubricating oil for the lubricating system of various mechanical equipments.

Feature:

1. Its overall structure is compact, small footprint, easy to install and maintain.
2. The use of cutting-edge technology to ensure that the liquid flow in the pump body is uniform, stable and reliable flow output.
3. The key parts are made of high-quality alloy steel or cast iron, after special heat treatment, to improve abrasion sand corrosion resistance, to extend the service life.
4. Adopting unique gear tooth design and high precision processing technology, the noise is extremely low during operation, making the working environment more quiet and comfortable.

Performance Data:

Model	Capacity Q		Pressure	Power	Speed	Inlet/Outlet Diameter
Model	M3/h	L/min	M pa	Kw	r/min	Inlet/Outlet Diameter
2CY-0.6/2.5	0.6	10	2.5	61	940	G3/4”
2CY-1.08/2.5	1.08	18		61	1400	G3/4”
2CY-1.5/2.5	1.5	25		63	960	G1”
2CY-2.1/2.5	2.1	35			1420
2CY-3/2.5	3	50			1440
2CY-4	4	66	0.75	65	960
2CY-4.2/2.5	4.2	70	2.5		1440	G1 1/4”
2CY-5-2.5	5	83			960	G1 1/2”
2CY-6-2.5	6	100		67	1440
2CY-7	7	116	0.75	63	960
2CY-7.5/2.5	7.5	125	2.5	67	1440
2CY-8.5/2.5	8	135		69	960	G2’
2CY-12/2.5	12	200		69	1450	G2’
2CY-18/2.5	18	300		70	970	80mm
2CY-20/2.5	20	335			1470
2CY-30/2.5	30	500			1470
2CY-38/1.0	30	633	1.0	72	980	100mm
