2CY Series Fuel Oil Gear Pump
2CY Series Fuel Oil Gear Pump
2CY Series Fuel Oil Gear Pump

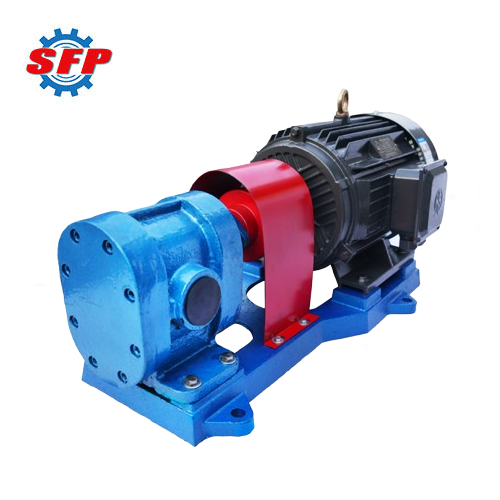

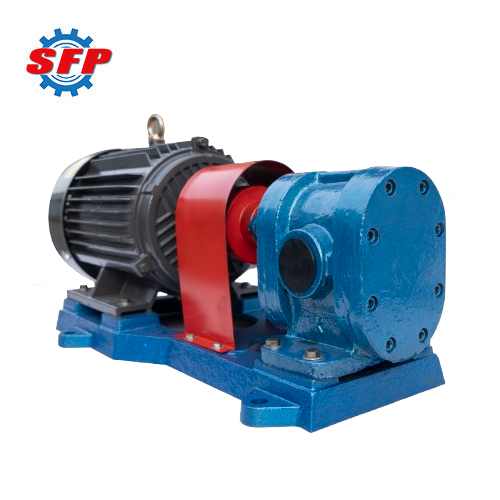

2CY series fuel oil gear pumps are suitable for conveying lubricating oil and other liquids with similar properties to lubricating oil, which are free of solid particles and fibers and non-corrosive. It is ideal for conveyor system lubrication, oil supply system pressurization and injection, and a variety of industrial applications. This machine has the features of simple structure, smooth running, long service life, low noise and easy maintenance.
Power: 1.1-75kW
Viscosity: 5-1500cSt
Discharge Pressure: 7.5/10/25bar
Product Description
Summarize:


2CY series fuel oil gear pump is an ideal choice for transfer systems, fuel supply system pressurization and injection, and a variety of industrial applications by its compact structure, high conveying efficiency, stable operation and high performance ability. It is adapted to handle non-corrosive lubricating oils or equivalent fluids at temperatures below 300°C, free of solid particles and fibers. This equipment can be used in oil depots, terminals, ships, factories, farms, mines and other industrial applications.

Product Details:

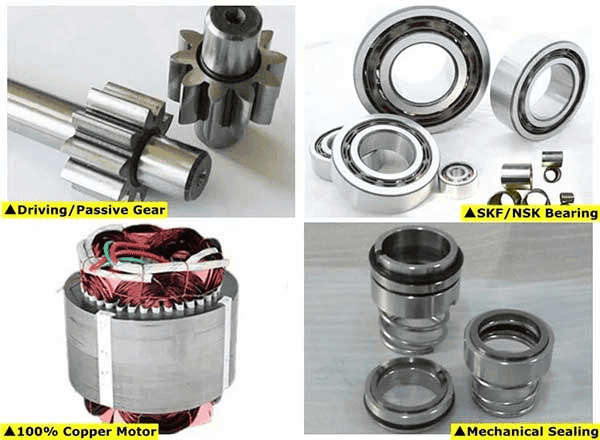

2CY series fuel oil gear pumps are mainly composed of gears, shafts, pump covers, bearing bushings, bearing seals and so on.  Gears undergo nitriding treatment to have high hardness and wear resistance, and all operating components inside the pump are lubricated with the medium they transport. The four bearing sleeves inside the pump can be installed floating inside the pump body, and the end face clearance is automatically adjusted according to the working pressure. Therefore, the pressure of the pump is stable, the output flow pulsation is small, and the volumetric efficiency is high.




Application:
1. Fuel system: The equipment can be used as transfer, pressurized and injection fuel pumps, which are applied to the fuel supply system of automobiles, ships.
2. Hydraulic transmission system: It can provide power for the hydraulic system and is widely used in various industrial equipment and machines that need hydraulic power.
3. Oil transfer system:  It can be used as a transfer pump and pressurized pump, used in the petrochemical and refining industries for the transfer of various lubricants and fuel oil.
4. Industrial field: It is used as a lubricating oil pump in metallurgy, mining, electric power, building materials and other industries to provide lubricating oil for the lubricating system of various mechanical equipment.

Feature:
1. Compact structure: Its overall structure is compact, small footprint, easy to install and maintain.
2.  High-efficiency conveying performance: Adopting leading-edge technology to ensure uniform flow of liquid in the pump body, providing stable and reliable flow output.
3. Durable material: The key parts are made of high-quality alloy steel or cast iron, which are specially heat-treated to improve abrasion resistance and corrosion resistance, and prolong the service life.

4. Low-noise operation: With a unique gear tooth design and high-precision processing technology, the noise level is extremely low during operation, making the working environment quieter and more comfortable.
Performance Data:

Model Capacity Q Pressure Power Speed

Inlet/Outlet Diameter
M3/h L/min M pa Kw r/min
2CY-0.6/2.5 0.6 10




2.5


61
940

G3/4”
2CY-1.08/2.5 1.08 18 1400
2CY-1.5/2.5 1.5 25


63
960



G1”
2CY-2.1/2.5 2.1 35 1420
2CY-3/2.5 3 50 1440
2CY-4 4 66 0.75


65
960
2CY-4.2/2.5 4.2 70


2.5
1440 G1 1/4”
2CY-5-2.5 5 83 960



G1 1/2”
2CY-6-2.5 6 100 67 1440
2CY-7 7 116 0.75 63 960
2CY-7.5/2.5 7.5 125




2.5
67 1440
2CY-8.5/2.5 8 135

69
960

G2’
2CY-12/2.5 12 200 1450
2CY-18/2.5 18 300


70
970


80mm
2CY-20/2.5 20 335 1470
2CY-30/2.5 30 500 1470
2CY-38/1.0 30 633 1.0 72 980 100mm
