Semi-automatic milk filling machine can efficiently and accurately fill liquid, semi-fluid, high viscosity, paste and other media in the container. With its unique design, superior performance, convenient adjustment, high filling accuracy and easy operation, this product is widely used in food, beverage, chemical, pharmaceutical, cosmetic and other fields. Furthermore, in order to ensure the hygienic type and safety of the filling liquid, the part of the product in contact with the material is made of food-grade stainless steel.
Application:
1. Beverage industry: Liquor, mineral water, fruit juice, beverages and milk products, etc.
2. Pharmaceutical industry: It is suitable for filling cough syrup, oral liquid, patchouli liquid and other pharmaceutical preparations.
3. Daily chemical industry: It can be used for filling shampoo, shower gel, hand soap, face cream and other daily chemical products.
4. Food industry: Available for filling beef sauce, jam, bean paste, chili sauce, spicy sauce, tempeh and other sauces, as well as edible oil, peanut oil, soybean oil, laundry detergent, glass water, antifreeze and other liquid products.
Feature:
1. The machine is small, has a full control system, is simple to use, and is highly automated.
2. A high-speed filling valve ensures that the liquid is precisely at the right level and that no waste occurs.

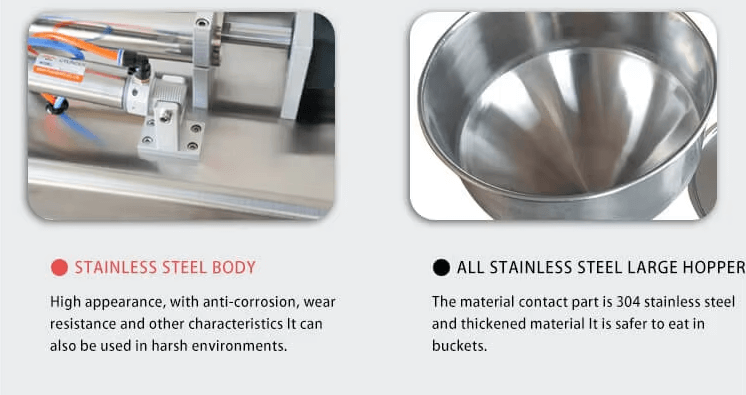

3. To facilitate easy cleaning, the portions touching media are composed of 304 and lack process blind angles.
4. The operator just needs to swap out the arc guide plate, inlet bottle screw, and star wheel to alter the bottle's shape.
5. The machine has a comprehensive overload prevention mechanism that can efficiently secure both the operator and the equipment.
6. The control system's functions include production counting, bottle block auto-stop, cap shortage detection, and producing speed control.

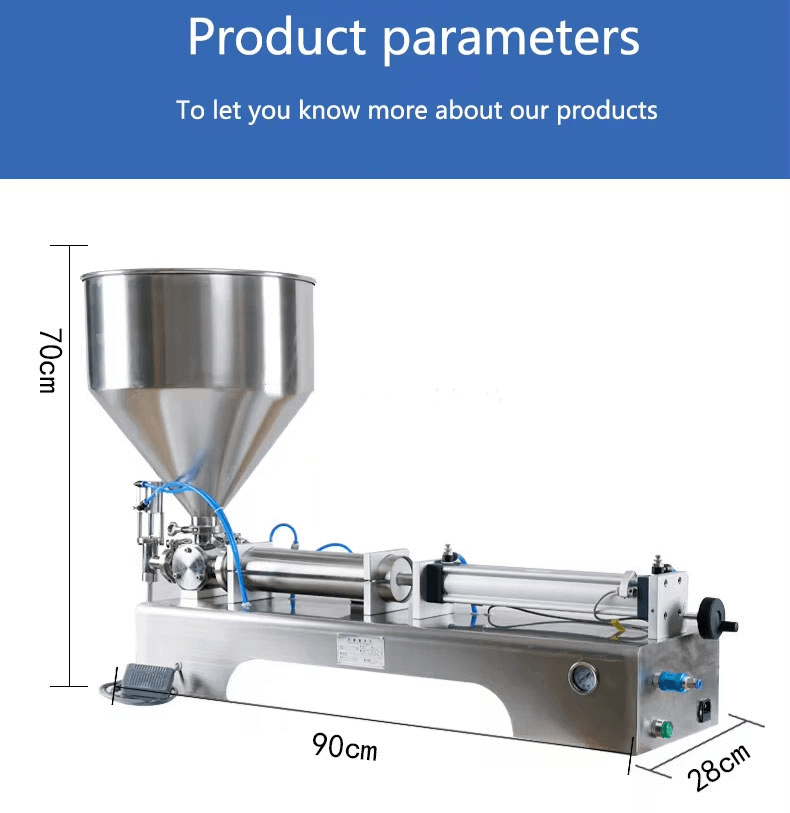

Performance Data:
| Model |
SF-C1000 |
| Filling Method |
with nozzles |
| Filling Range |
80cc-1000cc |
| Filling Speed |
20-60 BPM |
