Summarize:
.jpg)

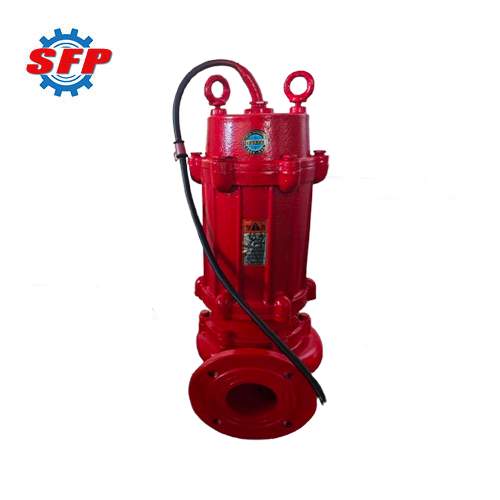

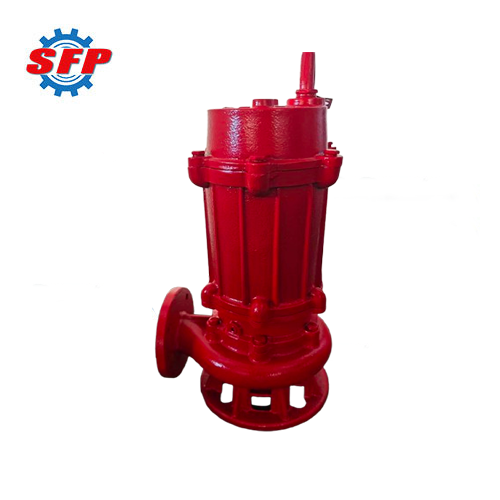

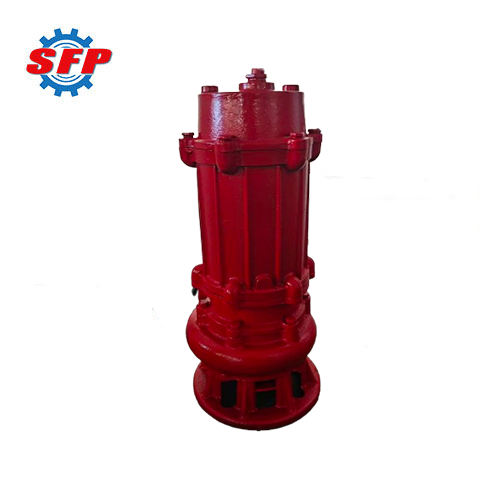

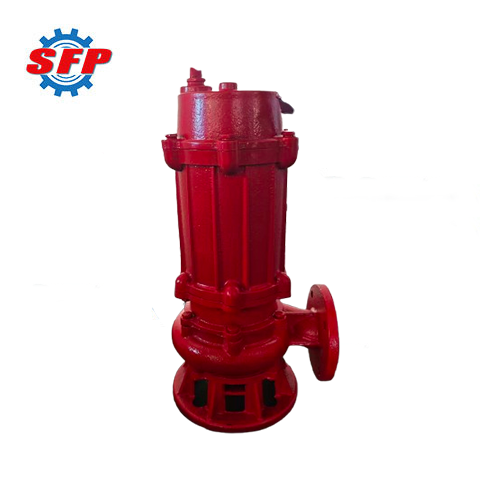

WQ submersible water pump, with its excellent anti-wrapping and clog-free capabilities, is purpose-built for handling complex liquid mixtures containing solid particles and fibrous materials in industrial wastewater, municipal engineering, urban sewage, environmental protection, mining, and other fields. The pump utilizes a hydraulic assembly consisting of a flow-channel impeller and a volute casing, a design that effectively reduces the overall length of the unit, making it more compact while also minimizing vibration and noise during operation. In addition, the impeller undergoes rigorous dynamic and static balancing to ensure that no significant vibration occurs during both no-load and loaded operation, thereby extending the service life of wear-prone components such as bearings.
Product Details:
When the WQ series centrifugal pump is powered on, the rotor directly drives the pump shaft and impeller to rotate, causing the impeller blades to propel the liquid medium at high speed, flinging the medium toward the edge of the pump casing under centrifugal force and creating a high-pressure zone. In contrast, a low-pressure zone forms at the center of the impeller, drawing in liquid from the outside continuously under atmospheric pressure. The flung-out fluid enters the volute-shaped passageway of the pump casing, where its velocity reduces and pressure increases, eventually being discharged through the outlet.
.png)
Application:
1. This series performs exceptionally well in industrial applications such as wastewater pumping and drainage, the treatment of fiber-containing wastewater in paper mills, and circulating water systems in steel smelting and power plants.
2. In municipal engineering, this product meets the conveyance requirements of wastewater treatment plants, stormwater drainage systems, and municipal water supply facilities.
3. In the agricultural sector, it can be used for farm irrigation, manure treatment at livestock farms, pumping in rural biogas digesters, and slurry discharge.
Feature:
1. This product features a large-channel impeller capable of handling solid particles up to approximately 50% of the pump’s diameter, thereby preventing operational failures caused by fiber entanglement and particle jamming.
2. The pump is equipped with a float switch that automatically controls the pump’s start and stop based on changes in the required liquid level.
3. Its mechanical seal is made of hard, corrosion-resistant materials, enabling trouble-free continuous operation for up to 8,000 hours.
.PNG)
.PNG)
.png)
.png)
.png)
