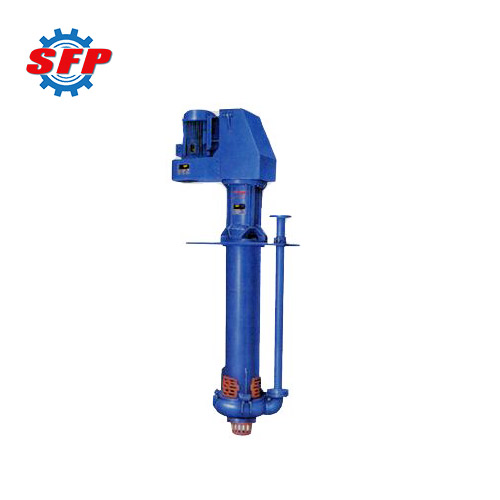

Top Quality SP/SPR Series Vertical Mining Centrifugal Slurry Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

Automatic Water Filling Machine for Sale

Mineral Water Filling Machine

ISW Series Pipeline Centrifugal Pump

LPG Gas Transfer Pump

Electric G Series Screw Pump

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

SP/SPR series vertical centrifgual slurry pump is a new generation of high-efficiency, wear-resistant and energy-saving vertical slurry pump developed by our factory. According to the principle of minimum loss, the geometry of the flow parts conforms to the flow state of the medium, which reduces the local and along the hydraulic loss of eddy current and impact. Thereby reducing the wear of the flow parts, improving the hydraulic efficiency and reducing the operating noise and vibration, the flow parts of this series of pumps are made of high-hardness and high-chromium alloy material, which has high anti-wear, anti-corrosion, and impact-resistant properties, so that it has a long life.

Model meaning: For example: 40PV—SP (SPR)
40—Diameter of pump outlet (mm)
PV—Vertical Bracket
SP—Submerged Slurry Pump
SPR—Submerged Slurry Pump

Product Details:

1. It adopts vertical cantilever type and single pump casing structure.
2. Single suction, semi-open impeller design, using high chrome alloy or rubber impeller.
3. The barrel bearing assembly adopts the design of high-capacity bearing, and the bearing is lubricated with grease.
4. The gap between the impeller and the guard plate can be adjusted to ensure the efficient operation of the pump.
5. No need for any shaft seal.
6. The pump and driver can choose direct drive or V-belt drive.

Application:

SP/SPR submersible centrifugal pumps are widely used in electric power, metallurgy, coal, building materials, chemical industry and other industries. They are mainly used to transport abrasive, coarse particle and high concentration slurry. Concentration: mortar 45%, ore slurry 60%, the pump can be immersed in the pool or pit to work without any shaft seal or shaft seal water.
1. Mining industry: used to transport slurry, tailings and waste residue discharged from coal washing plants.
2. Chemical industry: used to transport corrosive liquids and solid particles.
3. Steel industry: used to transport high-temperature, high-concentration iron ore powder, etc.
4. Electric power industry: used to transport ash, pulverized coal, etc.
5. Environmental protection industry: used to transport sewage, waste water, etc.
6. Suitable for conveying abrasive and corrosive slurry containing solid particles.

Product Configuration:

Model Number	SP(R)
Outlet Size	50-150mm (2-6 inch)
Power	1-45kW
Medium	Ore/Sand/Coal/Slag/Ash/ Slurry,etc
Shaft Seal	Packing seal, mechanical seal

Performance Data:

Model	Power (kW)	Flow (m³/h)	Head (m)	Speed (r/min)	Efficiency η%	Impeller Diameter (mm)	Maximum Particle Size (mm)	Weight (kg)
40PV-SP	1.1-15	7.2-29	4-28.5	1000-2200	40	188	12	300
65QV-SP	3-30	18-113	5-31.5	700-1500	60	280	15	500
100RV-SP	5.5-75	40-289	5-36	500-1200	62	370	32	920
150SV-SP	11-110	108-576	8.5-40	500-1000	52	450	45	1737
200SV-SP	15-110	180-890	6.5-37	400-850	64	520	65	2800
250TV-SP	18.5-200	261-1089	7-33.5	400-750	60	575	65	3700
300TV-SP	22--200	288-1267	6-33	350-700	50	610	65	3940
