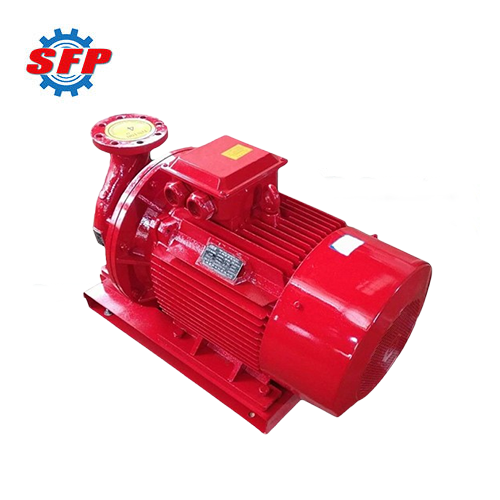

China Factory ISW Horizontal Single Stage Pipeline Centrifugal Pump

Email: sales@shenghuipump.com

Fax: +86-0317-8109918

Tel: +86-0317- 8109958 +86-0317-8109968

Whatsapp & Wechat & Mobile:
+86-15227503158

Add: South 4 # Road, Industrial Park, Botou City , 062150, Hebei Province,China

Mineral Water Bottle Filling Machine

G Series Sludge Screw Pump

ISW Series Horizontal Inline Centrifugal Pump

ISW Series Inline Centrifugal Pump

LPG Gas Transfer Pump for Sale

ZX Self-Priming Centrifugal Pump

Product Description

Summarize:

ISW series horizontal pipeline centrifugal pump is a single-stage single-suction centrifugal pump,a new generation of energy-saving and environmentally friendly centrifugal pumps. It is particularly suitable for conveying clean water, light corrosive liquids, and similar clean water liquids. Its durable construction, efficient operation, and flexible installation options make it a preferred choice for many industrial and commercial settings. This centrifugal pump's motor adopts low-noise bearings, and the impeller has the best static and dynamic balance, so there is no vibration during operation, which improves the environment.

Product Details:

When the motor is started, it will be connected to the impeller of the pump through the shaft, which will drive the impeller to rotate at high speed. The rotation of the impeller creates a low-pressure area where the liquid in the pump body is subjected to negative pressure and enters the pump casing. When the liquid leaves the impeller and enters the pump casing, it slows down due to the gradual expansion of the flow channel inside the pump casing, and part of the kinetic energy is converted into static energy and flows into the discharge pipe along the cutting direction. Finally, the liquid is discharged from the pump body under pressure into the conveying pipe to complete the conveying process.

Application:

ISW series single-stage single-suction centrifugal pump is used for conveying clear water or other liquids with physical and chemical properties similar to clear water. It is suitable for industrial and urban water supply and drainage, high-rise building pressure water supply, garden sprinkling, fire-fighting booster, long-distance transmission, HVAC system cooling circulation, bathroom and other hot and cold water circulation booster.

Feature:

1. Low Failure Rate: Simple and reasonable structure, the key components are made of high quality and durable parts, which greatly improves the trouble-free time of the whole machine.
2. Stable Operation: The static and dynamic balancing of the shaft and impeller have excellent absolute concentricity, ensuring smooth and vibration-free operation.
3. Low Noise: The pump body is supported by two low-noise bearings, running smoothly, almost no noise except for the faint running sound.
4. No Leakage: The use of different materials of hard alloy seals ensures that there is no leakage when conveying different media.

Performance Data:

Model	Capacity (m³/h)	Lift Head (m)	Speed (r/min)	Motor (KW)	Inlet&Outlet Diameter (mm)
15-80	1.1 1.5 2.0	8.5 8 7	2800	0.18	15
20-110	1.8 2.5 3.3	16 15 13.5	2800	0.37	20
20-160	1.8 2.5 3.3	33 32 30	2900	0.75	20
25-110	2.8 4 5.2	16 15 13.5	2900	0.55	25
25-125	2.8 4 5.2	20.6 20 18	2900	0.75	25
25-125A	2.5 3.6 4.6	17 16 14.4	2900	0.55	25
25-160	2.8 4 5.2	33 32 30	2900	1.5	25
25-160A	2.6 3.7 4.9	29 28 26	2900	1.1	25
32-100	4.5	12.5	2900	0.55	32
32-100（I）	4.4 6.3 8.3	13.2 12.5 11.3	2900	0.75	32
32-125	3.5 5 6.5	22 20 18	2900	0.75	32
32-125A	3.1 4.5 5.8	17.6 16 14.4	2900	0.55	32
32-160	6.5	32	2900	1.5	32
32-160A	4	25	2900	1.1	32
32-160(I)	4.4 6.3 8.3	33.2 32 30.2	2900	2.2	32
