ISG Series Inline Centrifugal Pumps
ISG Series Inline Centrifugal Pumps
ISG Vertical Centrifugal Pipeline Pump

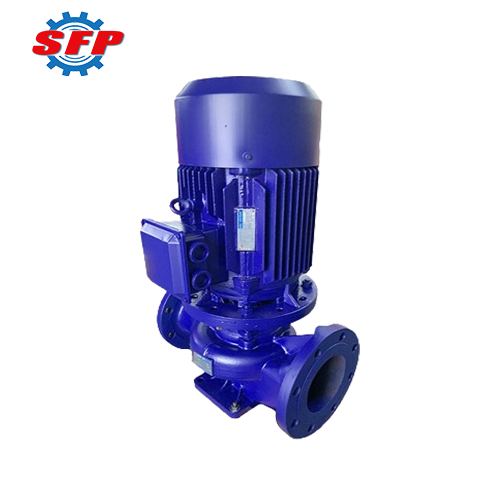

ISG series centrifugal water pump is a single-stage single-suction vertical pipeline centrifugal pump, designed for conveying clear water and other non-corrosive media. Therefore, it can be used in the fields of industrial and urban water supply and drainage, high-rise building pressurized water supply, long-distance transmission, farmland irrigation, cold and warm water circulation pressurization. It has the advantages of high efficiency and energy saving, smooth operation, low noise and high concentricity of parts.
Head Lift: 2-125m
Power:0.18-250kW
Flow Rate: 1.5-1600m3/h
Product Description
Summarize:

ISG series vertical centrifugal pipeline pumps can be used to handle fresh water and media with physicochemical properties similar to fresh water in the fields of farmland irrigation, water supply to high-rise buildings, city drainage, long-distance transportation, etc. The pumps are made of high-quality materials and advanced technology, with good corrosion resistance and wear resistance, long operation and reliable service life. This pump is made of high-quality materials and advanced technology, with good corrosion resistance and wear resistance, stable and reliable operation and long service life.

Product Details:
ISG series vertical centrifugal pump is a single-stage single-suction vertical pipeline centrifugal pump. The series motor adopts low-noise bearings and the impeller adopts the best static and dynamic balance design, thus ensuring that the pump is characterized by low noise and no vibration during operation. Meanwhile, the shaft adopts hard alloy wear-resistant mechanical seal, which solves the problem of serious leakage of packing seal of centrifugal pump, prolongs the service life, and ensures the tidiness of the operation place.
Application:
ISG series vertical centrifugal pipeline pump is used for conveying clear water and other liquids whose physical and chemical properties are similar to those of clear water. It is suitable for industrial and urban water supply and drainage, pressurised water supply for high-rise buildings, garden sprinkler irrigation, fire-fighting pressure, long-distance transmission, refrigeration circulating, bathroom and other cold and warm water circulating pressurised and equipment supporting, the use temperature T ≤ 80 ℃.
Feature:
1. With the features of smooth running, low noise, direct connection structure, balanced impeller performance, no vibration, low noise, prolonging the service life of bearings and improving the working environment.
2. It motor bearings are reasonably configured to effectively balance the radial and axial loads generated by the pump operation, thus ensuring the smooth running of the pump, low vibration and low noise.
3. The pump adopts vertical structure, the caliber of inlet and outlet is the same, and located on the same centerline, compact and beautiful appearance, small footprint, low building investment.
4. Its seal adopts high-quality mechanical seal, the dynamic and static ring adopts hard alloy, wear-resistant, no leakage, long service life.
Performance Data:


Model
Flow Rate

Head(m)


Efficiency(%)


Rev(r/min)


Motor(kW)
(m3/h) (L/S)
15-80 1.5 0.42 8 34 2800 0.18
20-110 2.5 0.69 15 34 2800 0.37
20-160 2.5 0.69 32 25 2900 0.75
25-110 4 1.11 15 42 2900 0.55
25-125 4 1.11 20 36 2900 0.75
25-125A 3.6 1 16 35 2900 0.55
25-160 4 1.11 32 32 2900 1.5
25-160A 3.7 1.03 28 31 2900 1.1
32-100 4.5 12.5 12.5 44 2900 0.55
32-100(I) 6.3 1.75 12.5 54 2900 0.75
32-125 5 1.39 20 44 2900 0.75
32-125A 4.5 1.25 16 43 2900 0.55
32-160 6.5 5 32 44 2900 1.5
32-160A 4 1.1 25 34 2900 1.1
32-160(I) 6.3 1.75 32 40 2900 2.2
32-200 4.5 12.5 50 32 2900 3
