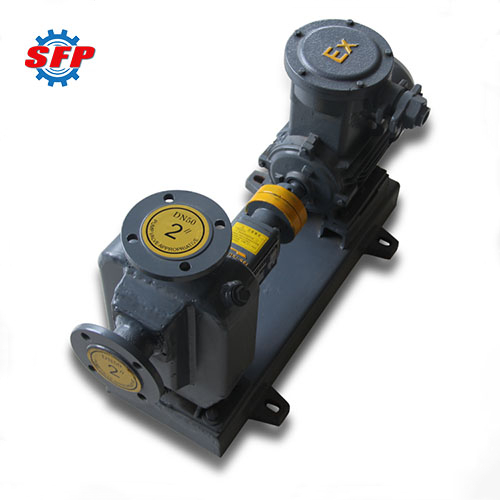

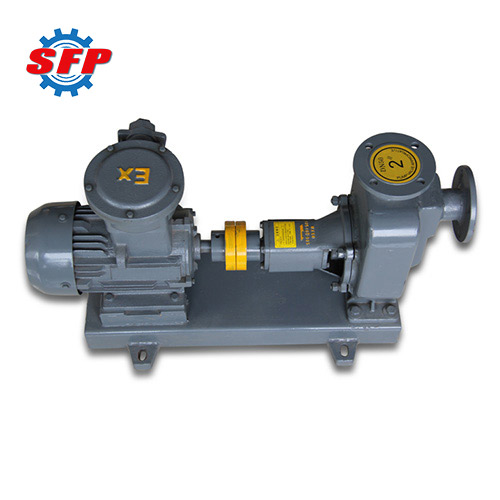

ZW Self Priming Sewage Pump
ZW series self-priming sewage pump is a kind of self-priming sewage can transport solid liquids containing large particles and long fibre impurities, such as soil, sand and gravel, waste mineral impurities and sewage from manure. It is commonly used in farmland, industry, metallurgy, brewing, printing and dyeing, environmental protection, ceramics, oilfield and other industries. This machine has the advantages of high efficiency and energy saving, large displacement, good self-priming performance, no clogging and so on.
Head: 14-80m
Power: 2.2-55kW
Flow Rate: 5-800m³/h
Product Description
Summarize:


ZW series self priming sewage pump belongs to self-priming non-clogging sewage pump, which can be used in pharmacy, printing and dyeing, chemical industry, petroleum, power plant, agriculture and other industries for conveying solid liquids containing large particles and long fiber impurities. At the same time, the product adopts unique open impeller and special impeller anti-clogging design, which can effectively transport sewage containing large solid particles and fiber materials, and has the advantages of not easy to be clogged and highly efficient transport. Therefore, it gradually becomes the best choice for conveying media containing large solid particles.

Product Details:

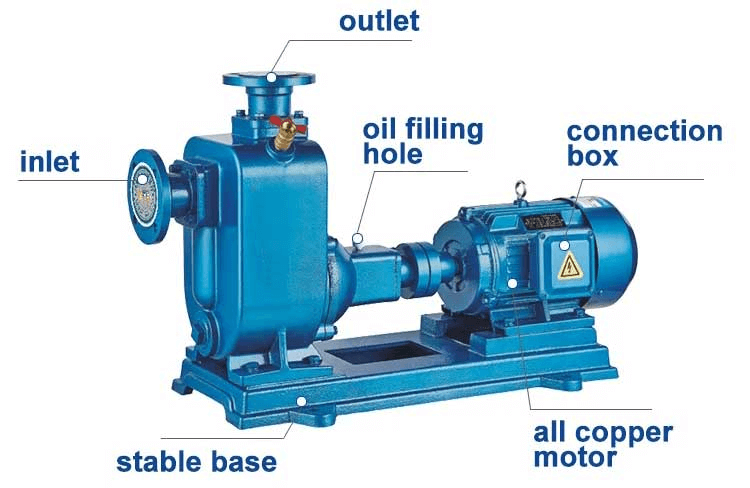

ZW series self priming slurry pump utilizes axial reflux external mixing system. When the pump works, the liquid stored in the pump is discharged from the pump under the action of the impeller, and the gas is discharged from the pump, so that a certain vacuum is formed in the pump. With the continuous rotation of the impeller, the air in the pipeline is continuously discharged, completing the self-priming process, the pump enters into normal operation. Subsequently, the liquid enters into the worm case under the action of centrifugal force, and then discharged through the outlet, while the impeller center forms a low-pressure area, and continuously sucks in new liquid to realize the continuous transmission of liquid.


Application:
This machine is applicable for urban discharge projects, light industry, foodstuff, paper-making, chemicals, petroleum, electric power, agriculture, mining and other industries. It is an optional choice of trash pump at home to handle solid particles, fiber, and paste.
Advantage:
1. The pump shaft concentricity and excellent dynamic balance of the impeller ensure vibration-free pump operation.
2. With excellent self-priming performance, short self-priming time, and no installation required, the pump can be quickly self-primed and put into use.
3. To ensure the smooth conveyance of sewage containing large solid particles, fibrous materials, and various impurities, we have adopted a unique open impeller and impeller anti-clogging design.
Performance Data:
Type Flow
(m³/h)
Lift Head
(m)
Power
(kw)
Rotation Speed(r/min) Cavatation
Allowance(m)
25ZW8-15 8 15 2.2 2900 2.0
32ZW5-20 5 20 2.2 2900 2.5
32ZW10-20 10 20 2.2 2900 2.5
32ZW9-30 9 30 2.2 2900 2.5
40ZW10-20 10 20 2.2 2900 2.5
40ZW15-30 15 30 3 2900 2.5
40ZW20-15 20 15 2.2 2900 2.5
50ZW10-20 10 20 2.2 2900 2.5
50ZW20-12 20 12 2.2 2900 2.5
50ZW15-30 15 30 3 2900 2.5
50ZW20-35 20 35 5.5 2900 2.5
65ZW30-18 30 18 4 1450 2.5
65ZW25-30 25 30 5.5 2900 3.0
65ZW25-40 25 40 7.5 2900 3.0
65ZW40-25 40 25 7.5 2900 3.0
65ZX65-25 65 25 7.5 2900 3.0
80ZW40-16 40 16 4 1450 3.0
80ZW40-25 40 25 7.5 2900 3.0
80ZW65-25 65 25 7.5 2900 5.5
80ZW80-35 80 35 15 2900 5.5
80ZW80-45 80 45 22 2900 5.5
80ZW50-60 50 60 22 2900 5.5
100ZW100-15 100 15 7.5 1450 5.5
100ZW100-20 100 20 11 1450 5.5
100ZW100-30 100 30 22 2900 5.5
100ZW80-60 80 60 37 2900 5.5
I00ZW80-80 80 80 45 2900 5.5
125ZW120-20 120 20 15 1450 5.5
150W200-15 200 15 15 1450 5.5
150ZW200-20 200 20 22 1450 5.5
