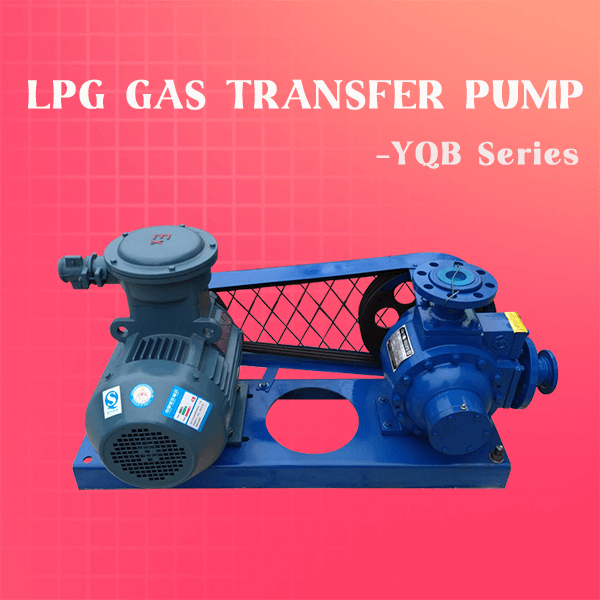

Electric lpg gas transfer pump is often used to deliver various volatile liquids or petroleum products with similar properties, including liquefied petroleum gas, liquid ammonia, propylene, propane, ethylene oxide, methanol and other media. It is particularly suitable for LPG loading and unloading trucks, charging workshops, gas cylinder filling and other workplaces. At the same time, this pump adopts advanced technology and reasonable design, and is highly energy-efficient, which can effectively reduce energy consumption and operating costs.
Product Details:
LPG transfer pump is an advanced positive-displacement vane pump that operates on the principle of centrifugal sliding of the vanes, with the flow rate directly proportional to shaft speed. The stator surface features a composite curved surface design, with mechanical seals at both ends and a sealing ring on each fixed end face. As the rotor rotates, the volume of the suction chamber gradually increases, creating a vacuum that draws in the fuel. When the rotor rotates to a certain angle, the volume gradually decreases, thereby discharging the fuel.
.png)
Application:
LPG gas transfer pumps are mainly used to transport various volatile liquids and petroleum products with similar properties, including liquefied petroleum gas, dimethyl ether, methyl chloride, ethylene oxide, propane, propylene, butadiene, isobutylene, methanol, etc. It is also available for liquefied petroleum gas truck loading and unloading, cylinder filling, workshop gas filling and other operating occasions.
Feature:
1. This pump adopts advanced technology and design, has the characteristics of high efficiency and energy saving, and can effectively reduce energy consumption and operating costs.
2. It is equipped with complete safety protection devices, such as overload protection, leakage protection, etc., to ensure safety and reliability during operation.
3. The operation of the LPG liquefied gas pump is simple and convenient. Just follow the operating instructions and no professional skills are required.
4. Applicable to various LPG filling stations, liquefied gas depots, automobile fuel filling and other places.
Performance Data:
| Model |
Speed
(r.p.m) |
Flow
(m³/h) |
Pressure Difference
(MPa) |
Working Pressure
(MPa) |
Power
(kW) |
Inlet Size
(inch) |
Outlet Size
(inch) |
Temperature Range
(℃) |
| YQB2-5 |
600 |
2 |
0.5 |
1.6 |
1.5 |
1 |
1 |
+40
-40 |
| YQB5-5 |
780 |
5 |
2.2 |
1.2 |
1.2 |
| YQB10-5 |
600 |
10 |
0.5 |
1.6 |
5.5 |
2 |
2 |
+40
-40 |
| YQB15-5 |
780 |
15 |
| YQB15-5A |
780 |
15 |
0.4 |
1.6 |
4 |
2 |
2 |
+40
-40 |
| YQB10-5A |
600 |
10 |
| YQB25-5 |
600 |
25 |
0.5 |
1.6 |
11 |
3 |
3 |
+40
-40 |
| YQB35-5 |
780 |
35 |
| YQB50-5 |
600 |
50 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB60-5 |
780 |
60 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
| YQB80-5 |
780 |
80 |
0.5 |
1.6 |
18.5 |
4 |
4 |
+40
-40 |
