Summarize:

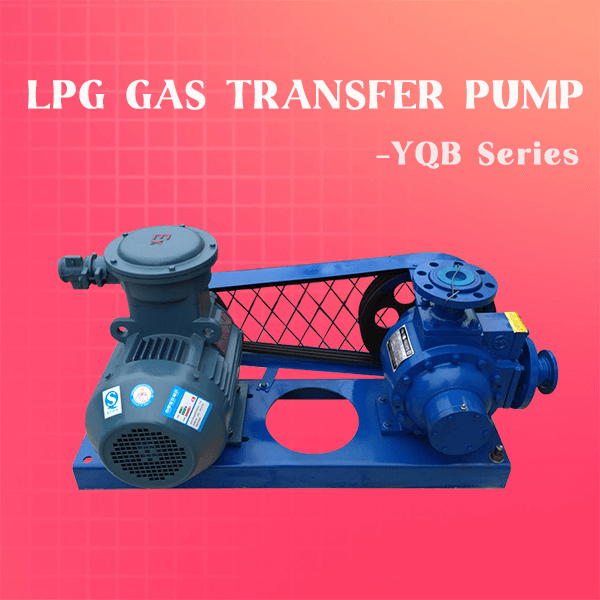

LPG gas transfer pump is a kind of equipment specially used for conveying liquefied petroleum gas and also suitable for conveying corrosive media, including liquid ammonia, propylene, propane, ethylene oxide, methanol. This pump adopts advanced technology and design, has the characteristics of high efficiency and energy saving, and can effectively reduce energy consumption and operating costs. Therefore, it is an ideal equipment for various LPG filling stations, liquefied gas depots, automobile fuel filling and other places.
Product Details:
LPG transfer pump works by centrifugal sliding of the blade, and the flow rate is related to the rotation speed of the shaft. The curved surface is made of the original composite curve, which is composed of a stator and a rotor, a baffle plate and a blade, and the ten sealing cavity is composed of a stator and a rotor. The surface of the stator is a composite curve, when the rotor rotates, the volume of the inlet cavity increases gradually, and the negative pressure is formed. To suck oil into. When the rotor is rotated to a certain angle, the volume section is gradually reduced, thus the oil hydraulic pressure is reduced. Between the oil suction chamber and the pressure oil chamber, an oil block is arranged between the oil suction cavity and the oil pressure cavity. Blade by centrifugal force and two baffle structures. Thus, the surface of the stator is tightly combined with the inner surface of the pump, so that the pump can work normally under the rated condition.
Application:
LPG transfer pumps are mainly used to transport various volatile liquids and petroleum products with similar properties, including liquefied petroleum gas, dimethyl ether, methyl chloride, ethylene oxide, propane, propylene, butadiene, isobutylene, methanol, etc. It is also suitable for liquefied petroleum gas truck loading and unloading, cylinder filling, workshop gas filling and other operating occasions.
Advantage:
1. This pump is simple and convenient to operate, requiring only following the operating instructions.
2. It is particularly suitable for various liquefied petroleum gas filling stations, liquefied gas storage depots, and automobile fuel filling stations.
3. The lpg gas pump adopts advanced technology and design, featuring high efficiency and energy saving, effectively reducing energy consumption and operating costs.
4. The pump is equipped with comprehensive safety protection devices, such as overload protection and leakage protection, ensuring safety and reliability during operation.
Parameter Data:
Model |
Speed
(r.p.m) |
Flow
(m³/h) |
Pressure Difference
(MPa) |
Working Pressure
(MPa) |
Power
(kW) |
Inlet Size
(inch) |
Outlet Size
(inch) |
Temperature Range
(℃) |
YQB2-5 |
600 |
2 |
0.5 |
1.6 |
1.5 |
1 |
1 |
+40
-40 |
YQB5-5 |
780 |
5 |
2.2 |
1.2 |
1.2 |
YQB10-5 |
600 |
10 |
0.5 |
1.6 |
5.5 |
2 |
2 |
+40
-40 |
YQB15-5 |
780 |
15 |
YQB15-5A |
780 |
15 |
0.4 |
1.6 |
4 |
2 |
2 |
+40
-40 |
YQB10-5A |
600 |
10 |
YQB25-5 |
600 |
25 |
0.5 |
1.6 |
11 |
3 |
3 |
+40
-40 |
YQB35-5 |
780 |
35 |
YQB50-5 |
600 |
50 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
YQB60-5 |
780 |
60 |
0.5 |
1.6 |
15 |
4 |
4 |
+40
-40 |
YQB80-5 |
780 |
80 |
0.5 |
1.6 |
18.5 |
4 |
4 |
+40
-40 |
