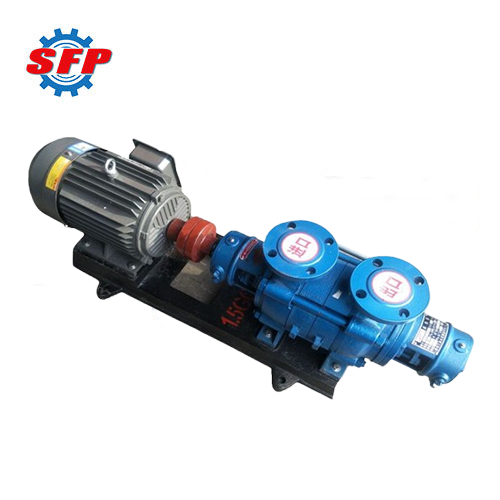

GC series multistage boiler feed pump is a horizontal single-suction multistage sectional centrifugal pump, which is mainly used for boiler feed water, so it is also known as boiler feed water pump. This series of multistage pumps is suitable for conveying clean water with a temperature below 110 °C or other non-corrosive liquids with physical and chemical properties similar to water. It is widely used in boiler feed water and urban living water supply for industrial and mining enterprises.
Model Number | GC |
Outlet Size | 11-21mm |
Voltage | 220V/380V/415V/460V |
Power | 3-110kW |
Medium | Clean Water Liquid |
Max Flow | 45 M3/h |
Type | Capacity (m3/h) | Head (m) | Power (KW) |
1.5GC-5*2 | 6 | 46 | 3 |
1.5GC-5*3 | 6 | 69 | 4 |
1.5GC-5*4 | 6 | 92 | 5.5 |
2GC-5*2 | 10 | 64 | 7.5 |
2GC-5*3 | 10 | 96 | 11 |
2GC-5*4 | 10 | 128 | 15 |
2.5GC-6*2 | 15 | 62 | 7.5 |
20 | 54 | ||
2.5GC-6*3 | 15 | 93 | 11 |
20 | 81 | ||
2.5GC-6*4 | 15 | 124 | 15 |
20 | 108 | ||
4GC-8*2 | 30 | 86 | 22 |
45 | 82 | ||
55 | 76 | ||
4GC-8*3 | 30 | 129 | 30 |
45 | 123 | ||
55 | 144 | ||
4GC-8*4 | 30 | 172 | 45 |
45 | 164 | ||
55 | 152 | ||
5GC-8*2 | 72 | 138 | 55 |
90 | 129 | ||
110 | 120 | ||
5GC-8*2A | 72 | 122 | 55 |
90 | 144 | ||
110 | 106 | ||
5GC-8*2B | 72 | 117 | 45 |
90 | 110 | ||
110 | 102 |
