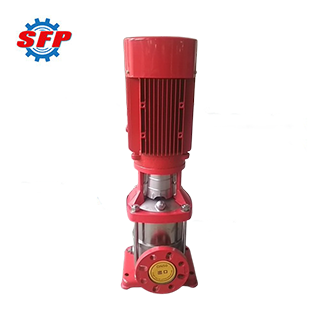

CDL series multistage water pump is a kind of high-efficiency, energy-saving, environmentally friendly vertical multi-stage centrifugal pump, which is available for conveying clear water or liquids with physicochemical properties similar to clear water. Its design concept focuses on energy saving and environmental protection, safety and reliability, and adopts advanced hydraulic model and manufacturing process, thus improving pump performance and efficiency, and energy saving effect is remarkable. Therefore, it can be applied to the fields of water supply, industrial pressurization, water treatment and irrigation.
Product Details:

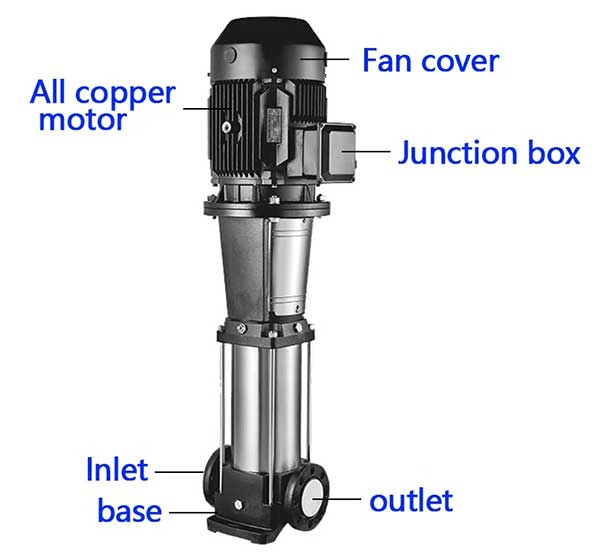

CDL series vertical multistage centrifugal pumps are equipped with new sealing technology and can be easily dismantled with stainless steel casing mechanical seal. The unit is driven by a standard motor with the motor output shaft directly connected to the pump shaft via a coupling. Its pressure-resistant cylinder and runner assembly can be fixed between the pump head and the inlet and outlet sections by solid bolts, and its position needs to be on the same plane at the bottom of the pump. Meanwhile, the pump can be equipped with an intelligent protector, thus effectively preventing dry rotation, phase loss and overload.
Application:
1. Irrigation: Agricultural irrigation, sprinkler irrigation, drip irrigation.
2. Industrial pressurization: process water system, cleaning system, high-pressure flushing system, fire-fighting system.
3. Water Treatment: ultrafiltration system, reverse osmosis system, distillation system, separator and swimming pool water treatment system.
4. Water Supply: water plant filtration and transportation, water plant area water supply, main pipe pressurization, high-rise building pressurization.
Feature:
1. This pump adopts standard motor, and users can easily configure the motor according to their needs.
2. The inlet and outlet of the pump are located at the same level of the pump base, which can be used directly in the pipeline.
3. Adoption of excellent hydraulic model and advanced manufacturing technology greatly improves the performance and service life of the pump.
4. The overflow part of the machine made of stainless steel plate stamping and welding, which makes the pump suitable for mildly corrosive media.
5. Intelligent protector can be configured according to user's need, which can effectively protect the pump from dry rotation, phase loss and overload.
6. Its shaft seal of this machine adopts the mechanical seal made of hard alloy and fluorine rubber, which can improve the reliability of pump operation and the temperature of conveying medium.
Performance Data:
| Model |
Power |
Flow Rate |
1 |
1.2 |
1.6 |
2 |
2.4 |
2.8 |
3.2 |
3.5 |
| (KW) |
(m3/h) |
| CDL2.2 |
0.37 |
H(m) |
18 |
17 |
16 |
15 |
13 |
12 |
10 |
8 |
| CDL2.3 |
0.37 |
H(m) |
27 |
26 |
24 |
22 |
20 |
18 |
15 |
12 |
| CDL2.4 |
0.55 |
H(m) |
36 |
35 |
33 |
30 |
26 |
24 |
20 |
16 |
| CDL2.5 |
0.55 |
H(m) |
45 |
43 |
40 |
37 |
33 |
30 |
24 |
20 |
| CDL2.6 |
0.75 |
H(m) |
53 |
52 |
50 |
45 |
40 |
36 |
30 |
24 |
| CDL2.7 |
0.75 |
H(m) |
63 |
61 |
57 |
52 |
47 |
41 |
35 |
28 |
| CDL2.9 |
1.1 |
H(m) |
80 |
78 |
73 |
67 |
61 |
54 |
45 |
37 |
| CDL2.11 |
1.1 |
H(m) |
98 |
95 |
89 |
82 |
73 |
64 |
54 |
44 |
| CDL2.13 |
1.5 |
H(m) |
116 |
114 |
106 |
98 |
89 |
78 |
65 |
52 |
| CDL2.15 |
1.5 |
H(m) |
134 |
130 |
123 |
112 |
100 |
90 |
73 |
60 |
| CDL2.18 |
2.2 |
H(m) |
161 |
157 |
148 |
136 |
121 |
108 |
91 |
76 |
| CDL2.22 |
2.2 |
H(m) |
197 |
192 |
180 |
165 |
148 |
130 |
110 |
90 |
| CDL2.26 |
2.2 |
H(m) |
232 |
228 |
214 |
198 |
179 |
158 |
130 |
110 |
