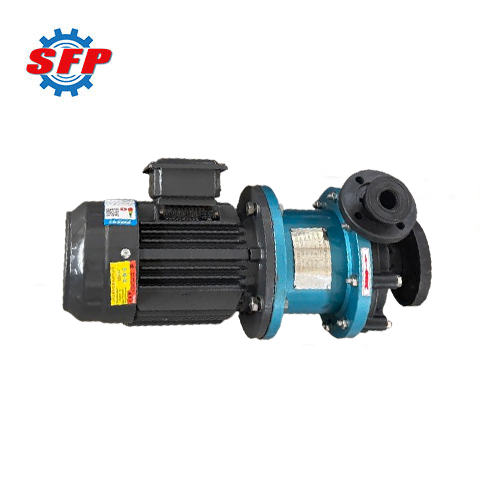

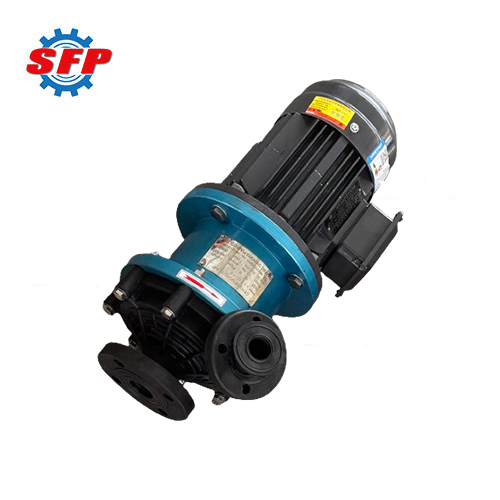

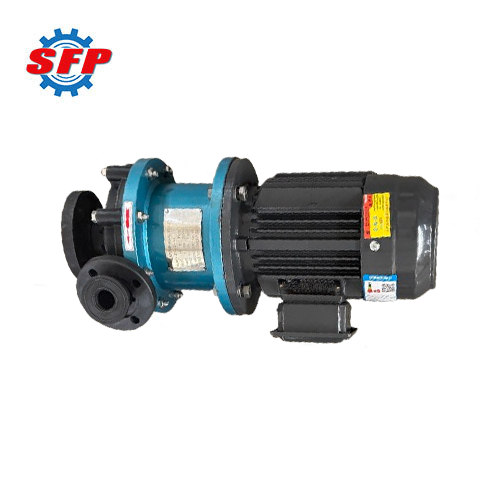

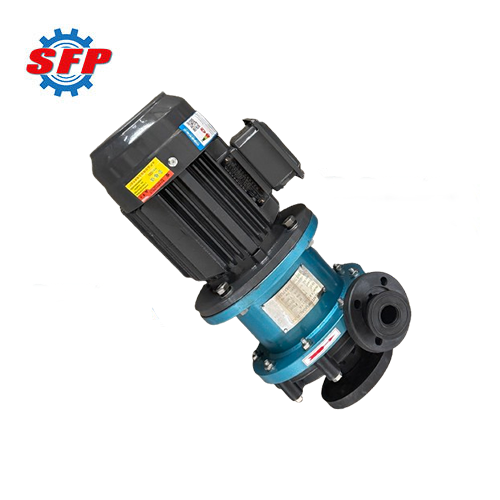

CQ series centrifugal pumps utilize a magnetic coupling to achieve non-contact power transmission, completely eliminating the need for traditional mechanical seals to isolate the fluid inside the pump from the external environment. This prevents seal degradation and fluid leakage when handling flammable, explosive, toxic, hazardous, highly corrosive, and rare or valuable liquids. With minimal vibration, low noise, and excellent corrosion resistance during operation, this equipment is an outstanding choice for industries like pharmaceuticals, food processing, chemicals, petroleum, power generation, and environmental protection.
Product Details:
CQ series magnetic drive pumps utilize an electric motor to drive the outer magnetic rotor, which generates a magnetic field that passes through the isolation sleeve and forms a synchronous magnetic coupling with the inner magnetic rotor, thereby driving the impeller to rotate at high speed. During operation, centrifugal force causes the liquid to move toward the outer edge of the impeller, creating a low-pressure zone at the impeller inlet where liquid is continuously drawn into the pump and simultaneously delivered to the piping system, thereby achieving contactless, synchronous power transmission.
Application:
1. In the biopharmaceutical industry, this series of equipment can handle pesticides and various chemical agents.
2. Within the petrochemical industry, it can be employed to transport organic solvents, additives, and light petroleum products.
3. The metallurgical sector utilizes this equipment for the transport of electrolytes during metal smelting and for the treatment of waste liquids.
4. In the chemical industry, this equipment can handle the circulation of hydrochloric acid, sulfuric acid, salt solutions, and various chemical raw materials.
Feature:
1. It operates with minimal vibration and low noise, offering high conveying efficiency and stability.
2. When conveying flammable, explosive, or other hazardous liquid media, it effectively prevents media leakage to avoid environmental pollution.
3. This equipment does not require traditional shaft seal devices, thereby fundamentally resolving issues such as wear, aging, and leakage associated with mechanical seals.
4. The construction uses corrosion-resistant, high-strength materials such as stainless steel, providing excellent corrosion resistance and thereby extending the equipment’s service life.
Performance Data:
| Type |
Lift Head (m) |
Flow (L/min) |
Motor Power (kW) |
Vltage (V) |
| BCQ-1.2 |
1.2 |
16 |
0.025 |
220 |
| 10CQ-3 |
3 |
19 |
0.025 |
220 |
| 16CQ-8 |
8 |
25 |
0.12 |
380/220 |
| 20CQ-12 |
12 |
50 |
0.37 |
380/220 |
| 25CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-25 |
25 |
110 |
1.5 |
380 |
| 40CQ-20 |
20 |
180 |
2.2 |
380 |
| 50CQ-25 |
25 |
240 |
4 |
380 |
| 16CQ-8 |
8 |
25 |
0.18 |
380/220 |
| 20CQ-12 |
12 |
50 |
0.37 |
380/220 |
| 25CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-15 |
15 |
110 |
1.1 |
380 |
| 32CQ-25 |
25 |
110 |
1.5 |
380 |
| 40CQ-20 |
20 |
180 |
2.2 |
380 |
| 40CQ-40 |
40 |
200 |
4 |
380 |
| 50CQ-25 |
25 |
240 |
4 |
380 |
| 50CQ-40 |
40 |
200 |
4 |
380 |
| 50CQ-50 |
45 |
220 |
5.5 |
380 |
| 65CQ-25 |
25 |
280 |
5.5 |
380 |
| 65CQ-35 |
35 |
450 |
7.5 |
380 |
| 80CQ-35 |
35 |
850 |
11 |
380 |
| 80CQ-50 |
50 |
850 |
15 |
380 |
| 100CQ-32 |
32 |
|
22 |
380 |
| 100CQ-50 |
50 |
|
37 |
380 |
