Automatic Liquid Filling Capping Machine
Automatic Liquid Filling Capping Machine

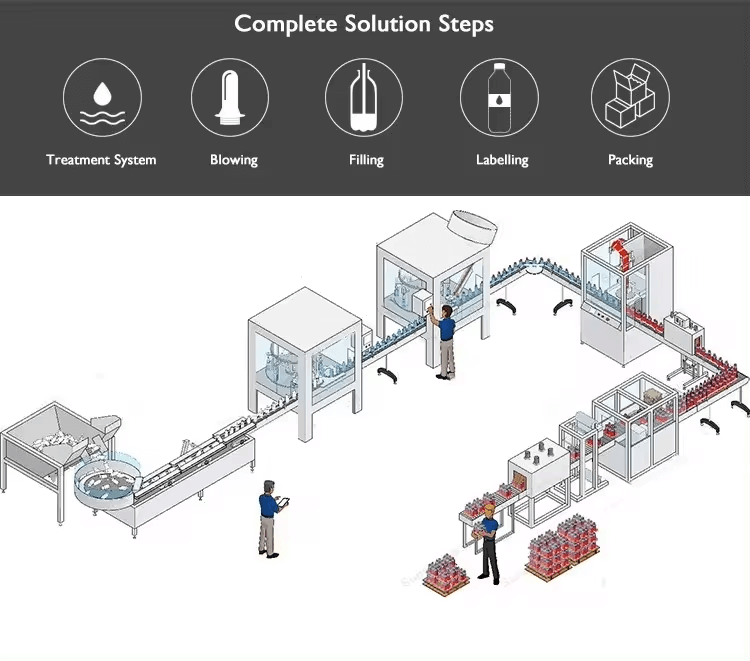

New Design Filling Production Line
Automatic filling production line consists of automatic filling machine, capping machine and labeling machine, which can realize the filling and packaging of various liquids. The production line can be used in beverage, cosmetic, pharmaceutical and other industries.
Filling Accuracy: 99%
Filling Speed: 5-25Bottles/min
Application: Food /Beverage / Chemical /Cosmetic
Product Description
Summarize:

Automatic filling production line is desgiend to automate the entire process of filling, sealing and packaging liquid into bottles. This production line intefrates automatic filling machine, capping machine, labeling machine, which is available for achieving various liquid automatic bottle package. There machiens are widely used in various industries, including food and beverage, pharmaceuticals, cosmetics, and chemicals, to ensure high efficiency, accuracy, and consistency in the production process.



Product Details:
1. Filling System: The filling system can be configured to measure and dispense the product based on volume or weight, depending on the application. The presence of multiple filling heads allows for simultaneous filling of several containers, increasing throughput.
2. Adjustable Parameters: Operators can adjust parameters such as fill volume, speed, and pressure to accommodate different products and container sizes.
3. Sealing System: For jars and bottles, capping and crimping systems securely attach lids and caps. In order to add security and tamper evidence, induction sealing can be used to create a hermetic seal on metal caps.
4. Labeling System: This system applies labels to the containers, ensuring accurate placement and adhesion. The integrated printing and coding systems can apply batch numbers, expiration dates, and other necessary information directly onto the labels or containers.
Advantage:
1. Adapting automatic filling production line significantly increases production speed and reduces cycle times.
2.  Automated processes ensure that each product is filled, sealed, and labeled consistently, reducing the risk of errors and waste.
3. Advanced inspection systems and quality control measures help maintain high standards of product quality and safety.
3. Automation reduces the need for manual labor, leading to cost savings and improved operational efficiency.
4. The production line can be easily reconfigured to handle different products and container sizes, making it adaptable to changing production needs.
Performance Data:
Model RCGF14-12-5 RCGF16-16-5 RCGF24-24-8 RCGF32-32-8 RCGF40-40-12 RGF60-60-15
Capacity(for 500ml) 2000BPH 4000BPH 8000-10000BPH 12000-15000BPH 16000-18000BPH 24000BPH
Suitable Bottle Shapes circular or square
Bottle Diameter(mm) Dia50-Dia115mm
Bottle Height (mm) 160-320mm
Filling Type Overflow filinig type /Hot filling
Rinsing Pressure >0.06Mpa <0.2Mpa
Application Juice / Tea drinks / Milk Beverage
Total Power (KW) 4.4kw 4.4kw 4.4kw 5.2kw 6.2kw 7.8kw
Overall Dimensions 2.3*1.9m 2.5*1.9m 2.8*2.15m 3.1*2.5m 3.8*2.8m 4.5*3.3m
Height 2.3m 2.5m 2.5m 2.5m 2.5m 2.6m
Weight(kg) 3500kg 5200kg 7000kg 9500kg 10500kg 12000kg
