Product Description

Summarize:

Automatic drinking water filling machine is a fully automated machine that integrates rinsing, filling and capping. It is designed to automate the process of filling pure water into various bottles. It is an essential piece of equipment for the beverage industry, ensuring precise and efficient packaging while keeping the water pure and safe. It is widely used by bottled water plants to streamline production processes, reduce production costs and improve productivity.

Product Details:

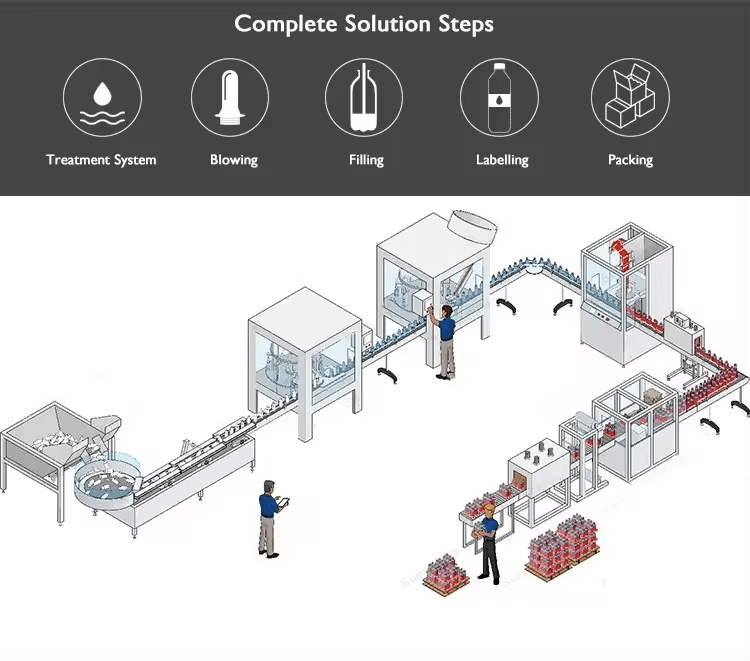

It has a complex and compact structure, but is easy to operate and control. The common operation steps of automatic water filling machine include water treatment → bottle blowing machine → pretreatment/ultra high temperature treatment → filling → labeling → packaging.
1. To prevent contamination of the mineral water to be packaged, clean the hopper and container before turning on this filling machine.
2. Please place the filled bottles, cans or containers under the filling nozzle manually or automatically using the conveyor belt.
3. the machine's sensors will signal the system to start cycling dairy products as soon as the machine recognizes the filled package. Once the machine detects the signal, the valve of the filling nozzle opens and the milk flows out in a steady stream.
4. The machine uses the volume and weight functions to determine if the bottle is full. Once the bottle is full, the system automatically opens the valve and stops the flow. This allows for precise control of the amount needed without any errors or waste.
5. After the liquid is filled into the bottle material, it is capped, labeled and coded. The finished milk will be transferred to the storage space.

Feature:

1. The machine can be applied to all kinds of bottles with different caliber without changing parts.
2. Its body and the part contacting with materials are made of stainless steel.
3. It shortens the production process, improves the working efficiency and is convenient for users to operate.
4. This machine can be produced in a closed environment, characterized by safe production and hygiene.
5. The trinity production line link ensures the continuity and reliability of production.

Performance Data:

Model	SGF12125	SGF18186	SGF24248	SGF323210	SGF404012	SGF505012
Washing, Filling and Capping Heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12
Production Capacity (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000
Motor Power(kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw	11kw
Weight (kg)	2500	3500	4500	6500	8500	9800
