Product Description

Summarize:

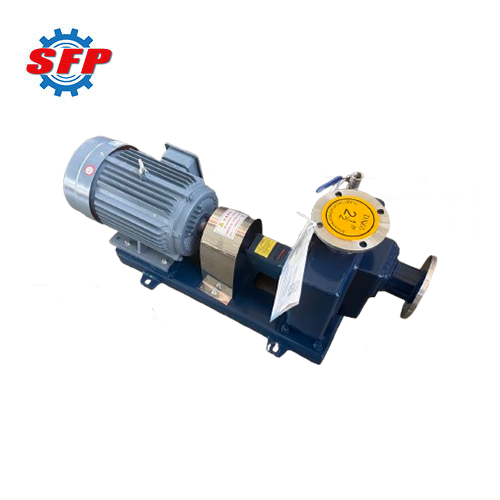

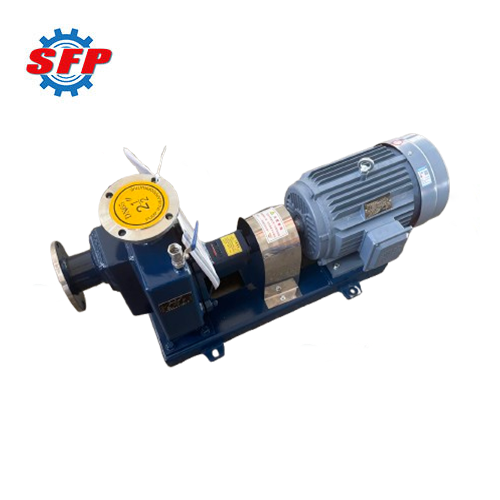

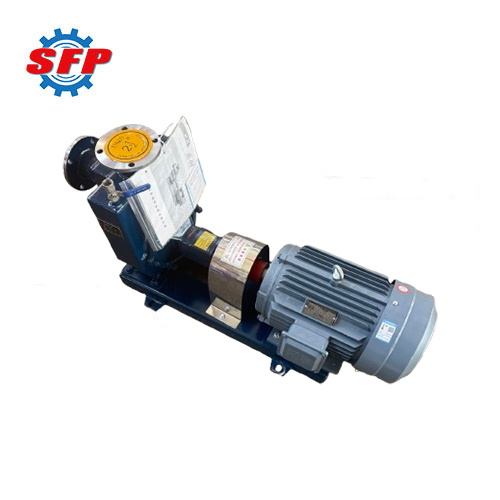

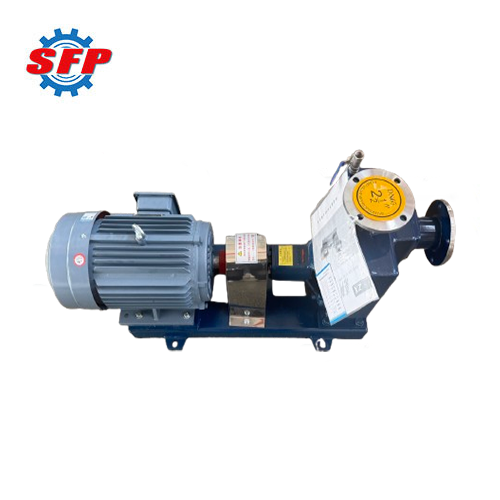

ZX series centrifugal pumps are specifically designed for pumping clean liquids such as fresh water and seawater that do not contain solid particles and are either non-corrosive or generally non-corrosive. Thanks to its self-priming capability, there is no need to fill the pump chamber with liquid before startup. Relying on its structural design, the pump draws in and discharges liquid located below the pump shaft, making it particularly suitable for applications with complex piping or where the liquid level is lower than the pump center. As a result, it has gradually become a trusted pumping solution in industries such as agricultural irrigation, construction, and industrial manufacturing.

Product Details:

ZX series self-priming pumps operate on the principle of gas-liquid mixing and separation. When the liquid medium enters the gas-liquid separation chamber, the gas is discharged through the pump outlet, while the liquid returns to the impeller inlet via the recirculation port to continue mixing with the air inside the pump. As the air within the pump is gradually expelled, creating a local vacuum, the liquid is drawn into the pump, completing the self-priming process and transitioning the pump to its normal centrifugal operation, thereby enabling continuous and stable delivery.

Application:

This machine can pump fresh water, seawater, acidic and alkaline liquids, chemical liquids, and media with a solid content of no more than 30%. It is primarily suitable for industries such as urban environmental protection, construction, chemicals, pharmaceuticals, dyes, printing and dyeing, brewing, power generation, electroplating, papermaking, petroleum, mining, and tanker truck drainage. Furthermore, this machine can be equipped with a swing-arm nozzle to spray water into the air, creating a fine mist, making it a valuable tool for farms, nurseries, orchards, and tea plantations.

Feature:

1. Its flow-through components can be made of materials such as cast iron or stainless steel, depending on the characteristics of the medium being pumped, to meet the required pumping conditions.
2. This equipment features a rear-pull-out design, making maintenance extremely convenient as there is no need to disconnect the inlet and outlet piping during servicing.
3. The mechanical seal is constructed from high-quality, wear- and corrosion-resistant materials, ensuring leak-free operation over the long term.
4. It offers strong self-priming capability, allowing for rapid self-priming without disconnecting the pump’s inlet and outlet piping.

Performance Data:

Type	Flow		Head (m)	Suction (m)	Speed (r/min)	Power (Kw)
Type	m³/h	L/s	Head (m)	Suction (m)	Speed (r/min)	Shaft Power	Motor Power
25ZX3.2-20	3.2	0.9	20	6.5	2900	0.46	0.75
25ZX3.2-32	3.2	0.9	32	6.5	2900	0.8	1.1
40ZX6.3-20	6.3	1.8	20	6.5	2900	0.87	1.1
40ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX15-12	15	4.2	12	6.5	2900	1.1	1.5
50ZX18-20	18	5	20	6.5	2900	1.8	2.2
50ZX12.5-32	12.5	3.5	32	6.5	2900	2.1	3
50ZX20-30	20	5.6	30	6.5	2900	2.6	4
50ZX14-35	14	3.9	35	6.5	2900	2.7	4
50ZX10-40	10	2.8	40	6.5	2900	2.7	4
50ZX12.5-50	12.5	3.5	50	6.5	2900	4.3	5.5
50ZX15-60	15	4.2	60	6.5	2900	6.2	7.5
50ZX20-75	20	5.6	75	6.5	2900	9.8	11
65ZX30-15	30	8.3	15	6.5	2900	1.9	3
65ZX25-32	25	6.9	32	6	2900	4.4	5.5
80ZX35-13	35	9.7	13	6	2900	1.9	3
80ZX43-17	43	12	17	6	2900	3.1	4
80ZX40-22	40	11.1	22	6	2900	4.4	5.5
80ZX50-25	50	13.9	25	6	2900	5.2	7.5
80ZX50-32	50	13.9	32	6	2900	6.8	7.5
80ZX60-55	60	16.7	55	6	2900	15	18.5
80ZX60-70	60	16.7	70	6	2900	20.1	22
100ZX100-20	100	27.8	20	6	2900	7.8	11
100ZX100-40	100	27.8	40	6	2900	16.3	22
100ZX100-65	100	27.8	65	6	2900	27.7	30
100ZX70-75	70	19.4	75	6	2900	24.2	30
150ZX170-55	170	47.2	55	5	2900	39.2	45
150ZX170-65	170	47.2	65	5	2900	46.3	55
150ZX160-80	160	44.4	80	5	2900	53.6	55
200ZX200-32	200	111.1	32	5	1450	52.1	55
200ZX280-63	280	77.8	63	5	1450	73.9	90
200ZX350-65	350	97.2	65	5	1450	97.2	110
250ZX400-32	400	152.8	32	5	1450	72.3	75
250ZX400-50	400	111.1	50	5	1450	80	90
250ZX450-55	450	125	55	5	1450	102.1	110
250ZX500-75	500	111.1	75	5	1450	125.6	132
300ZX500-32	500	166.7	32	5	1450	79.2	90
300ZX500-50	550	138.5	50	5	1450	104.6	110
300ZX550-22	550	152.8	55	5	1450	117.6	132
