Product Description

Summarize:

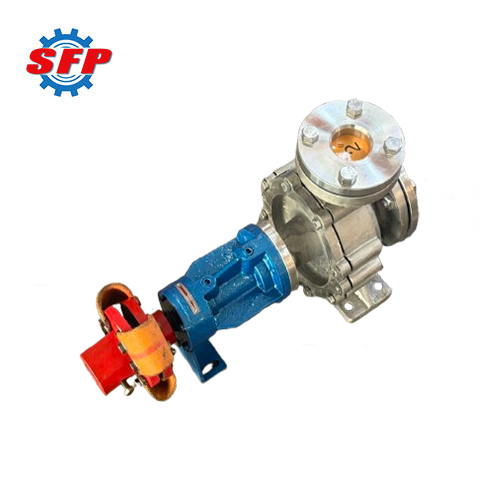

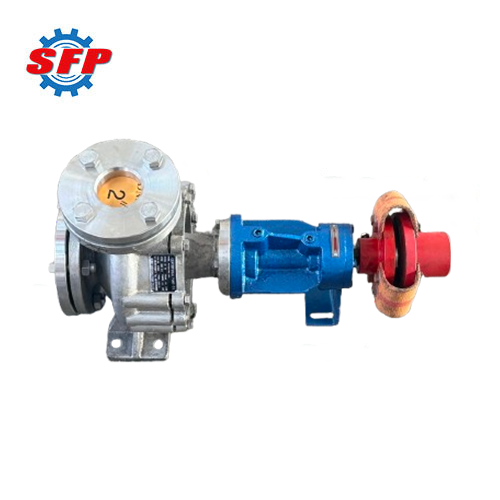

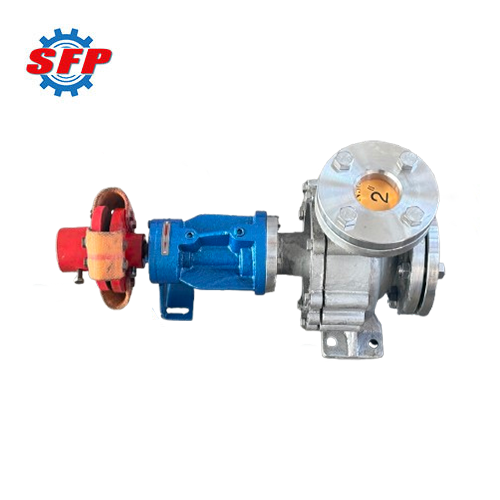

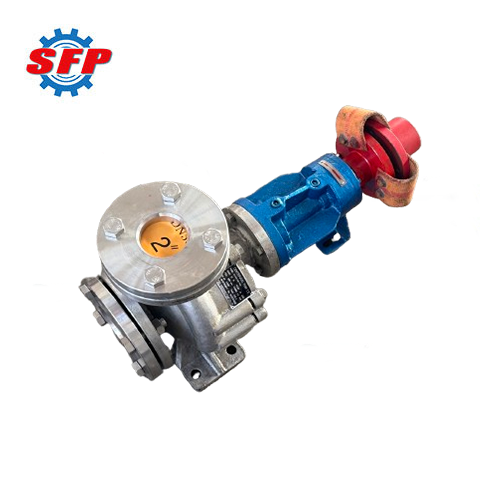

RY hot oil centrifugal pump is a single-stage, single-suction, cantilevered foot-supported centrifugal pump. Requiring no water cooling, it relies on its own air cooling to dissipate heat, enabling continuous transportation of high-temperature thermal oil or other heat transfer fluids without solid particles within a temperature range of -20°C to 350°C. This equipment offers significant advantages including compact design, high efficiency, reliable sealing, low operating costs, and easy maintenance, making it the top choice for industries such as petroleum, chemical, road construction, pharmaceutical, textile, food processing, and woodworking.

Product Details:

RY series centrifugal oil pump is typically driven by an electric motor, they connect to the pump body via a flexible coupling. A flexible spacer coupling can also be installed, allowing the entire pump bracket to be removed from the base plate without disassembling the pump casing or motor. Additionally, the coupling is protected by a guard to prevent damage from external factors.

Application:

RY series thermal oil pump is an ideal choice for transporting high-temperature liquids. Primarily designed for conveying weakly corrosive, solid-particle-free fluids at temperatures ≤350°C, it serves thermal energy transfer systems across diverse industries including petrochemicals, rubber and plastics, pharmaceutical manufacturing, textile printing and dyeing, road construction, food processing, and woodworking.

Feature:

1. It is supported by dual ball bearings, lubricated with oil at the front end and grease at the rear end. An oil guide tube is installed in the middle, allowing real-time observation of seal condition and heat transfer oil recovery status.
2. The single-stage, single-suction cantilevered foot support structure features axial suction and vertical discharge center, and the motor is mounted on the same base, simplifying maintenance and installation.
3. The unit employs a combination of packing seals and mechanical seals to ensure zero leakage operation.

Performance Data:

Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Motor
Model	Q (m³/h)	H (m)	Shaft Power	Efficiency (%)	Rev (r/min)		Power(kw)
20-20-100	1	20	0.09	26		2800	0.75
20-20-125	1.5	22	0.22	30		2800	0.75
25-25-160	3	27	0.53	30		2900	1.5
32-32-160	6	28	0.85	50		2900	1.5
32-32-200	6	50	2.37	45		2900	3.0
40-25-160	10	28	1.72	45		2900	2.2
50-32-160	12.5	30	1.90	57		2900	3
50-32-200	12.5	50	3.78	45		2900	5.5
50-32-200	18	40	3.95	50		2900	5.5
50-32-200A	16	32	3.35	42		2900	4
50-32-250	12.5	80	6.2	44		2900	11
50-32-250	18	70	7.6	45		2900	11
50-32-250A	16	60	6.2	42		2900	7.5
65-50-160	20	32	3.17	55		2900	5.5
65-40-200	25	50	5.87	58		2900	7.5
65-40-200	30	48	6.3	62		2900	7.5
65-40-200A	25	35	4.0	59		2900	5.5
65-40-250	25	80	10.3	53		2900	15
65-40-250A	20	51	5.67	49		2900	7.5
65-40-315	25	125	18.9	45		2900	30
65-40-315A	22.5	100	15.3	40		2900	22
80-50-200	40	52	8.85	64		2900	15
	50	50	9.7	70		2900	15
	60	46	11.0	70		2900	15
80-50-200A	45	40	7.8	63		2900	11
80-50-200B	40	32	6.37	55		2900	7.5
80-50-250	50	80	18.7	58		2900	22
80-50-250	60	72	19.6	60		2900	22
80-50-250A	43	60	12.8	55		2900	18.5
80-50-315	50	125	30.4	56		2900	37
80-50-315A	45	100	23.6	52		2900	30
100-65-200	80	53	16.5	70		2900	22
100-65-200	100	50	18.4	74		2900	22
100-65-200A	94	44	16.00	70		2900	22
100-65-200B	87	38	13.8	65		2900	15
100-65-200C	80	32	11.8	59		2900	15
100-65-250	80	85	28.9	64		2900	37
100-65-250	100	80	32.06	68		2900	37
100-65-250A	95	72	29.00	64		2900	37
100-65-250B	90	65	26.2	61		2900	30
100-65-315	80	130	45	63		2900	75
100-65-315	100	125	50.06	68		2900	75
100-65-315A	95	113	45.23	64		2900	55
125-100-200	200	50	35.40	77		2900	45
125-100-200A	178	40	26.60	73		2900	37
125-100-250	200	70	47.00	80		2900	55
125-100-250A	190	63	41.60	78		2900	55
150-150-200	350	50	60	80		2900	75
