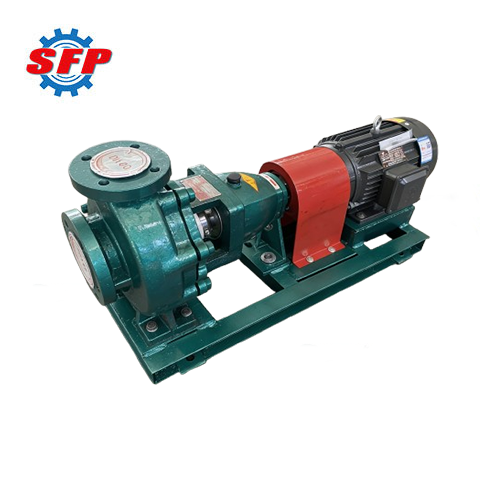

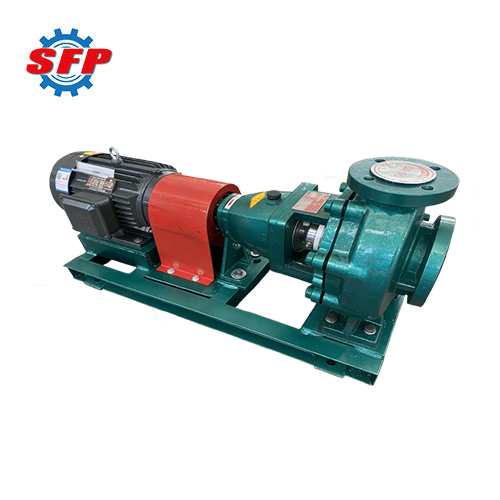

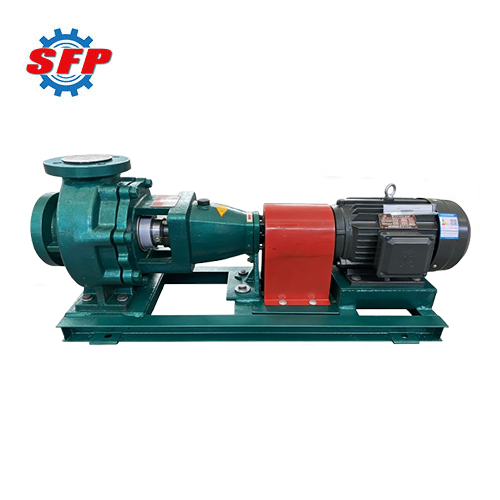

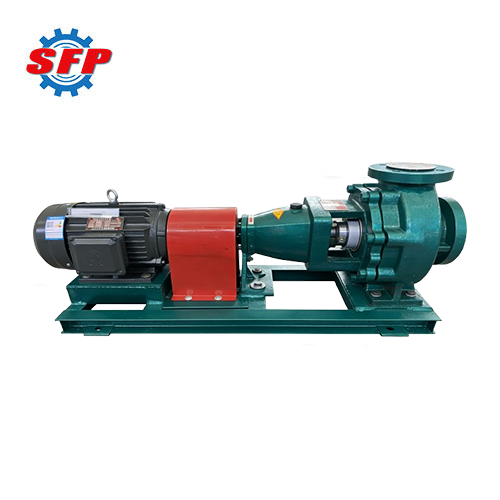

IHF series chemical centrifugal pumps are horizontal, single-stage, single-suction centrifugal pumps specifically designed for conveying highly corrosive media of any concentration. With a structure featuring fluoroplastic lining and a metal casing, these pumps maintain the mechanical strength of metal pumps while offering the superior chemical corrosion resistance of fluoroplastic, making them the preferred equipment for transporting corrosive fluids in industries such as non-ferrous metal smelting, chemical processing, pharmaceutical manufacturing, papermaking, and textiles.
Product Details:
IHF series fluoroplastic centrifugal pumps operate based on centrifugal force, When the motor drives the pump shaft and impeller to high-speed rotation via the coupling, the liquid inside the impeller is flung toward the outer edge under centrifugal force and discharged at high pressure through the outlet. Simultaneously, the expulsion of liquid creates a local vacuum at the impeller's center under atmospheric pressure, continuously drawing liquid from the suction line into the impeller's core. As the impeller rotates, liquid is perpetually drawn in, pressurized, and discharged, enabling continuous and stable fluid conveyance.
Application:
1. Pharmaceutical Industry: Conveys corrosive liquids like pharmaceutical solutions and disinfectants, meeting cleanliness and corrosion resistance requirements for pharmaceutical production.
2. Metallurgical Industry: It is suitable for transferring acid solution conveyance in metallurgical and pickling processes, as well as transporting corrosive media in metallurgical wastewater treatment stages.
3. Chemical Industry: For convyeing highly corrosive chemical raw materials such as sulfuric acid, hydrochloric acid, nitric acid, caustic soda, as well as various organic solvents and acid-base-salt solutions.
4. Environmental Protection Industry: Used for handling acidic and alkaline waste liquids in wastewater treatment and exhaust gas treatment, as well as corrosive fluids in desulfurization and denitrification systems.
5. Other Industries: It is applicable in pesticide, dye, papermaking, food, and other industries for conveying corrosive materials or process fluids, particularly suited for scenarios with stringent leakage control requirements.
Feature:
1. The flow-through components of this equipment are fully lined with fluoroplastic, offering resistance to corrosion from virtually all inorganic acids, organic acids, strong alkalis, strong oxidizing agents, and organic solvents, thereby addressing the corrosion vulnerability inherent in traditional metal pumps.
2. Featuring a rear-opening door structure, wear-prone components such as impellers and seals can be replaced without disassembling the pump body or piping, significantly improving maintenance efficiency and lowering long-term operational costs.
3. To effectively reduce energy consumption during operation, the equipment employs an advanced hydraulic model design with low fluid resistance, achieving approximately 13% higher efficiency than conventional corrosion-resistant pumps.
4. Its pump body features a composite structure with a metal shell lined with fluoroplastic, eliminating the issues of insufficient strength and deformation common in all-plastic pumps while ensuring long-term stable operation.
Performance Data:
| Type |
Inlet
(mm) |
Out Let
(mm) |
Motor Power
(KW) |
Flow
(m³/h) |
Head
(m) |
| IHF50-32-125 |
50 |
32 |
2.2 |
12.5 |
20 |
| IHF50-32-125A |
50 |
32 |
1.5 |
11 |
16 |
| IHF50-32-160 |
50 |
32 |
4 |
12.5 |
32 |
| IHF50-32-160A |
50 |
32 |
3 |
11.7 |
28 |
| IHF50-32-200 |
50 |
32 |
7.5 |
12.5 |
50 |
| IHF50-32-200A |
50 |
32 |
5.5 |
11.7 |
44 |
| IHF65-50-125 |
65 |
50 |
3 |
25 |
20 |
| IHF65-50-125A |
65 |
50 |
2.2 |
22.3 |
16 |
| IHF65-50-160 |
65 |
50 |
5.5 |
25 |
32 |
| IHF65-50-160A |
65 |
50 |
4 |
23.4 |
28 |
| IHF65-40-200 |
65 |
40 |
11 |
25 |
50 |
| IHF65-40-200A |
65 |
40 |
7.5 |
23.4 |
44 |
| IHF80-65-125 |
80 |
65 |
5.5 |
50 |
20 |
| IHF80-65-125A |
80 |
65 |
4 |
45 |
16 |
