Product Description

Summarize:

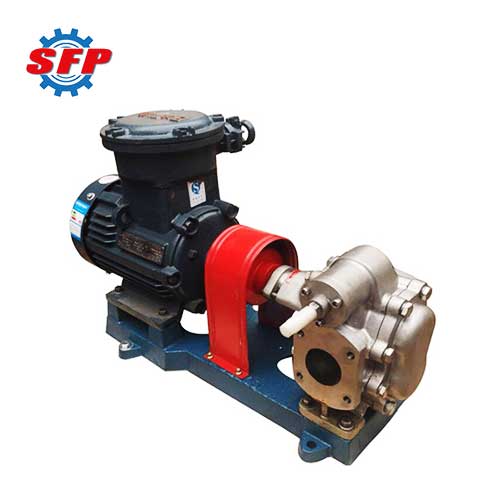

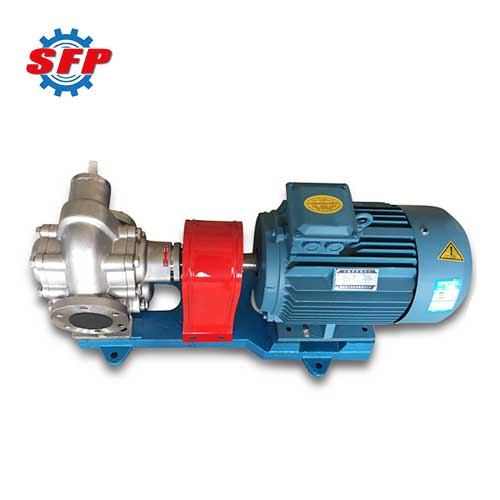

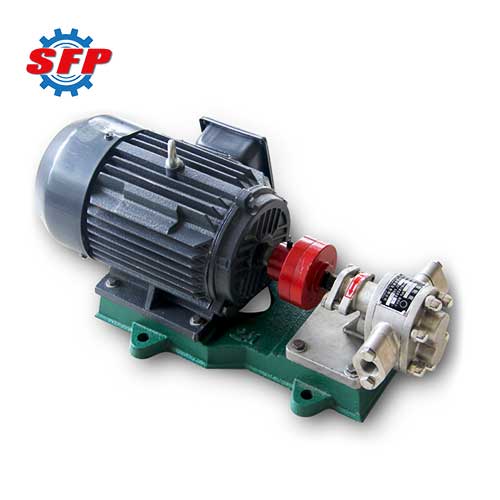

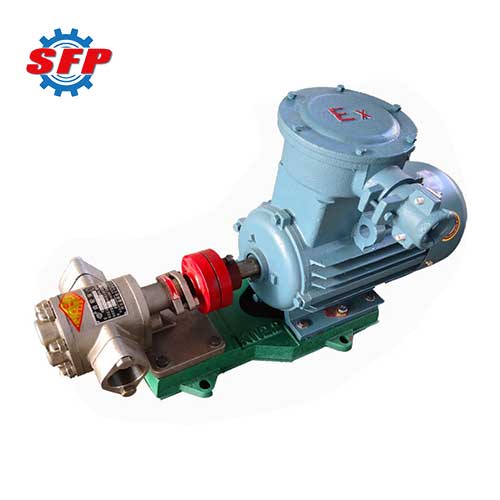

KCB series cooking oil transfer pump have safety valve as protection of overload.
Safety valve's return flow pressure is 1.5 times higher than pump's rated exhaust pressure. Also can adjust within the allowance according to actual requirement. But please note the safety valve can not be used as pressure reducing valve working for long time. Can separately install pressure reducing valve if it is needed.

All the parts in the pump will automatic reach lubrication by transferring medium when pump working.
There are properly designed unloading groove and return chute in pump, which makes the gear bear the least torque force and therefor reduce the load of bearings and wear, pump's efficiency raised.

cooking oil pump for sale

Generally used in:

Cooking oil transfer pumps are mainly used to transport palm oil,olive oil,soybean oil,peanut oil,sunflower oil,corn oil,sesame oil,vegetable oil etc.

Performance Data:

Model	Flow (L/min)	Presure (Mpa)	Port Size (mm)	NPSHr (m)	Motor Power (kw)
KCB18.3	18.3	1.45	20	5	1.5
KCB33.3	33.3	1.45	20	5	2.2
KCB55	55	0.33	25	7	1.5
KCB83.3	83.3	0.33	40	7	2.2
KCB135	135	0.33	50	5	2.2
KCB200	200	0.33	50	5	4
KCB300	300	0.36	70	5	5.5
KCB483.3	483.3	0.36	70	5.5	7.5
KCB633	633	0.28	100	6	11
KCB960	960	0.28	100	5.5	18.5
KCB1200	1200	0.6	150	7	37
KCB1600	1600	0.6	150	7	45
KCB1800	1800	0.6	150	7.5	55
KCB2500	2500	0.6	200	7.5	75
KCB2850	2850	0.6	250	8	90
KCB3800	3800	0.6	250	8	110
KCB4100	4100	0.6	..	8	132
KCB5400	5400	0.6		8	160
KCB5600	5600	0.6		8	160
KCB7600	7600	0.6		8	200
KCB7000	7000	0.6		8	185
KCB9600	9600	0.6		8	250
KCB13000	13000	0.6		8	315
KCB16000	16000	0.6		8	400
