NYP series internal gear pumps are mainly composed of internal rotor, outside rotor, shaft, pump body, front cover,bracket, seal, bearing etc. We adopting packing seal or mechanical seal in the pumps' seal. When the handling medium is high temperature, high viscosity or strong corrosion, packing seal is adopted. When the handling medium easy become crystal, we can design the heat preservation jacket in pump body and front cover in order to melt the medium with steam when working. The pump can be also fitted with the safety valve.The pump set is composed of the pump, motor and base plate. The driving way is belt wheel driving or coupling driving.

Uzbekistan Customer Orders - A Batch of Gear Pump, Centrifugal Pump

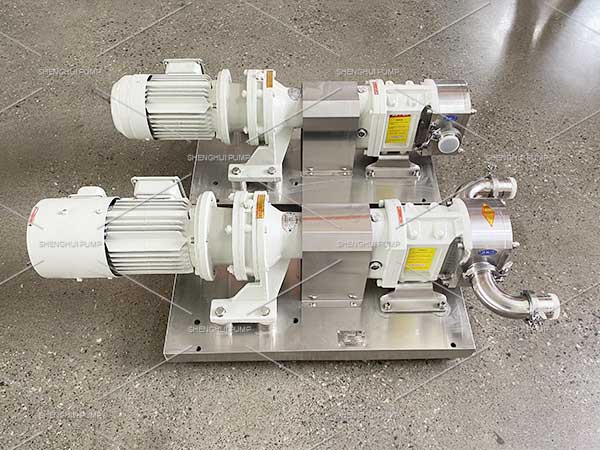

Application Standard: Sanitary Grade for Food, Medical, Pharmaceutical / Corrosion Resistant Grade for Chemical Purpose
Structure Difference: High Pressure/High Viscosity, High Pressure/Low Viscosity.
The core components and sealing devices of the pump are designed according to different characteristics of different fluid, using different materials and sealing types, which improves the professional conveying performance of the product.

Application Standard: Sanitary Grade for Food, Medical, Pharmaceutical / Corrosion Resistant Grade for Chemical Purpose
Structure Difference: High Pressure/High Viscosity, High Pressure/Low Viscosity.
The core components and sealing devices of the pump are designed according to different characteristics of different fluid, using different materials and sealing types, which improves the professional conveying performance of the product.

KCB series fuel oil transfer pump are mainly composed by gear, shaft, pump body, safety valve, shaft end seal etc. Gear after heat treatment have higher hardness and strength, and together with the shaft installed in the replaceable sleeve to operate. It applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibers at temperature below 300℃ and with the viscosity of 5×10-6 ~1.5×10﹣³ m²/s(5－1500cSt) Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 5×10⁴cst.

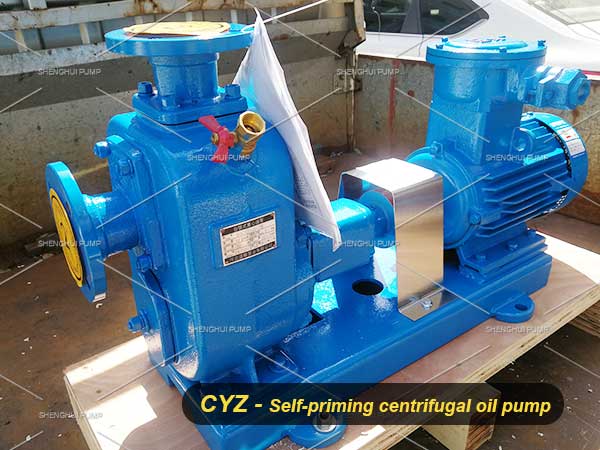

CYZ self-priming centrifugal oil pump is an ideal product applicable for the petroleum industry, land oil house and oil tanker, and also suitable as the cargo oil pump, bilge pump, fire pump and ballast pump for ship, and for cooling water circulation of the machine and so on, to respectively transport oil products like gas, kerosene diesel oil, etc. and the medium of temperature with -20℃~ 80℃ .to transport the chemical liquid, it should use the corrosion-resistance mechanical seal instead.
