Which Structural Designs of the WCB Gear Pump can Extend Its Service Life?
2025-12-17 15:45:47
Read:
Share:

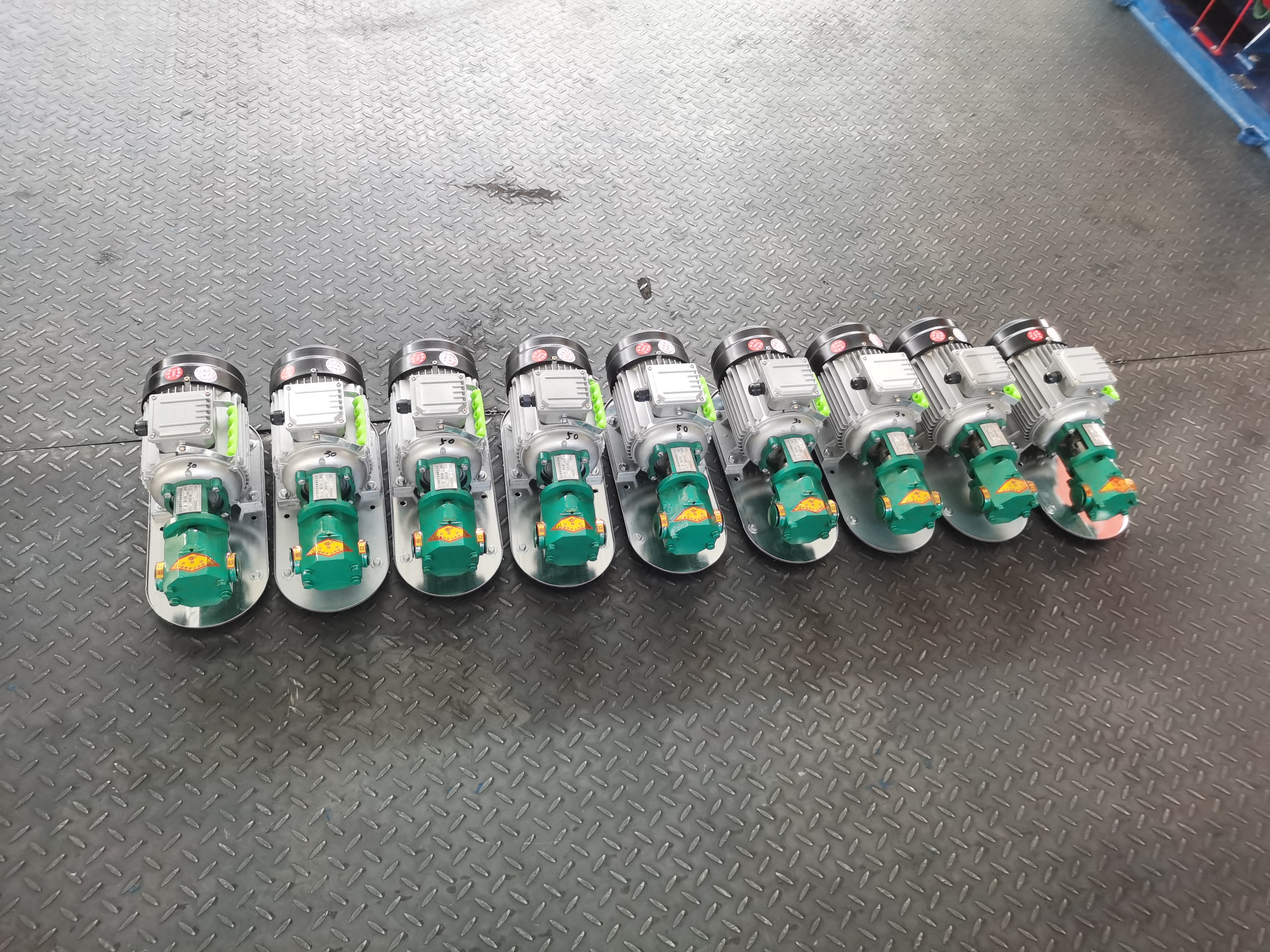

WCB portable gear pumps are frequently employed in fluid transfer across various industrial sectors due to their equipment reliability and stable performance. To further extend their service life, the equipment incorporates distinct structural design techniques, enabling long-term continuous and efficient operation under diverse working conditions. WCB series gear oil pumps feature a precision pressure-balancing groove design, incorporating specially shaped grooves machined into the pump cover or side plates. This design precisely and controllably directs high-pressure oil from the outlet to the low-pressure zone at the gear end faces, thereby counteracting most axial thrust. Additionally, the rear side plates adaptively press against the gear end faces with optimal contact force, automatically compensating for minor wear while preventing excessive clamping that could cause friction. These structural features minimize end-face wear, ensuring the pump maintains high volumetric efficiency even after thousands of operating hours. This significantly extends the equipment's service life.
To effectively reduce pressure per unit area, this equipment increases the bearing's load-bearing surface, resulting in smoother operation and enhanced resistance to off-center loads. Moreover, the pump housing incorporates a dedicated low-pressure lubrication circuit, ensuring that under any operating conditions, sufficient, clean, and temperature-controlled oil is directly delivered to the bearing friction surfaces to form a reliable lubricating film. This significantly reduces bearing wear rates and temperature rise, substantially extending the pump's overhaul intervals and laying the foundation for long-term stable operation.
During gear meshing, the “oil trapping phenomenon” inevitably occurs, causing localized pressure to surge and drop abruptly. This triggers vibration, noise, and cavitation, and prolonged exposure accelerates fatigue damage to gears and bearings. To prevent this phenomenon, we incorporate precisely calculated relief grooves at specific locations on the bearing housing or side plates. These grooves release trapped oil pressure in the smoothest manner possible. In addition, we meticulously modify the gear tooth profiles to enhance hydrodynamic characteristics during meshing, effectively preventing oil trapping. Furthermore, WCB series oil pumps incorporate a shaft seal pressure relief protection system to safeguard equipment, significantly extending shaft seal lifespan and effectively reducing unplanned downtime. On one hand, a spiral seal or throttling sleeve is positioned on the inner side of the main shaft seal as a primary barrier. On the other hand, specially designed relief ports safely redirect any barrier leakage back to the low-pressure zone. WCB gear oil pumps effectively extend equipment service life by reducing end-face wear, increasing bearing load-bearing area, and employing precision gear manufacturing techniques. This enables them to deliver continuous, reliable, and long-lasting performance in demanding industrial environments.
