IHF Series Fluorine Plastic Centrifugal Pump Help Handle Corrosive Liquids
2025-01-15 15:46:31
Read:
Share:

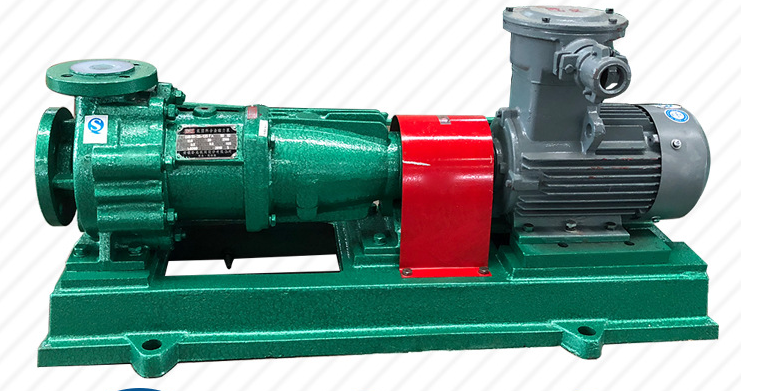

IHF fluoroplastic centrifugal pump is a kind of single-stage single-suction centrifugal pump, which is one of the latest corrosion-resistant equipment in Shenghui pump industry. It is widely used in metallurgy, chemical industry, petroleum, pesticide, electric power, pharmacy, electroplating and other industries in electrolyte transportation, wastewater treatment and feeding and other processes.
IHF series fluorine plastic centrifugal pump can be used for long-term conveying of strong corrosive media with any concentration of sulfuric acid, hydrochloric acid, acetic acid, nitric acid, fluorine water, strong alkali, strong oxidizing agent, organic solvents, reducing agent and other harsh conditions under the temperature condition of -85℃～200℃. It has the advantages of corrosion resistance, high temperature resistance, high mechanical strength, strict sealing performance, stable work. Low noise, long service life and other advantages, therefore, chemical, metallurgy, pesticides, pharmaceuticals, printing and dyeing, papermaking and other industries have a wide range of applications. IHF series chemical centrifugal pump adopts centrifugal design, which generates centrifugal force through the rotation of the impeller and pushes the liquid to the outlet pipe to realize high efficiency liquid transportation. In order to effectively prevent the leakage of the pump body and ensure the safety of the pump, the pump adopts a new combination of mechanical seal and packing seal.
This pump is designed and produced in accordance with international standards, the pump body is made of metal shell lined with polyperfluoroethylene propylene, and the pump cover, impeller and shaft sleeve are sintered and pressed into shape with metal inserts outsourced with fluorine plastic as a whole. Among them, the fluorine plastic material has outstanding acid and alkali resistance, oxidation resistance and other properties, which can easily cope with various corrosive media and prolong the service life of the pump. At the same time, the shaft seal adopts external bellows mechanical seal, static ring using 99.99% alumina ceramics or silicon nitride dynamic ring with PTFE filling material. Therefore, the pump has excellent corrosion and abrasion resistance as well as excellent sealing. In order to enhance the pressure resistance of the pump, the pump inlet and outlet are reinforced with cast steel body.
The design of IHF fluoroplastic centrifugal pump focuses on high efficiency and energy saving, corrosion resistance, high temperature resistance, high mechanical strength and reliable sealing performance, which makes it an ideal choice for conveying corrosive media in many industries.
