How Does the 2CY Gear Pump Achieve Stable High-Pressure Delivery?
2026-03-04 15:50:45
Read:
Share:
In fuel transfer, industrial lubrication, and hydraulic systems, the 2CY series gear pump achieves stable high-pressure delivery through integrated solutions for clearance compensation, seal protection, and safety regulation. It primarily consists of nitrided high-hardness wear-resistant gears, bearing sleeves, and seals. The pump body, together with the front and rear pump covers, forms a sealed working chamber, a critical factor for stable high-pressure delivery.
Based on its operating principle, the device relies on a pair of meshing gears that form sealed chambers during rotation, utilizing changes in chamber volume to achieve suction and discharge. This mechanism ensures minimal flow pulsation throughout the delivery process, high volumetric efficiency, and reduced susceptibility to outlet pressure fluctuations, thereby guaranteeing continuous high-pressure output. As a result, during the pressure ramp-up from low to rated high pressure, the flow rate changes very gradually, maintaining stable output pressure with minimal pulsation, making it particularly suitable for applications requiring stable oil supply, such as lubrication systems for large machinery or fuel supply systems for oil burners.
Generally, in high-pressure conditions, the clearance between the gear cross-section and the pump cover in ordinary gear pumps is prone to being forced open by pressure, leading to a sharp increase in leakage and an inability to maintain pressure.2CY gear oil pump features a floating bearing sleeve design, allowing automatic position adjustment during operation based on outlet pressure, the higher the pressure, the tighter the fit against the gear end faces, achieving automatic clearance compensation. This design fundamentally reduces leakage pathways for media at high pressure, laying the foundation for stable high-pressure delivery.
To maintain a more stable operating state during operation, the moving components of the this pump, such as gears and shafts, undergo rigorous nitriding treatment. While severe wear in conventional equipment during operation can significantly reduce delivery efficiency and stability, this device's nitriding design specifically addresses this issue. This nitriding process ensures the gear surfaces achieve exceptional hardness while maintaining excellent toughness, enabling the gears to resist wear and deformation even under prolonged high-speed, high-torque operating conditions, which guarantees sustained precision in meshing accuracy.
During the transportation of lubricating oil within a ship's lubrication system, excessive pressure fluctuations can compromise lubrication effectiveness and even lead to mechanical failures. However, this equipment maintains stable pressure output under prolonged ship motion and fluctuating operating conditions, thanks to the dynamic sealing of its floating bearing sleeves and the wear resistance of its nitrided gears. Therefore, when conveying high-viscosity media like heavy oil and residual oil in petrochemical applications, this pump delivers efficient and stable performance through its robust construction and self-lubricating properties.

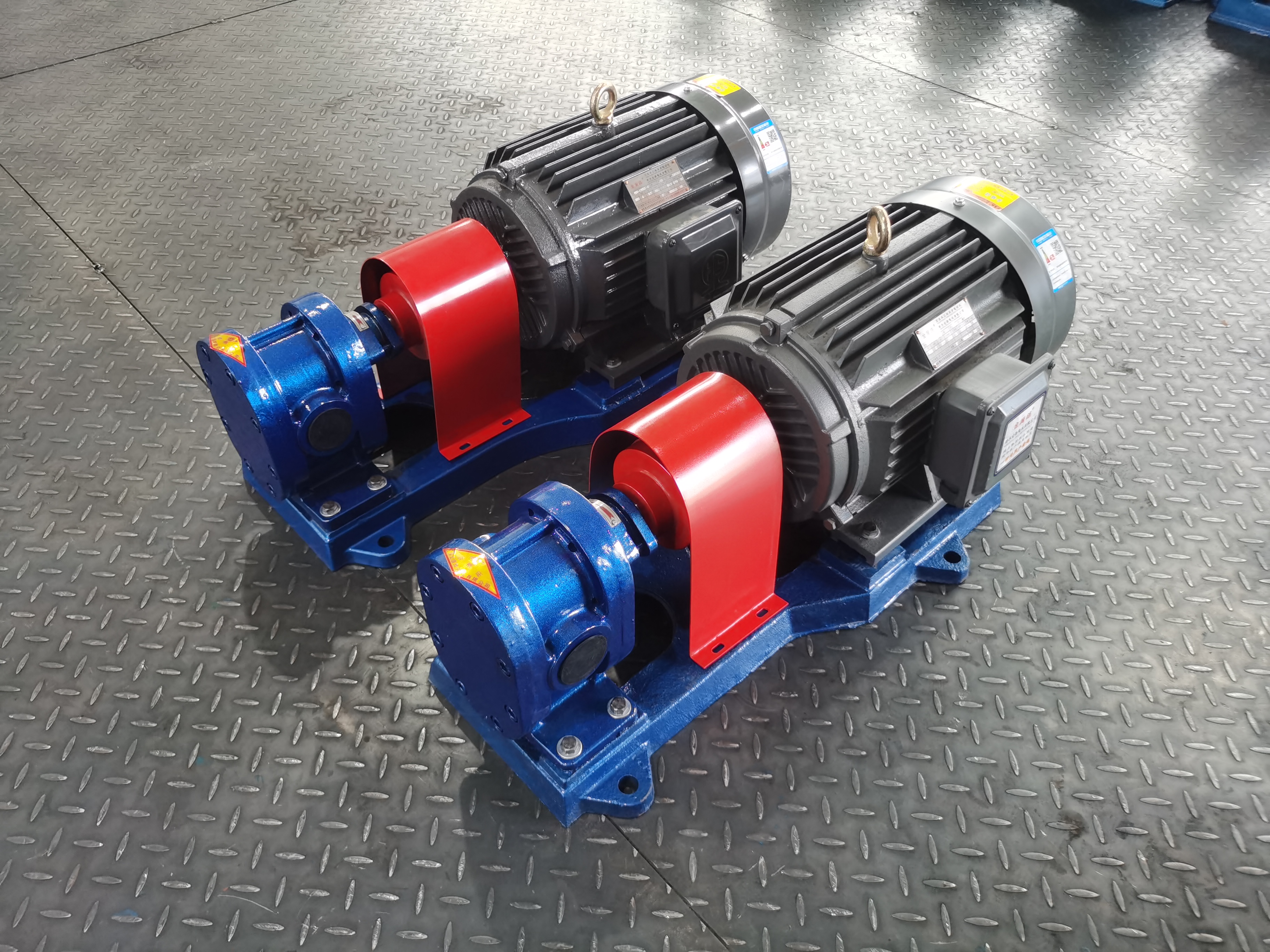

The stable high-pressure delivery capability of 2CY horizontal gear pumps stems from gap compensation, the wear resistance of nitrided gears, and the reliability of self-lubricating media. These designs enable this pump to maintain steady output even when handling high-viscosity media and operating under high-pressure conditions, making them a trusted solution in industrial lubrication and oil transfer systems.
